The price is only for the Led Strip, and does not include the Power Supply or Led Controller!
WS2812B/TX1812 must use a DC5V Power Supply AND an Led Controller to control!
Please note: Every 0.5 meters comes with solder joints.

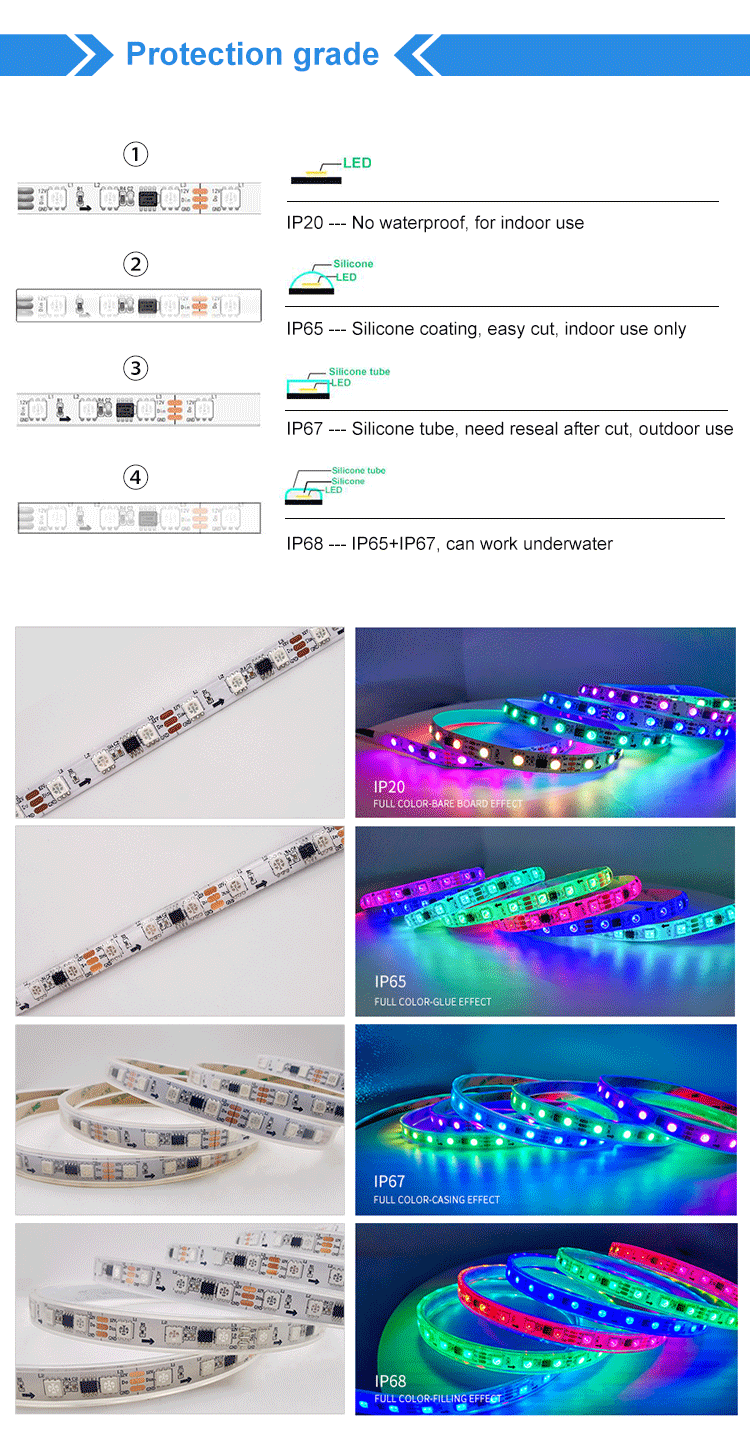

Waterproof Ratings:
• IP20: Non-waterproof
• IP65: Waterproof in Silicon Coating
• IP67: Waterproof in Silicon Tube
*Each strip includes one free connector.

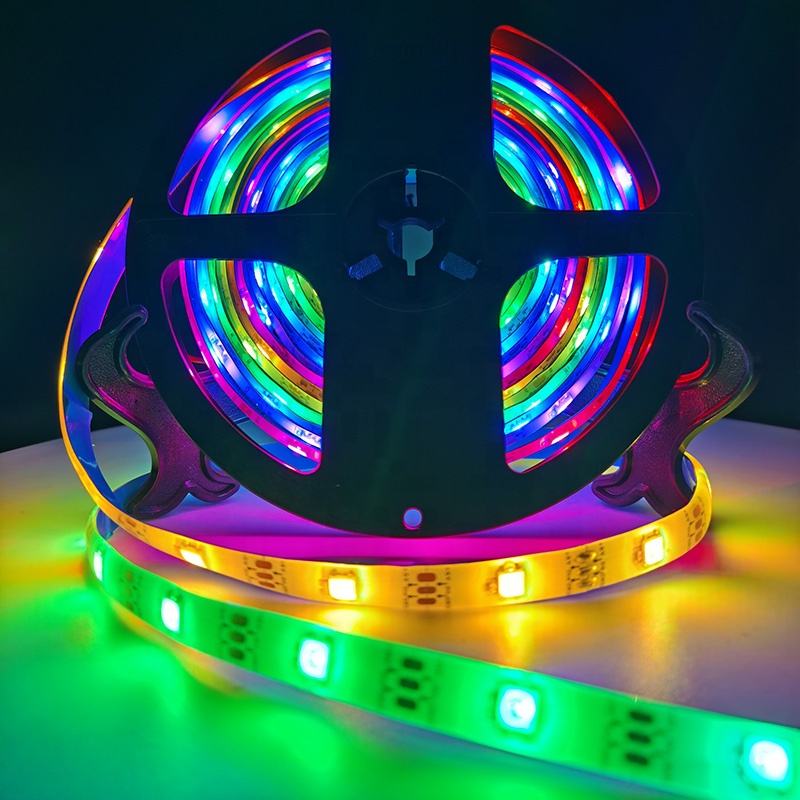

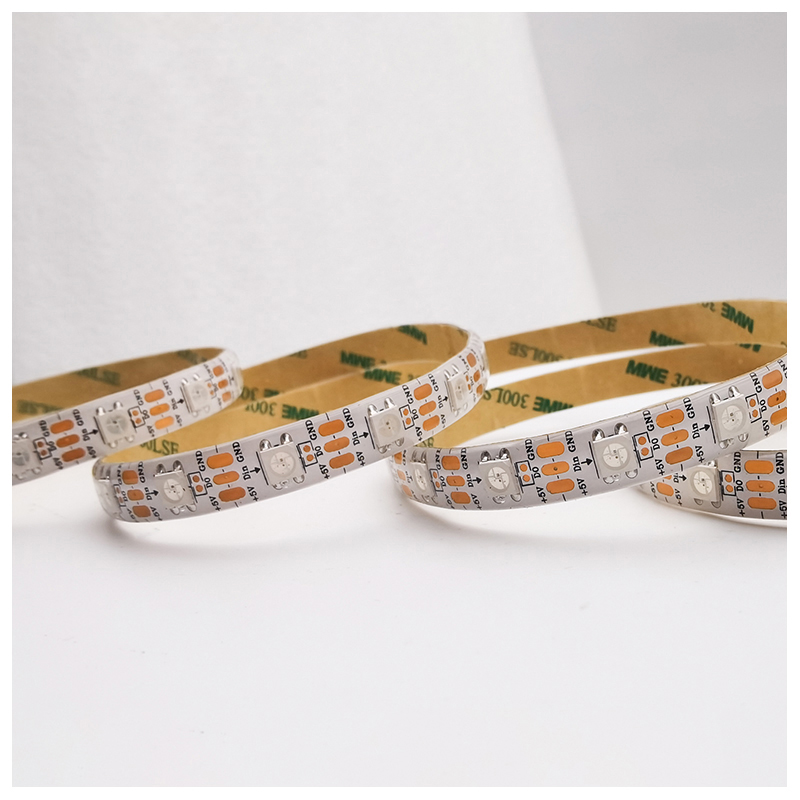

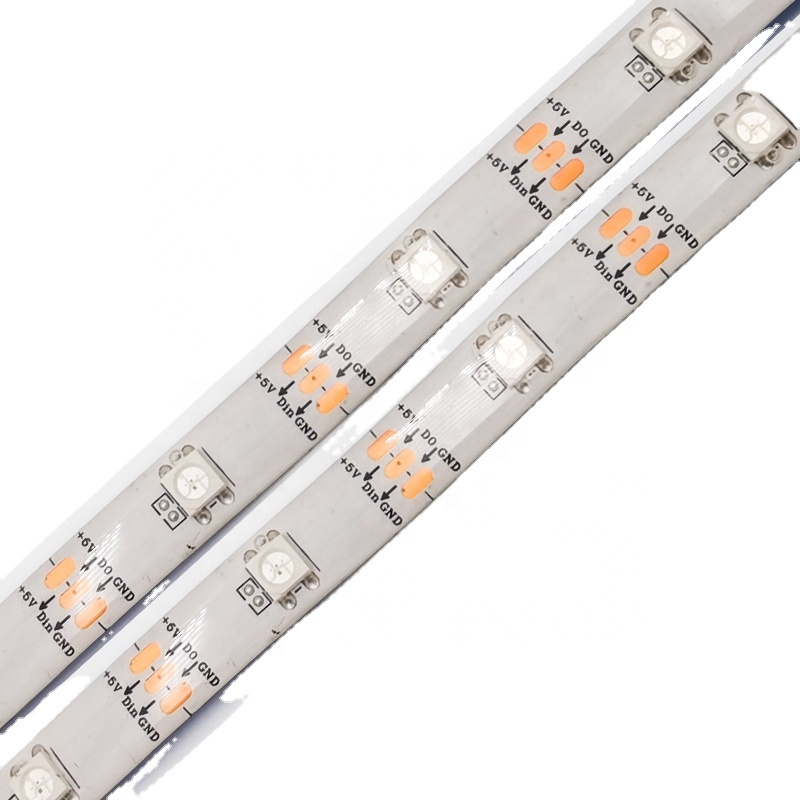

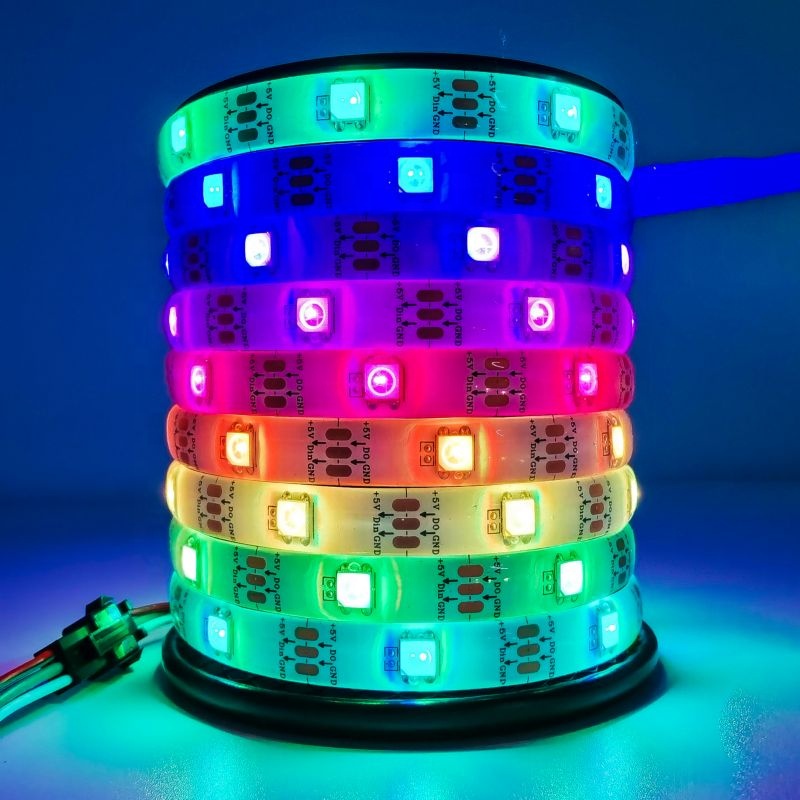

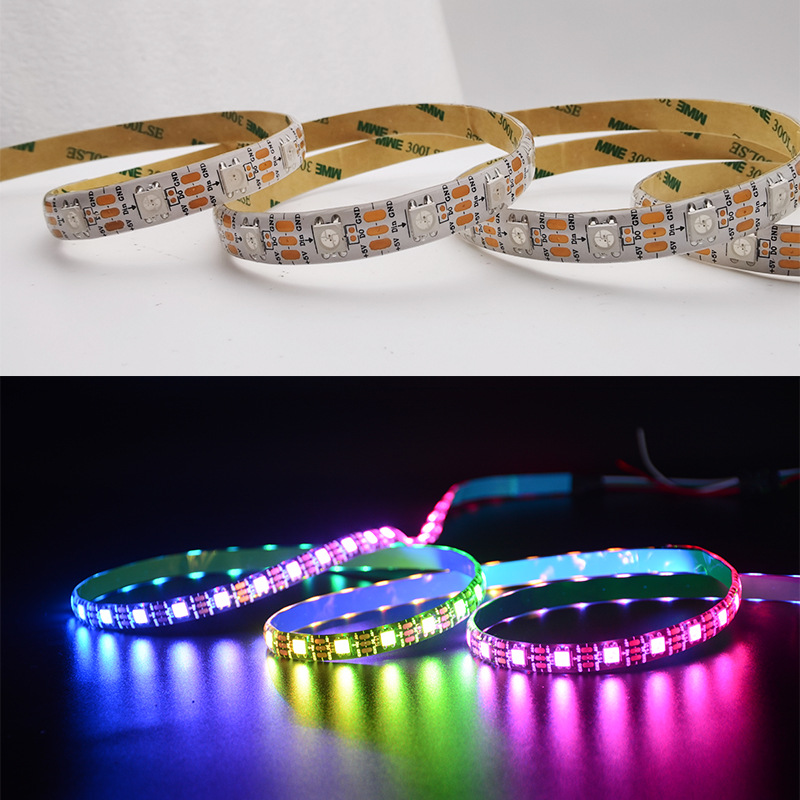

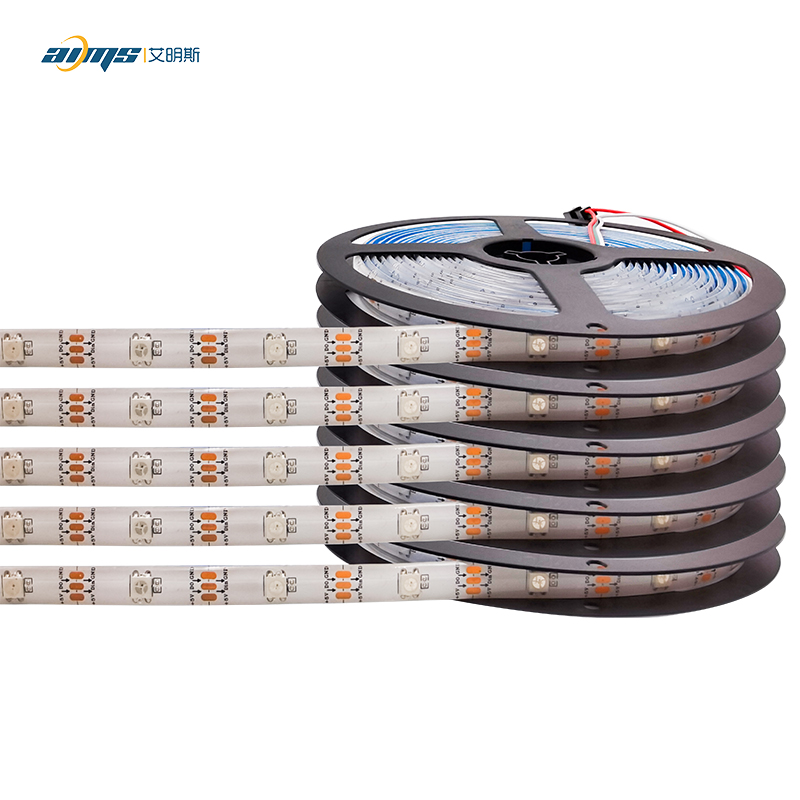

| LED Resource | 5050 SMD RGB LED with built-in IC |
| IC Type | WS2812B/TX1812 |
| Led Pixels | 30/60 |
| PCB Width | 10mm |
| PCB Color | White PCB / Black PCB |
| Input Voltage | DC 5v |
| IP Rating | IP20 |
| Cuttable | Every LED is cuttable |
| Colors | Full color RGB, dream color changing |
| Package | Anti-static bag |

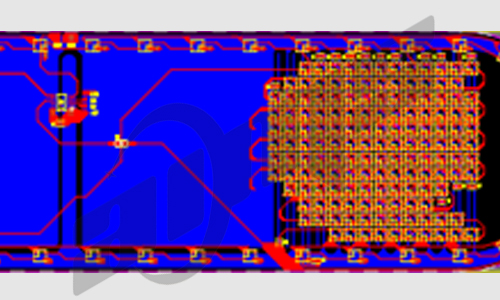

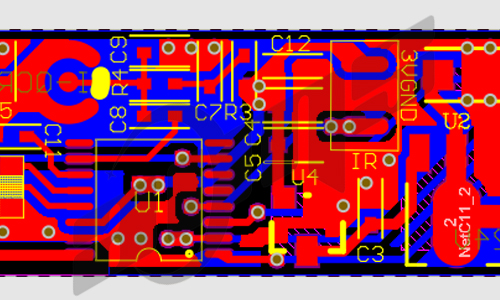

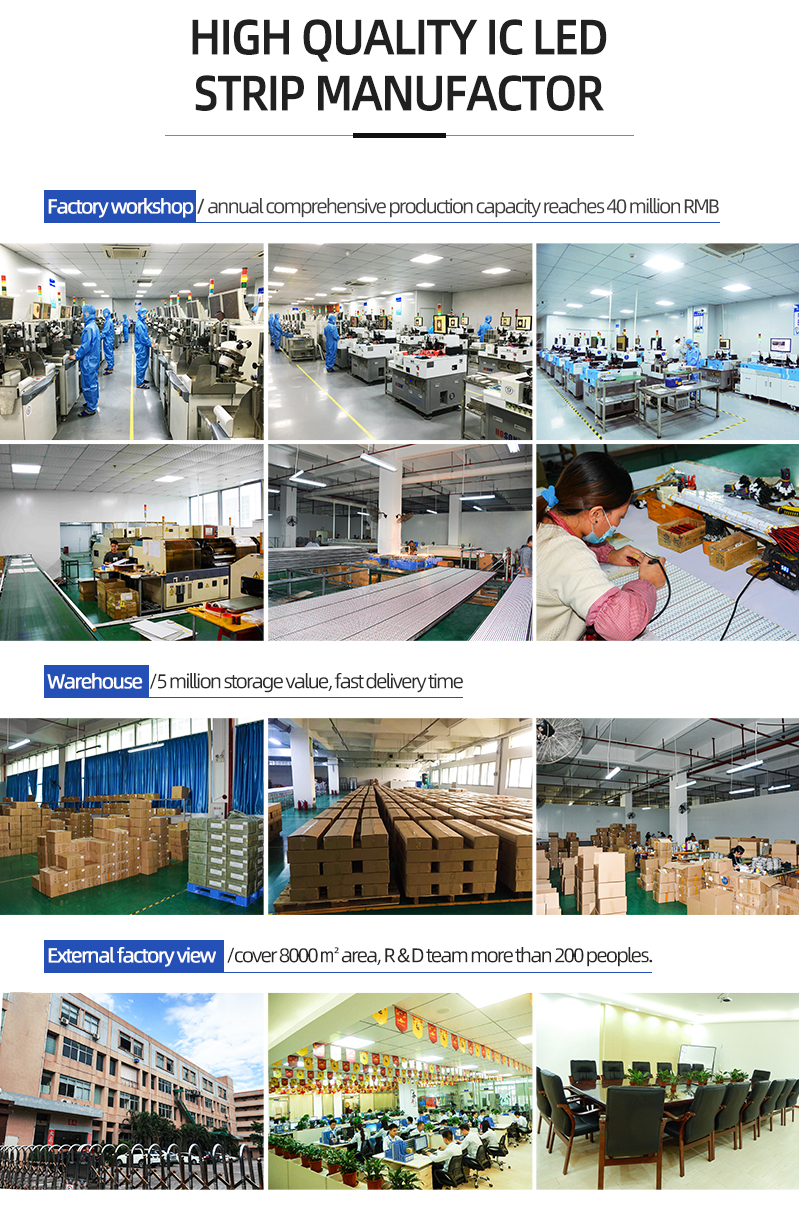

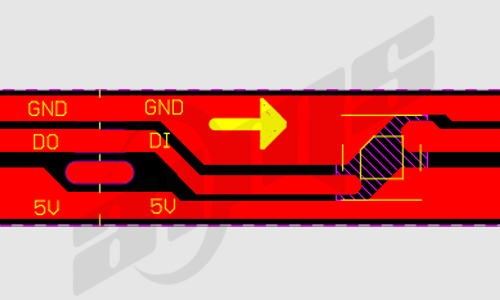

We offer full customization of addressable LED strips, featuring professional SMD LED and SMT workshop design. We support custom LED strips, PCB design adjustments, and control solution integrations.

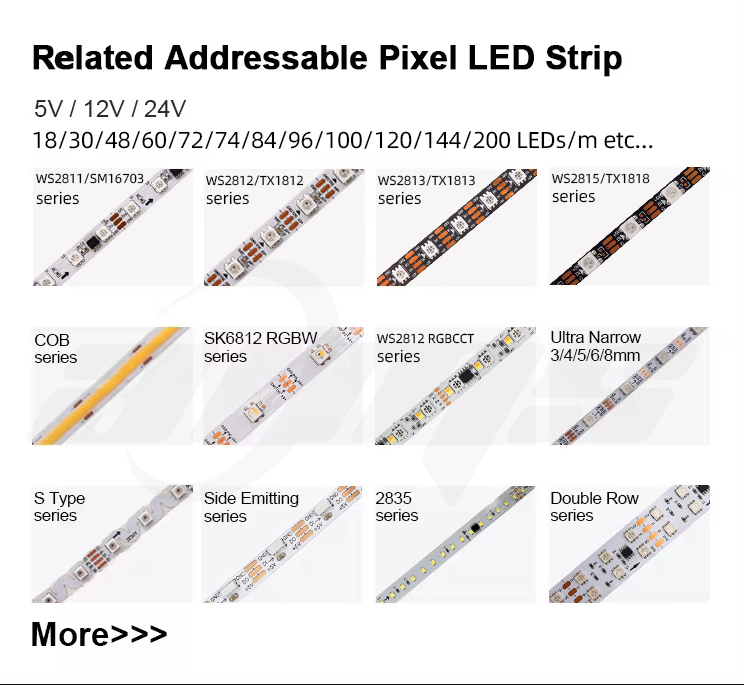

| Voltage Options | 5V / 12V / 24V |
| SMD LED Options | Smd 1010 / Smd 2020 / Smd 3535 / Smd 4020 side-emitting / Smd 5050 |
| IC Type Options | ws2811 / ws2812 / ws2813 / ws2815 / TX1812 / TX1813 / TX1818 / SK6812 / SK6813 / SM16703 / UCS1903 |
| PCB Width Options | 2.8mm / 4mm / 5.5mm / 6mm / 8mm / 10mm / 12mm / 20mm |
| LED Quantity (per meter) | 18 Leds / 30 Leds / 48 Leds / 60 Leds / 72 Leds / 74 Leds / 84 Leds / 96 Leds / 120 Leds / 144 Leds |
| IP Grade Options | IP20: Non-waterproof IP65: Waterproof in Plastic Coating IP67: Waterproof in SiliconTube IP68: Waterproof in Glue Filling |
| Connector Wire Options | 3pin/4pin/5pin JST connector 3pin/4pin/5pin XH2.54 connector 3pin/4pin/5pin PH2.54 connector And so on. |
