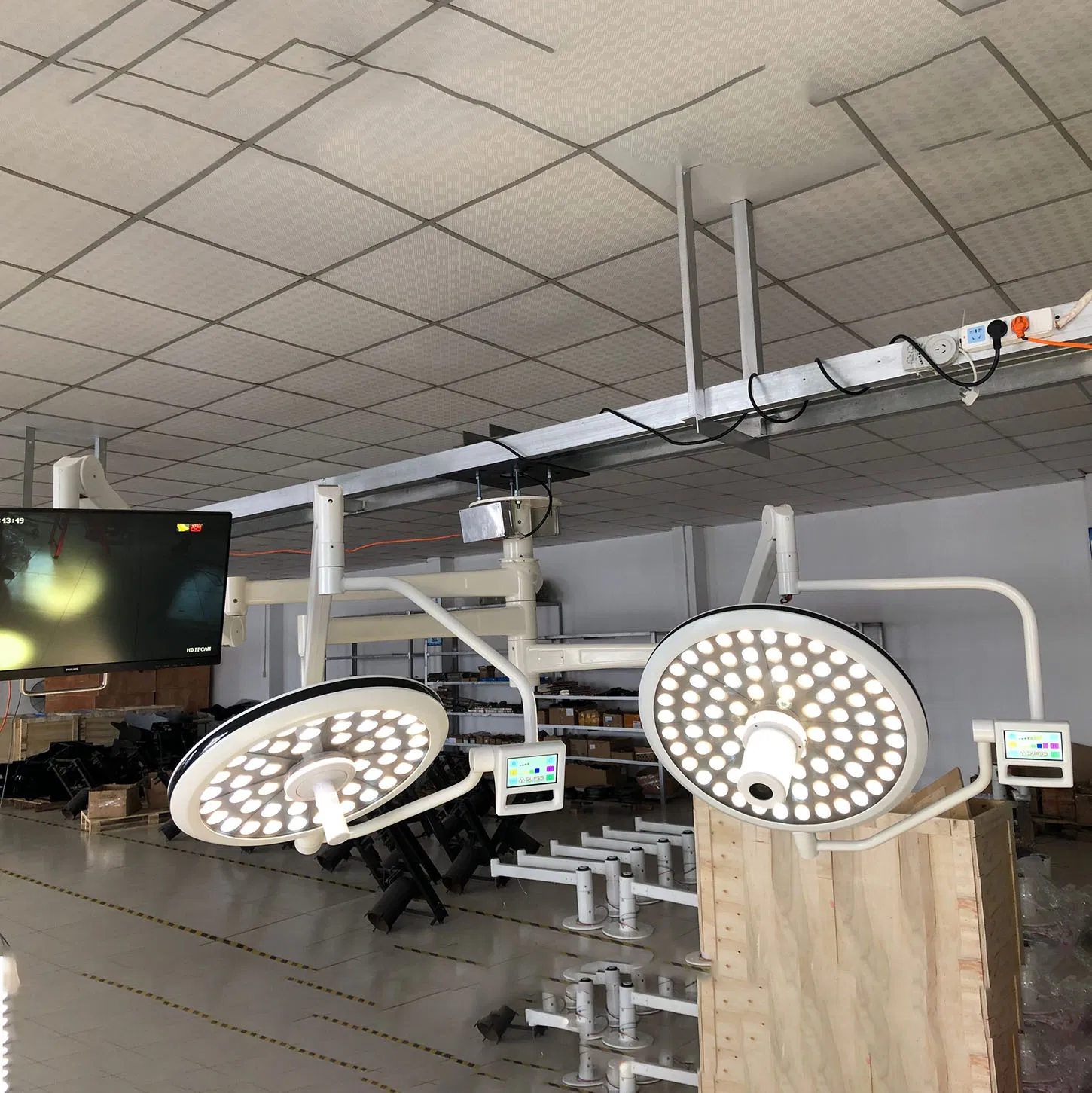

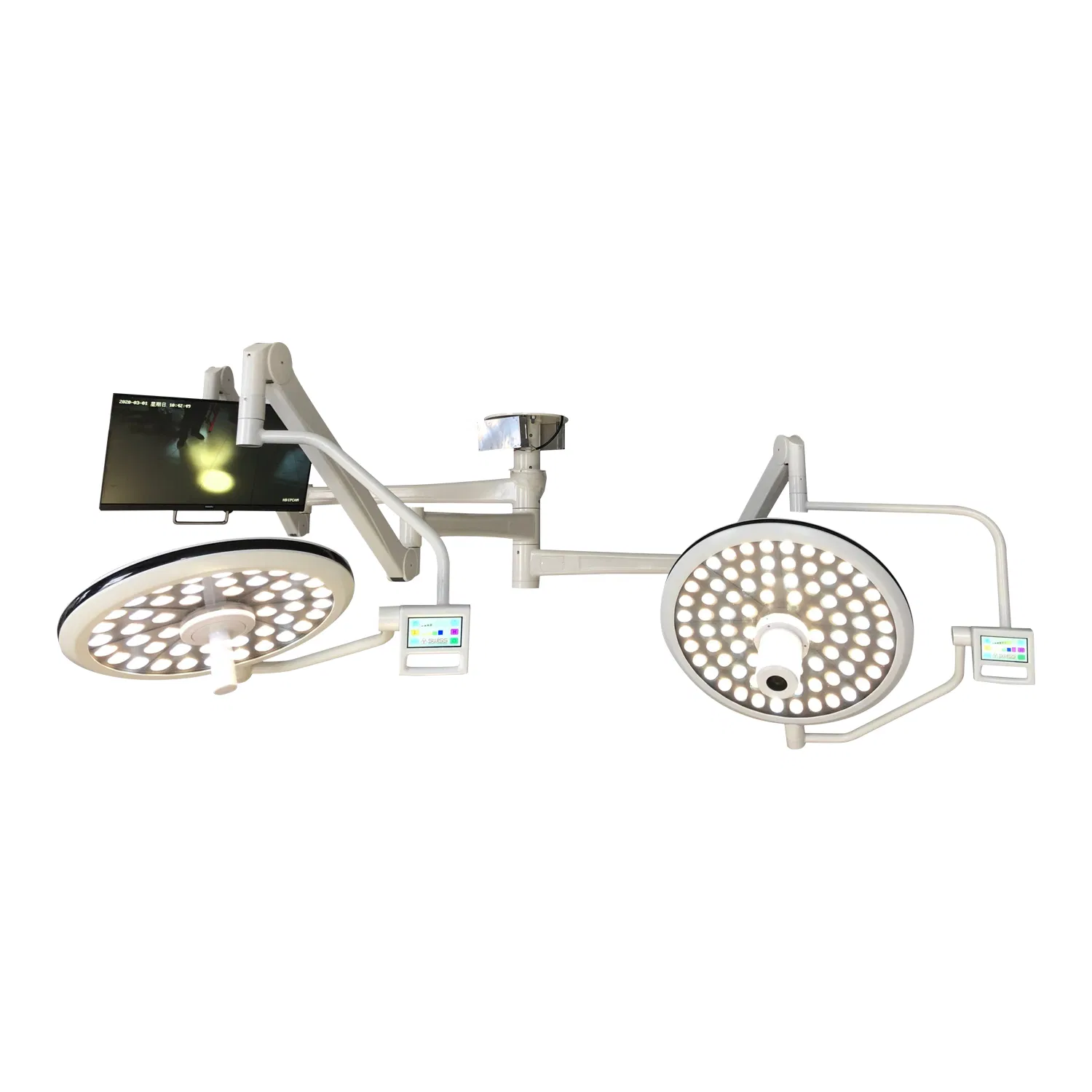

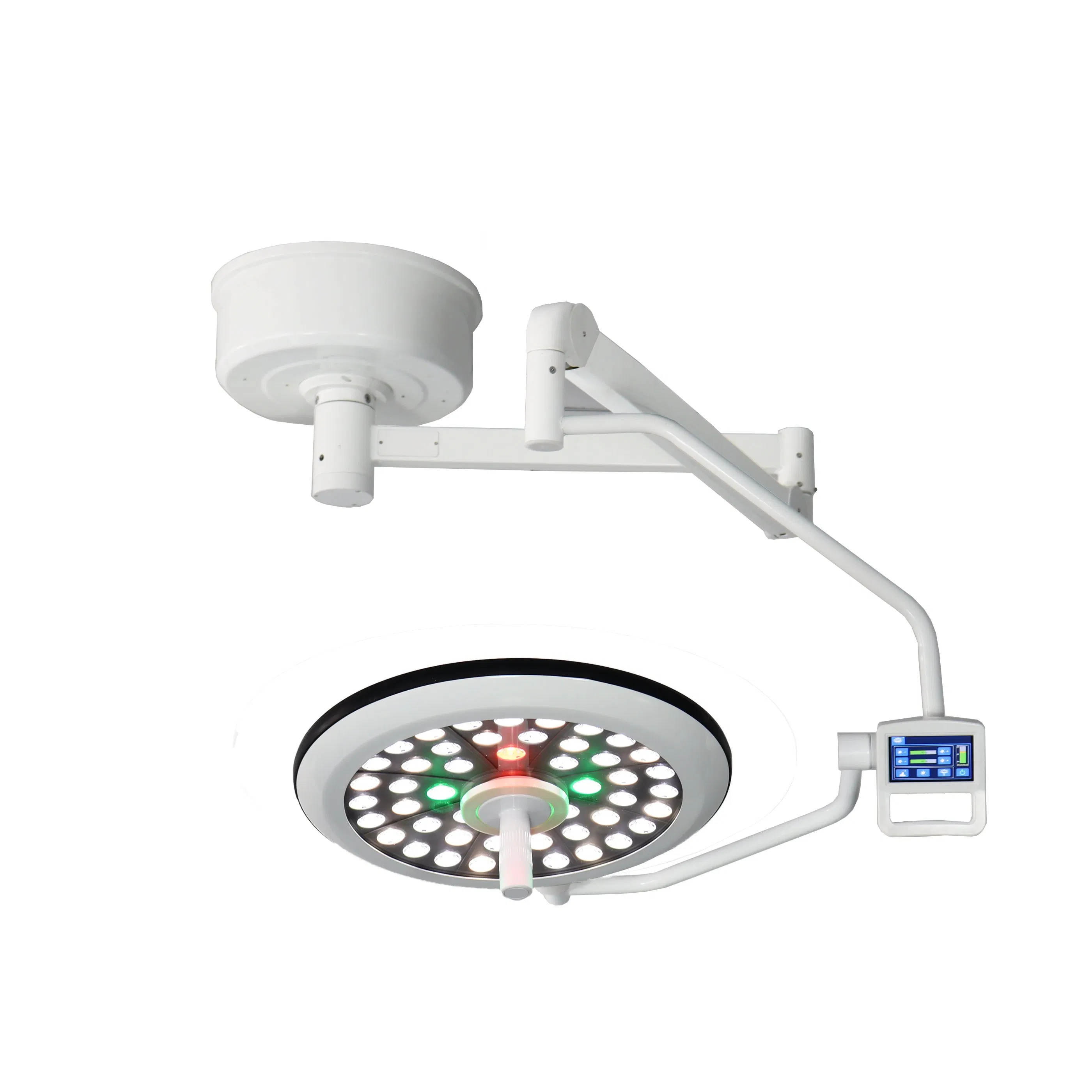

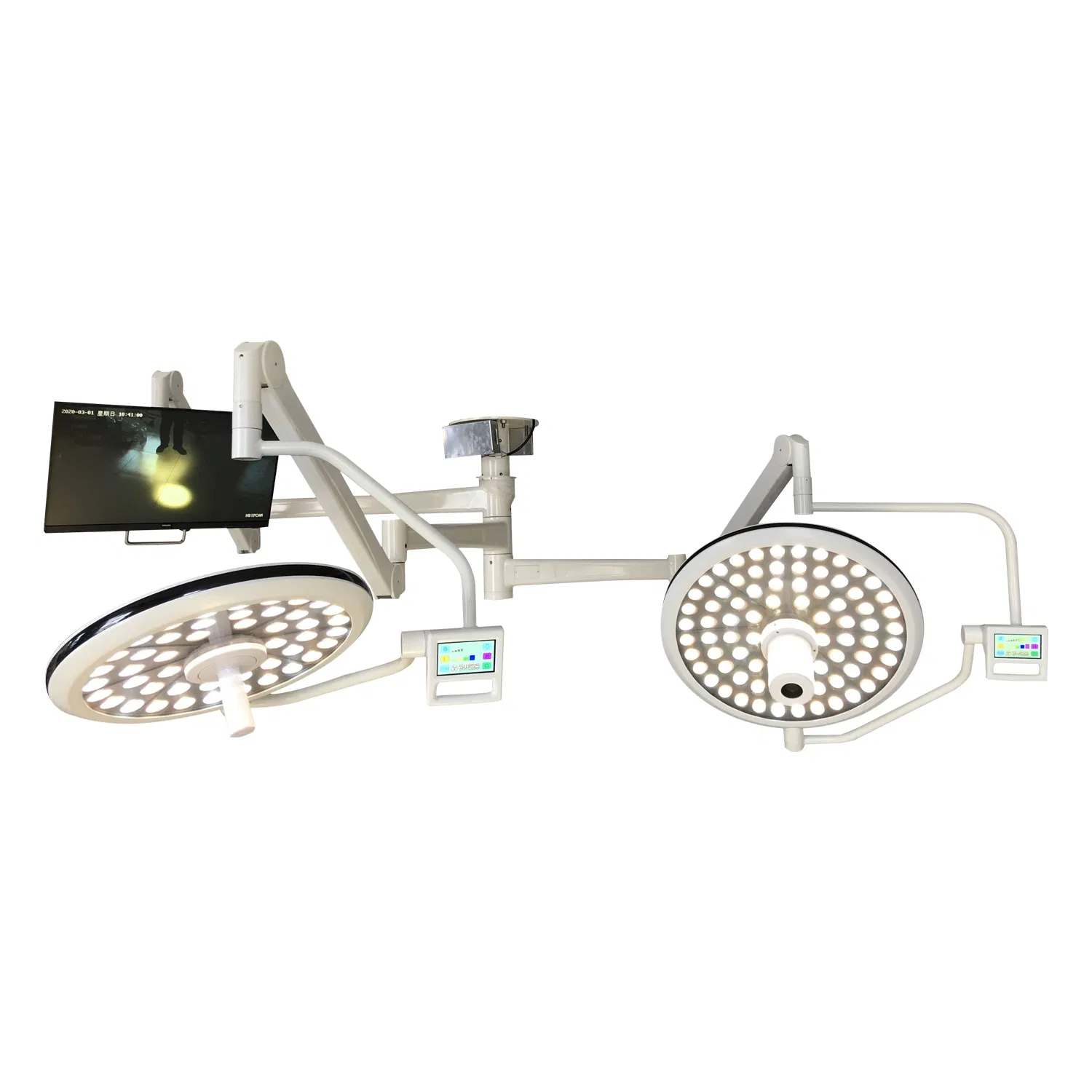

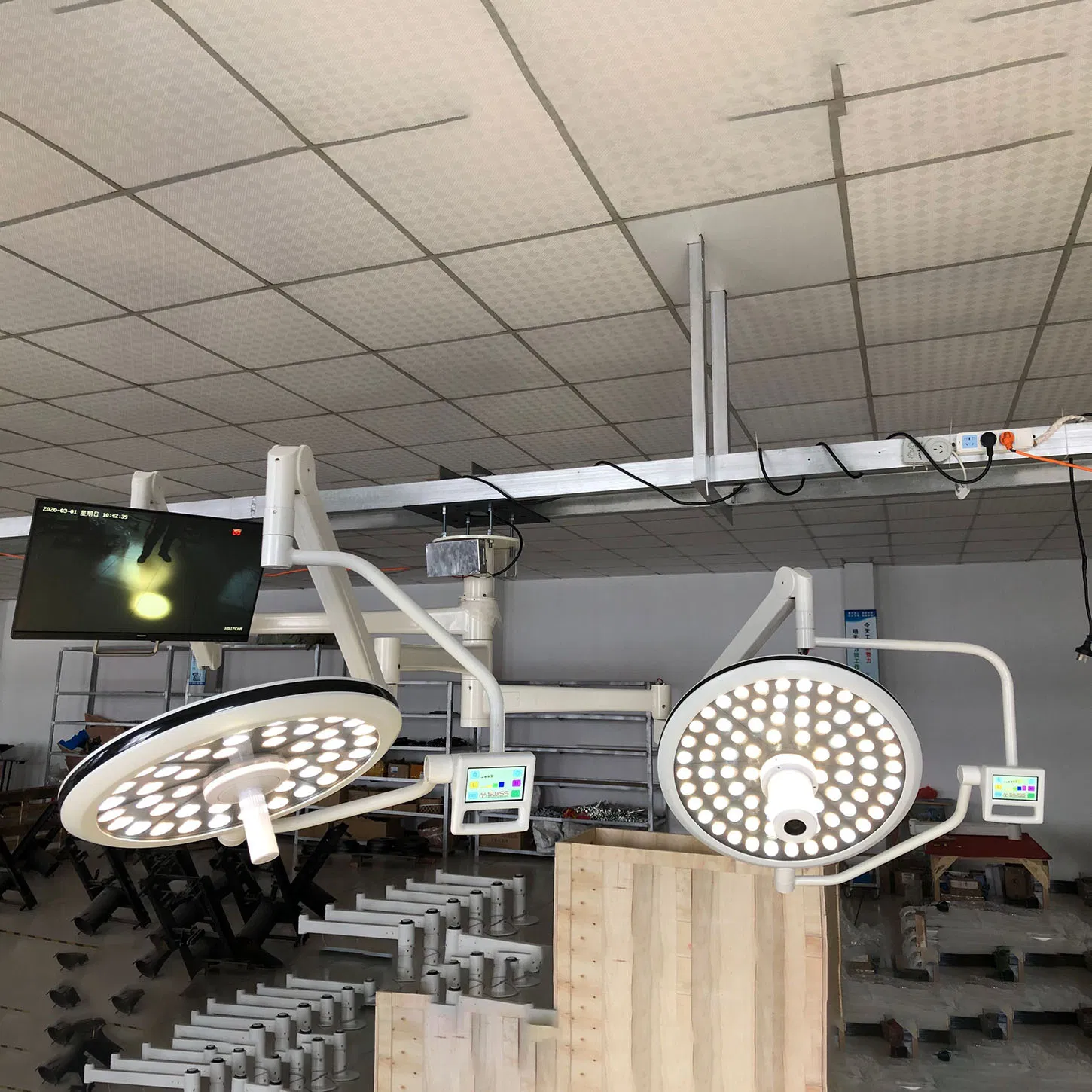

China Mplent Factory Produce 700 Dome LED Surgical Light Ceiling Mounted Operation Light for Hospital Clinic Medical Application

Product Description

Function Features
  • German LED, low energy consumption, with average lifespan more then 60000hrs.
  • Detachable sterilized handle cover.
  • Constant current driver for stable working, largely enlongating service life of LED light source.
  • Ultra-slim streamline design,the dome thickness is 90mm
  • Light spot size is adjustable

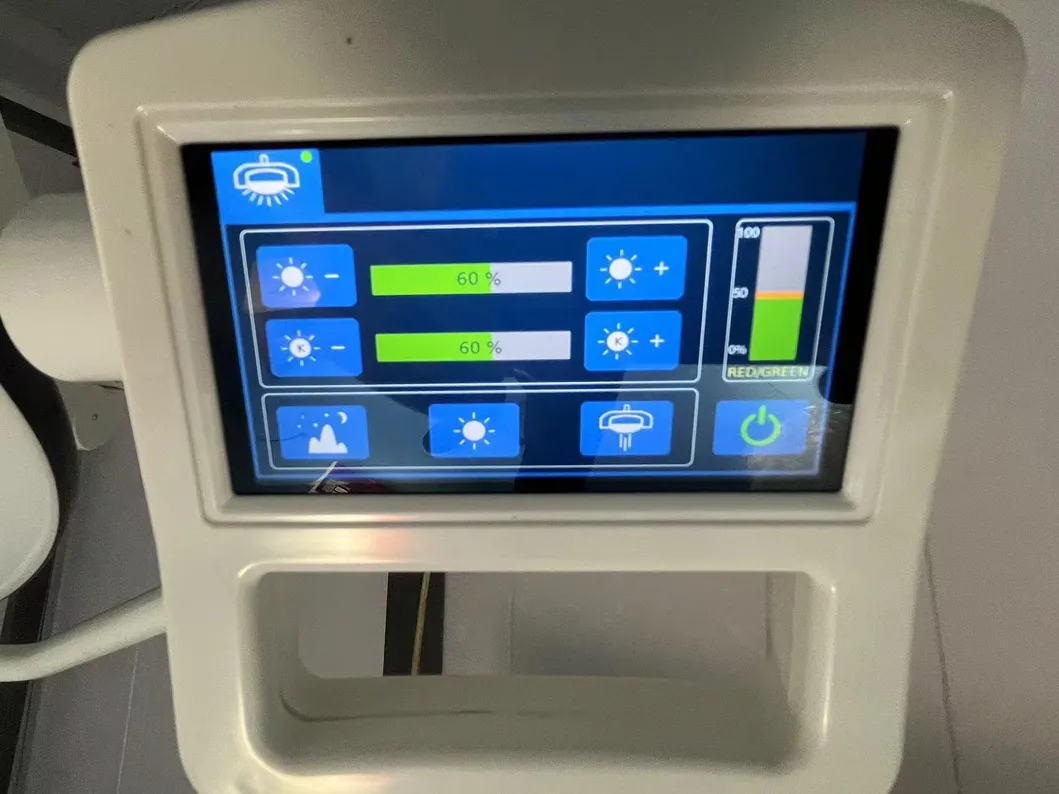

  • Easy to operate interface, simply and slightly touch the key to achieve all operation.
  • Remote control: optional
  • Storage Battery: optional

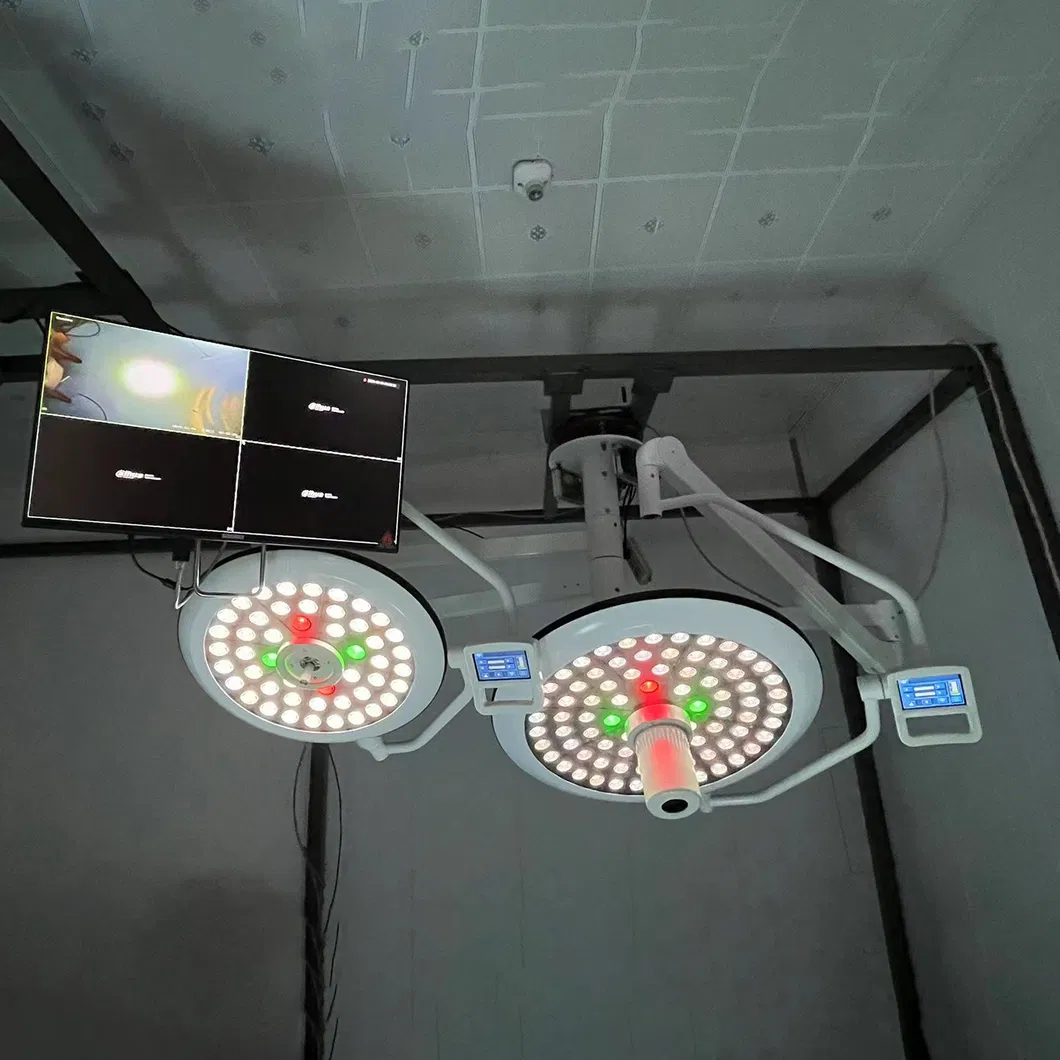

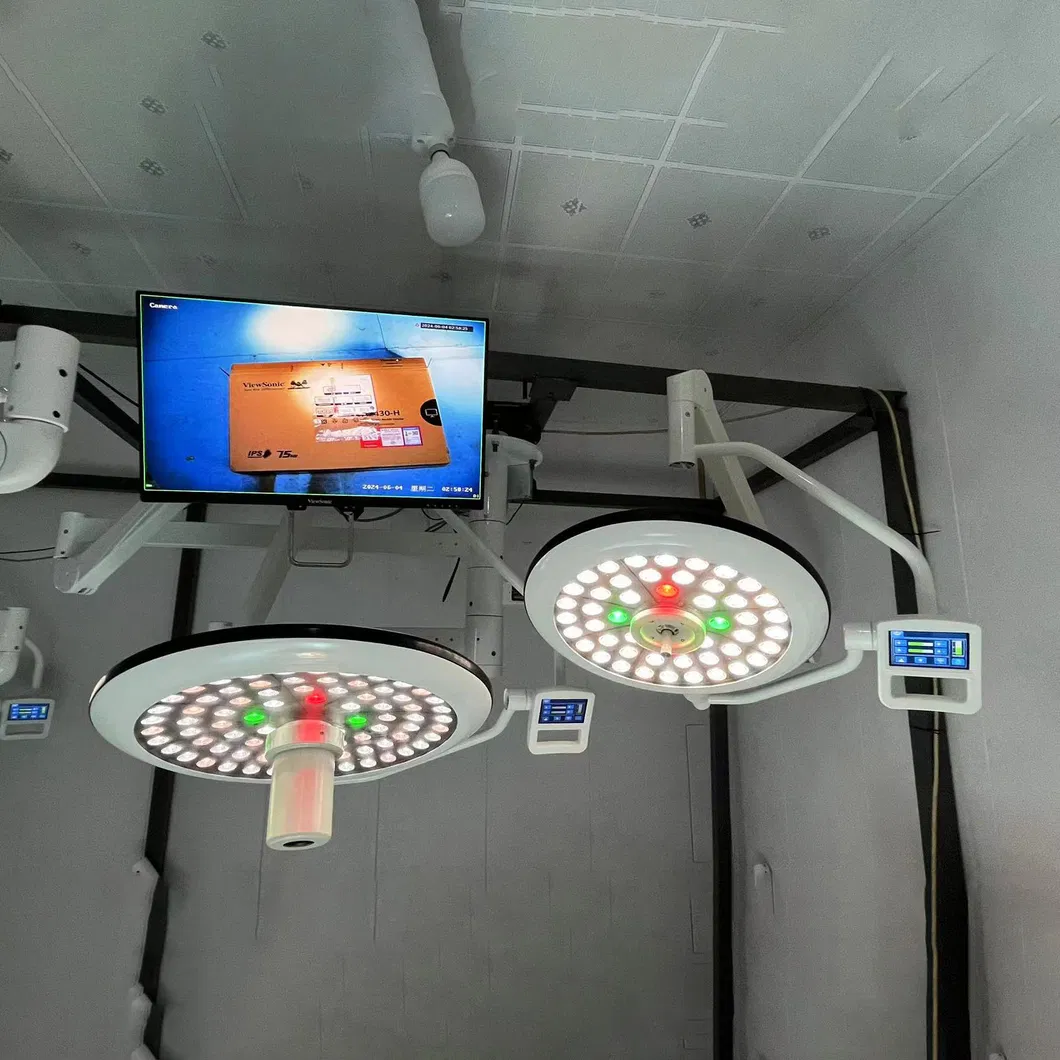

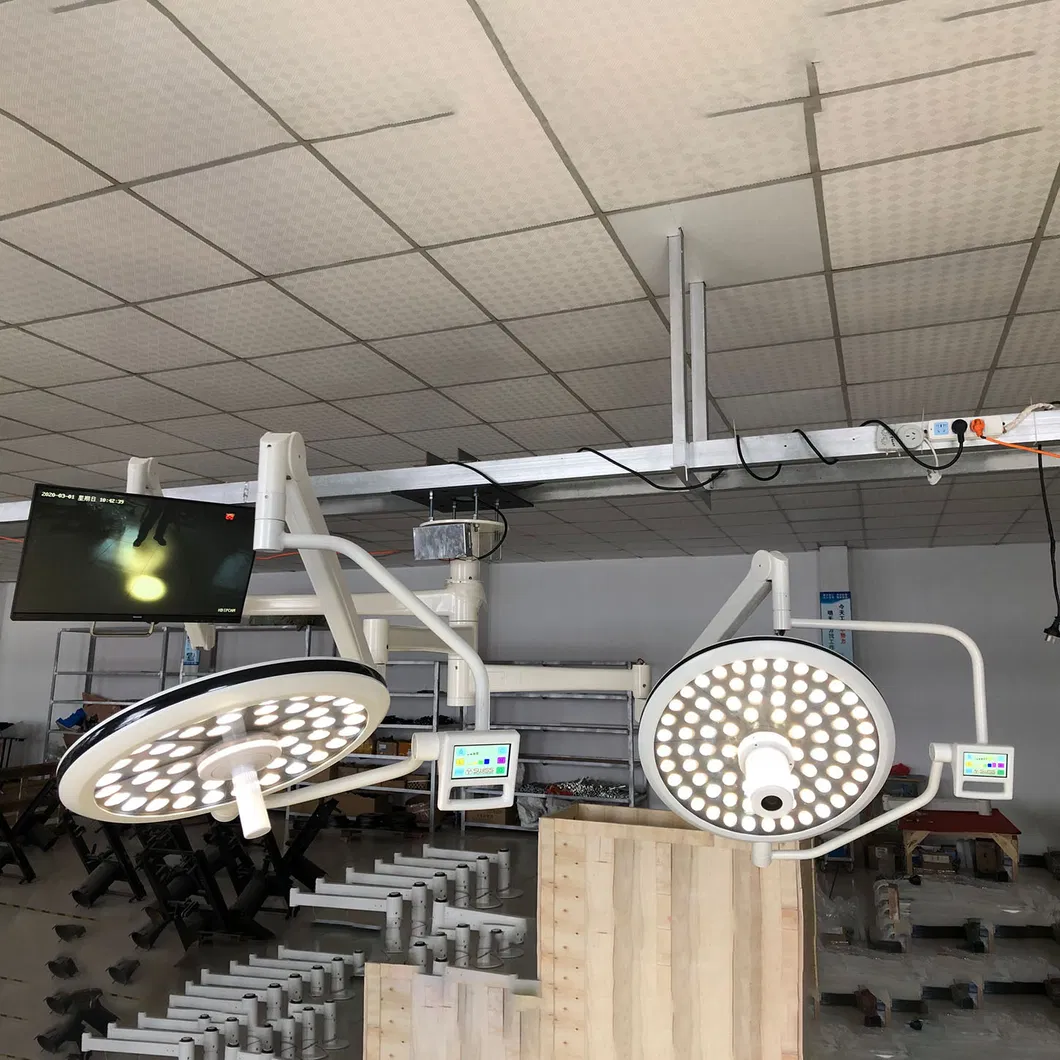

LED Surgical Light Ceiling Mounted Operation Light
LED Surgical Light Ceiling Mounted Operation Light
LED Surgical Light Ceiling Mounted Operation Light
LED Surgical Light Ceiling Mounted Operation Light
LED Surgical Light Ceiling Mounted Operation Light
Technical Detail

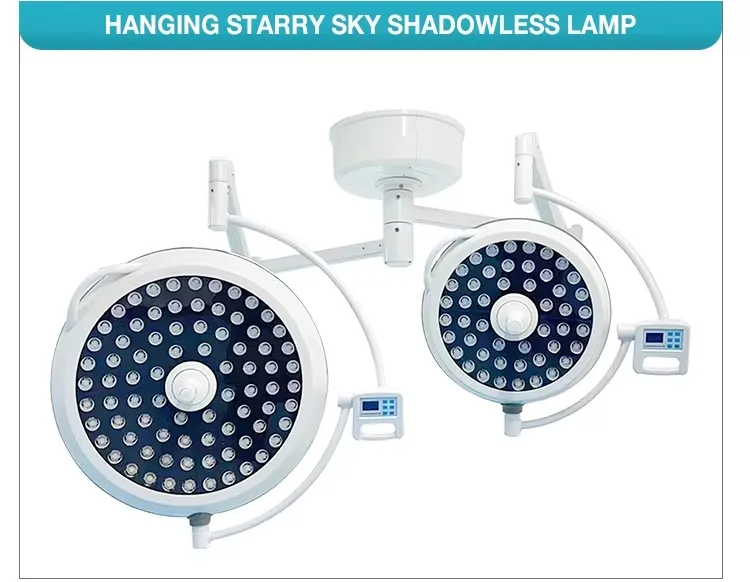

Technical Data Overview
Technical Data LED700 LED500
Illumination (adjustable) 60,000-180,000Lux 40,000-160,000Lux
Number of bulbs 80 pcs 48 pcs
Bulb Type LED LED
Average bulb life ≥80,000h ≥80,000h
Color temperature(adjustable) 3700K 5000K 3700K 5000K
Display index (adjustable) 85-98 85-98
focus depth >1200mm >1200mm
spot diameter 160-280mm(adjustable) 160-280mm(adjustable)
bright adjustment 1%-100% 1%-100%
The surgeon's head heats up <1°C <1°C
power supply AC100-240V 50/60HZ AC100-240V 50/60HZ

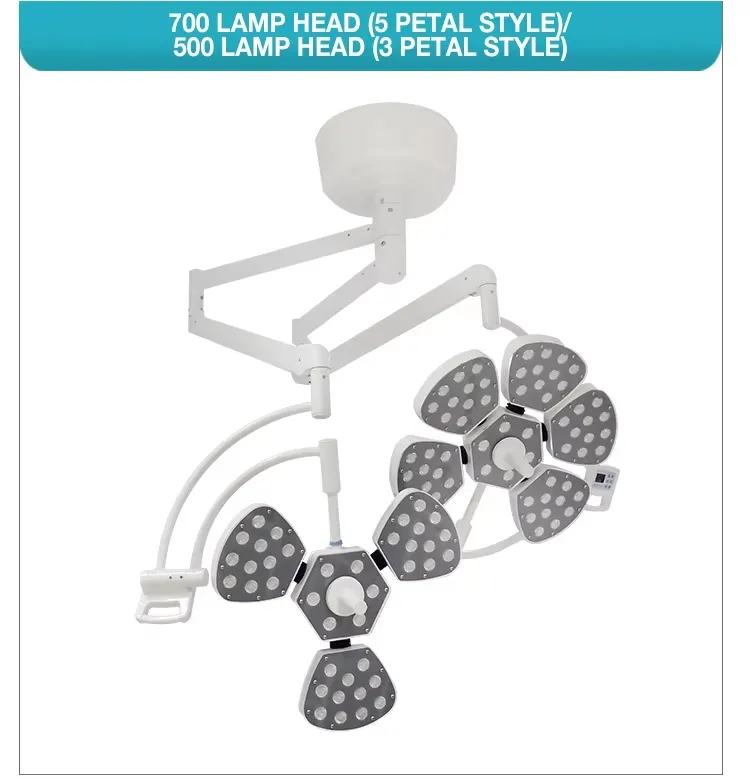

Surgical Light Details
illumination ≥180000LuX ≥140000LuX
Color temperature 4300+500 4300+500
Spot diameter 100-300mm 100-300mm
Color rendering index RA degree ≥85 ≥85
Depth of illumination 1000mm 800mm
Working voltage/rated power 220V/100W 220V/100W
Empty mirror mode standard configuration standard configuration

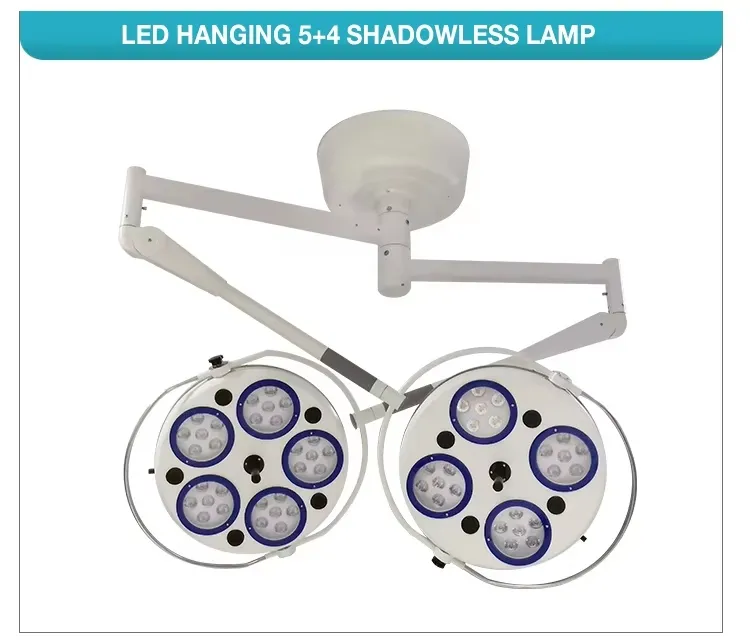

Dome Surgical Light Setup
Central illumination Ec>=55000LX
Spot diameter 120mm≤d10≤220mm
Spot distribution D50≥0.5xd10
Color rendering index 85<=Ra<=100
Depth of light column >=400mm
Lamp head size 500mm
Waterproof level IPX4

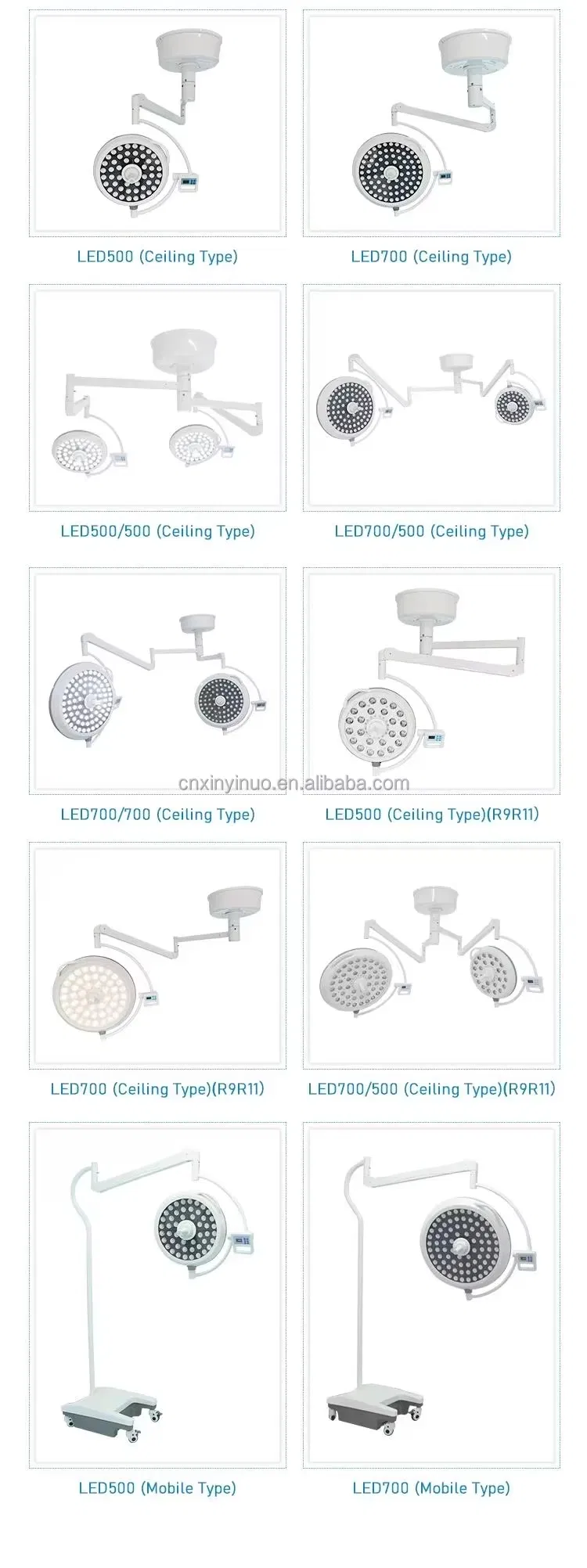

Installation Dimensions
Recommended Products
Recommend every product that may be suitable for you.
Recommended Surgical Equipment
Recommended Surgical Equipment
Recommended Surgical Equipment
Recommended Surgical Equipment
Recommended Surgical Equipment
Successful Projects
With a strong sales team and professional product knowledge, our products are sold to Europe, CIS, America and even clinics and large hospitals.

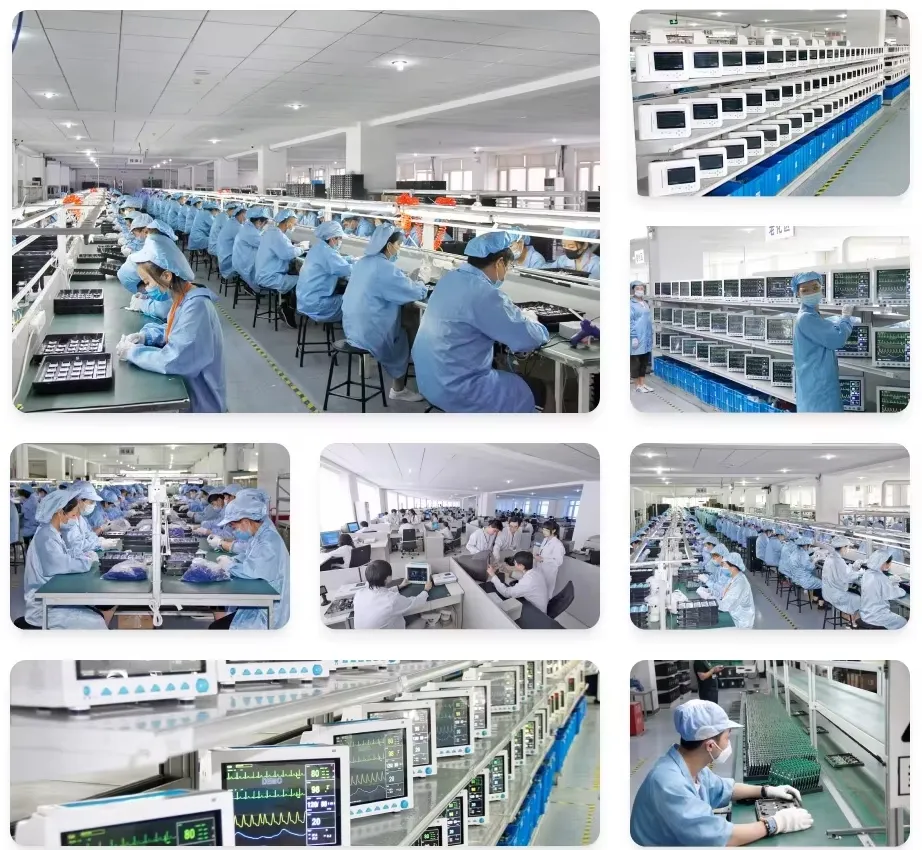

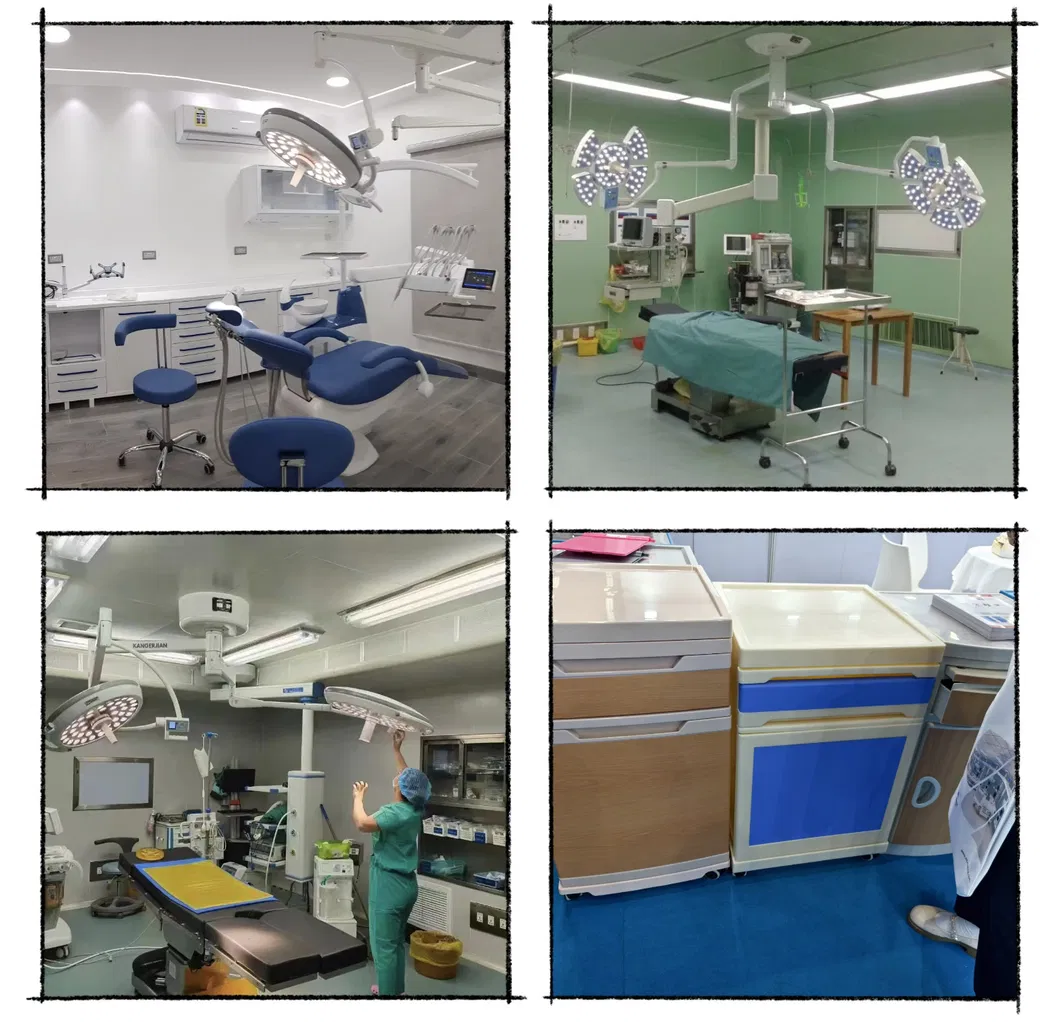

Successful Projects Showcase
Company Profile
We are a medical equipment company integrating production, research and development, and sales. We are a leading super factory in China, specializing in the manufacturing of medical devices for both humans and pets. Our extensive product range covers all types of medical equipment and accessories, providing a one-stop solution for our customers. We pride ourselves on being able to produce any type of medical device, making us an ideal partner for businesses.

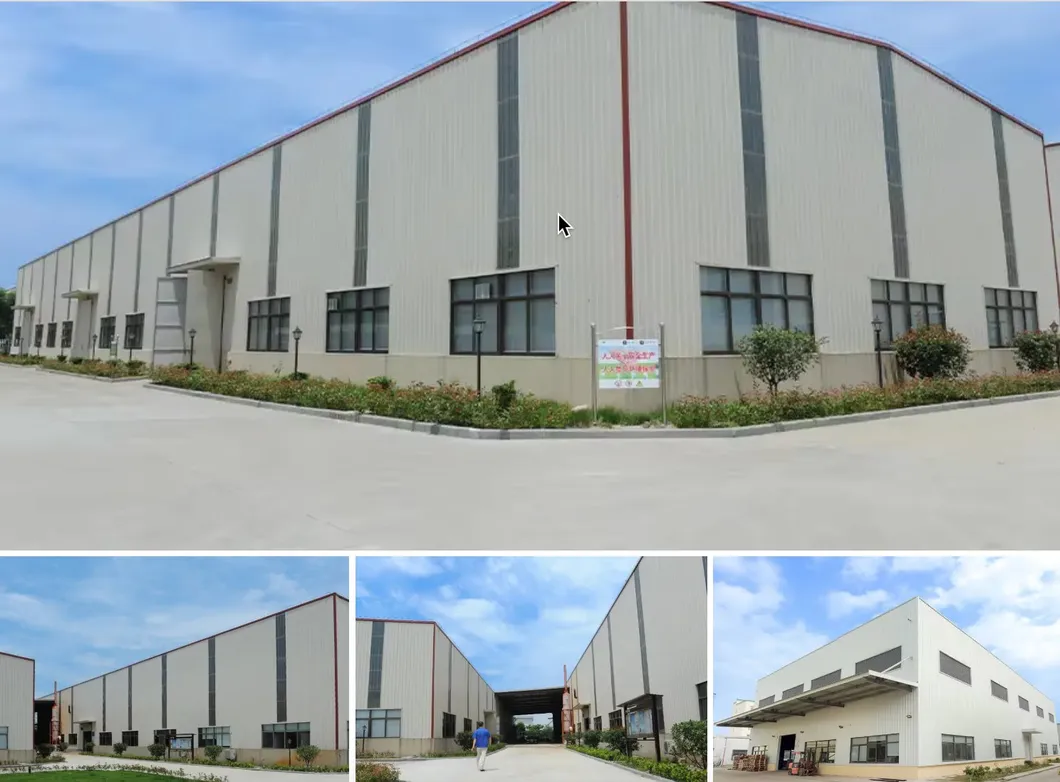

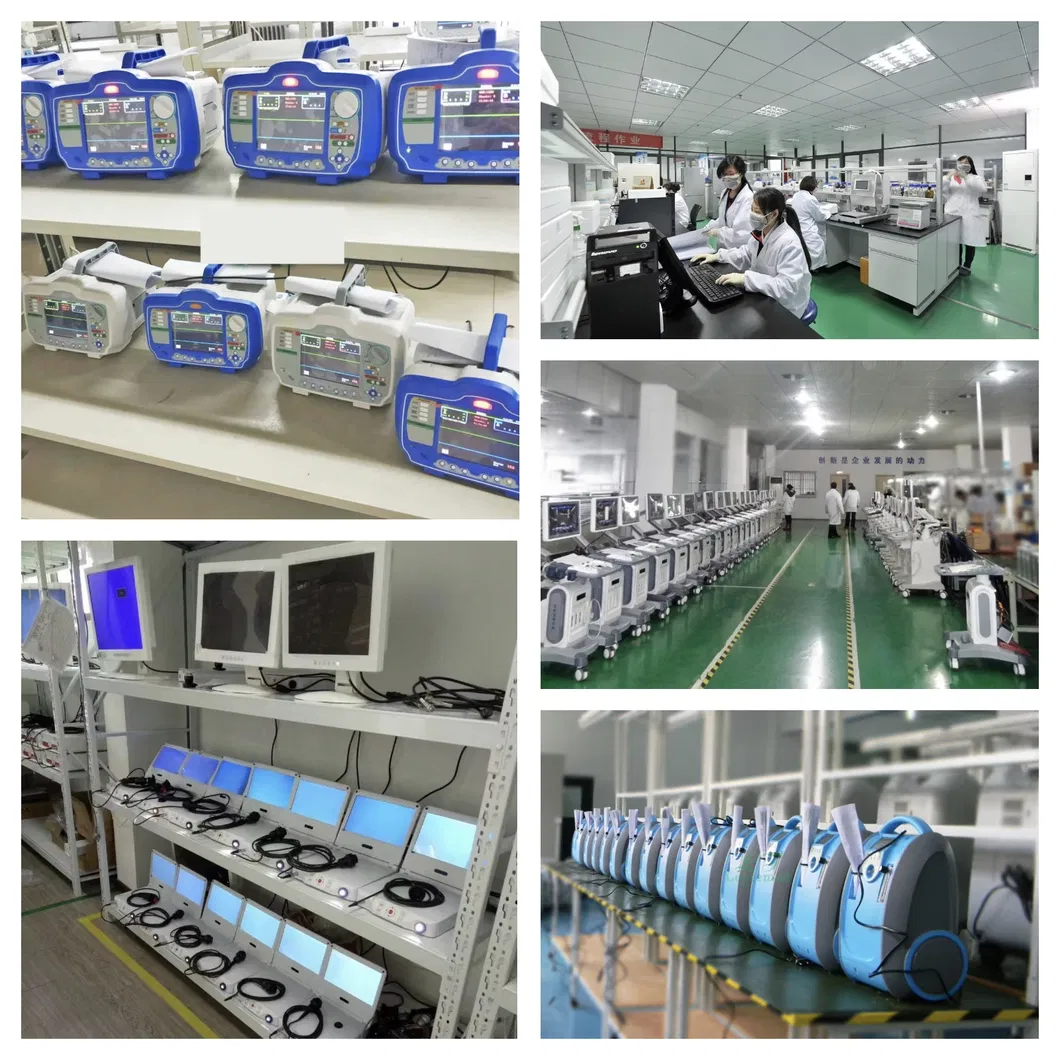

Factory Manufacturing Facility

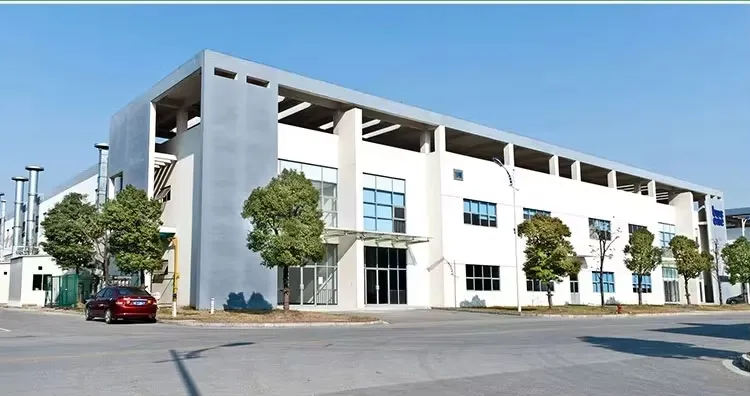

R&D Department

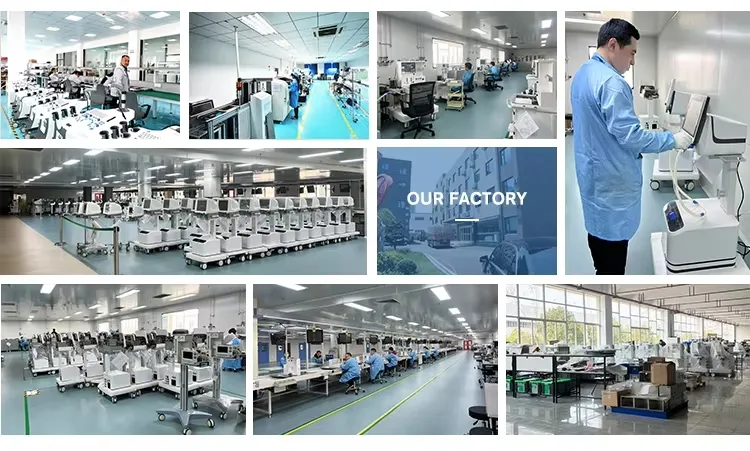

Warehouse Storage

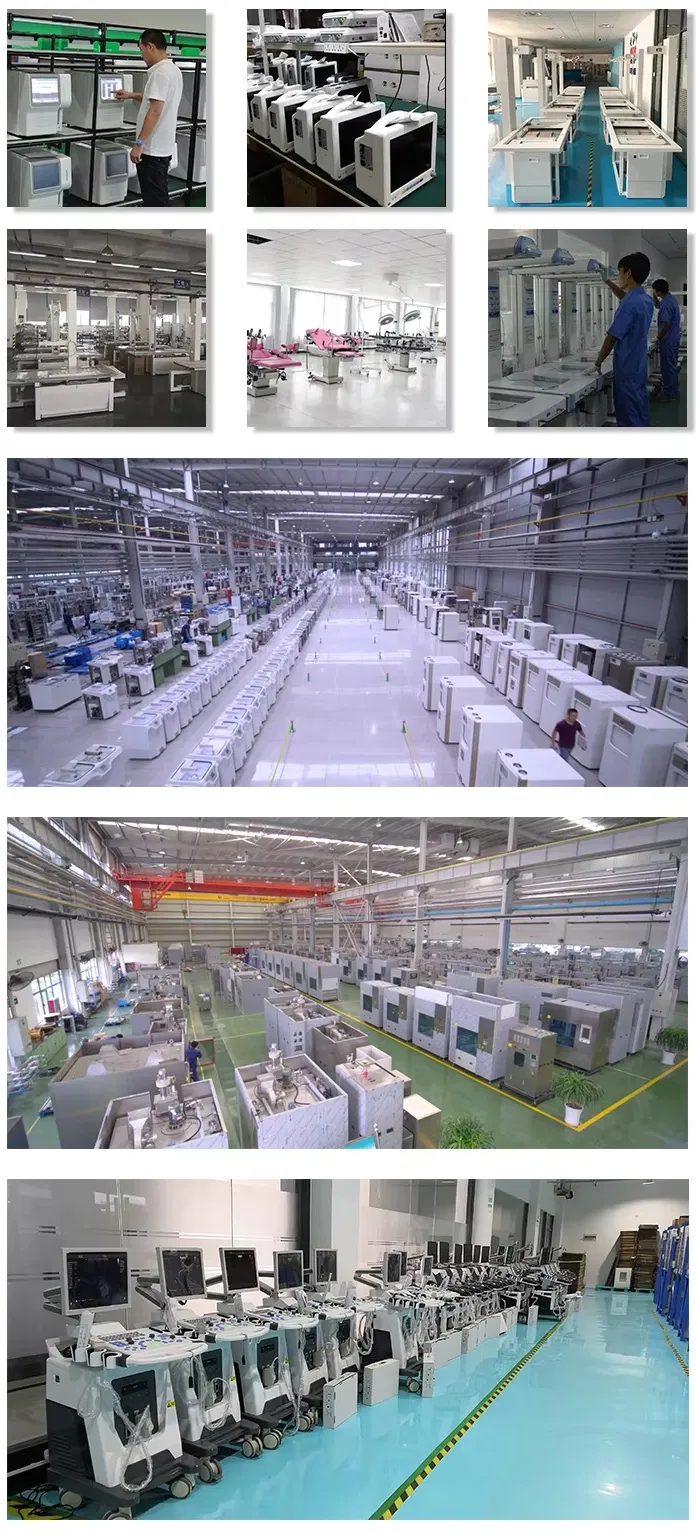

Production Process
