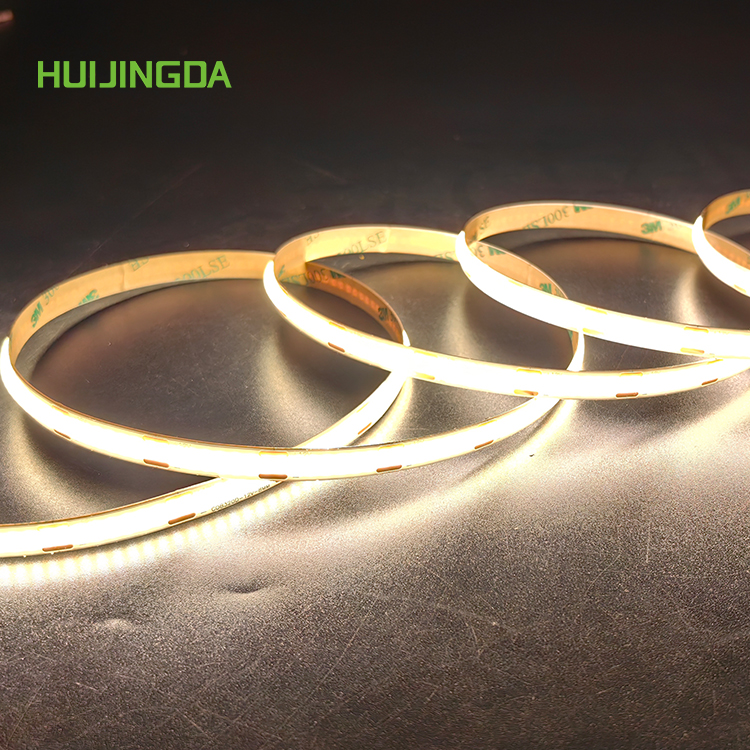

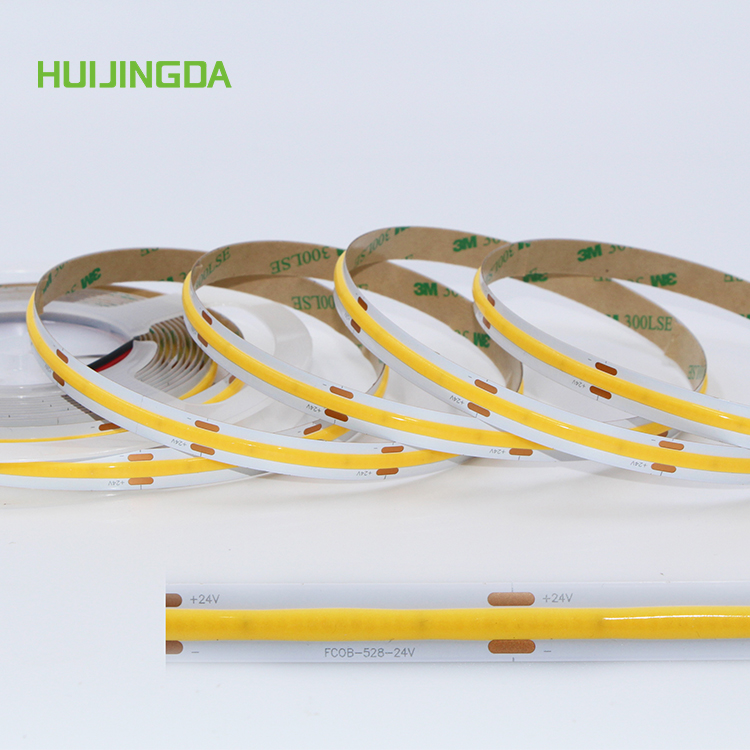

DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light
DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light
DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light
DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light
DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light
1 / 5
DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light
DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light
DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light
DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light
DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light

DC12V 24V 10mm Width PCB 528LEDs/m IP20 Roll-to-Roll Flexible COB Led Strip Light

Send Inquiry

Product Description

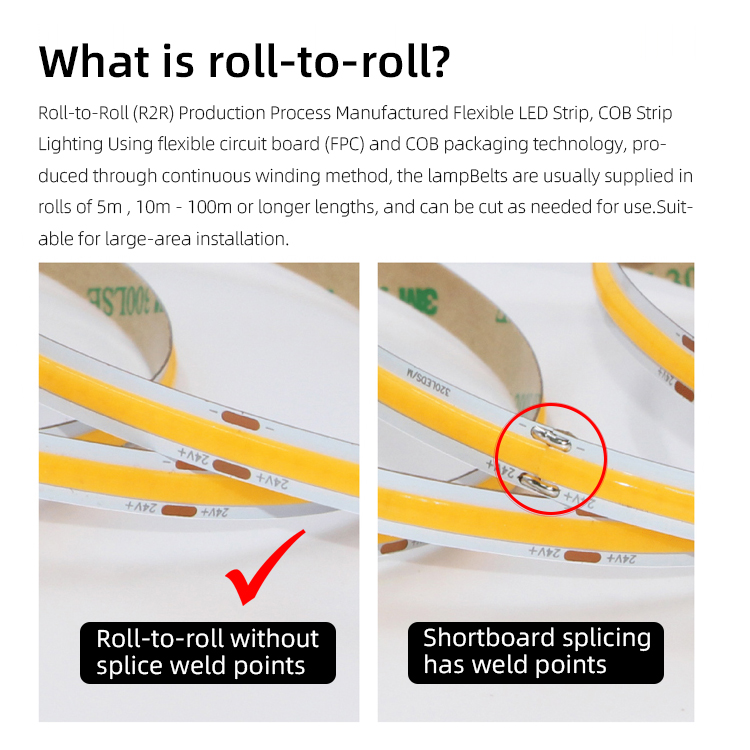

What is Roll-to-Roll (R2R)?
Roll-to-Roll (R2R) Production Process is used to manufacture Flexible LED Strips and COB Strip Lighting. Using flexible circuit board (FPC) and COB packaging technology, produced through a continuous winding method, the lamp belts are usually supplied in rolls of 5m, 10m - 100m or longer lengths. They can be cut as needed for use and are highly suitable for large-area installations.

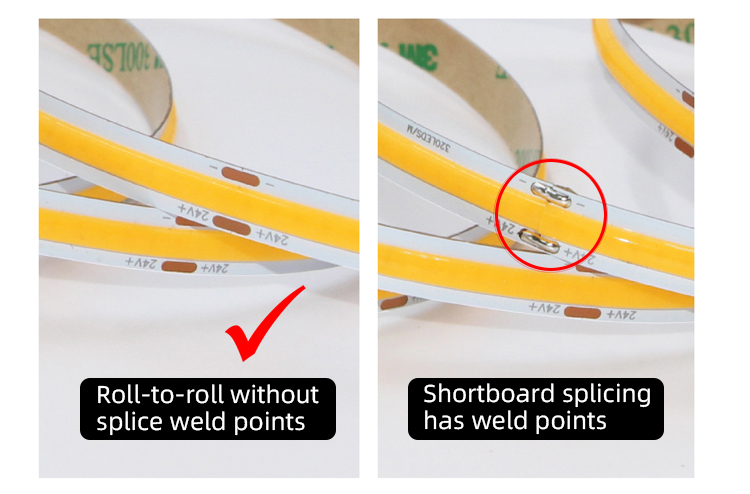

R2R Process

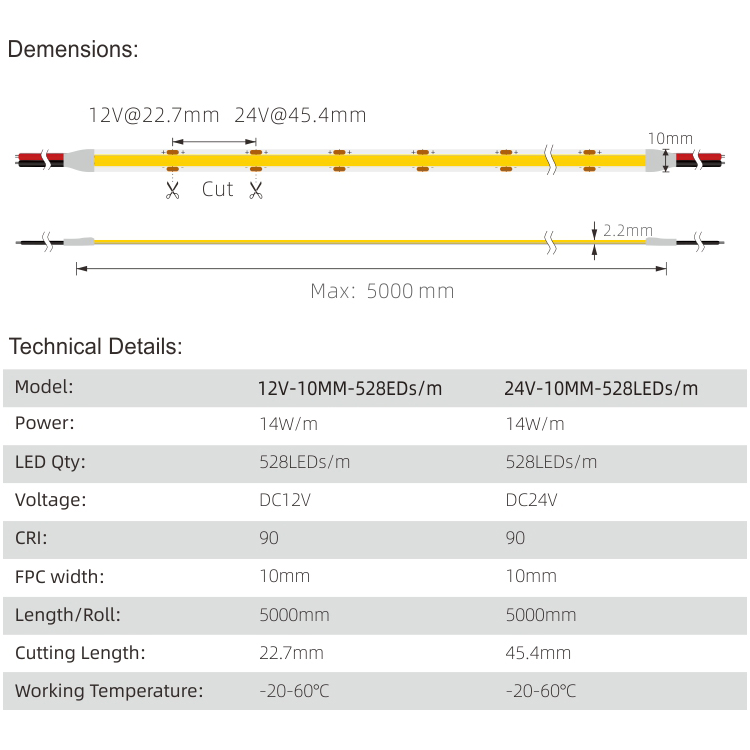

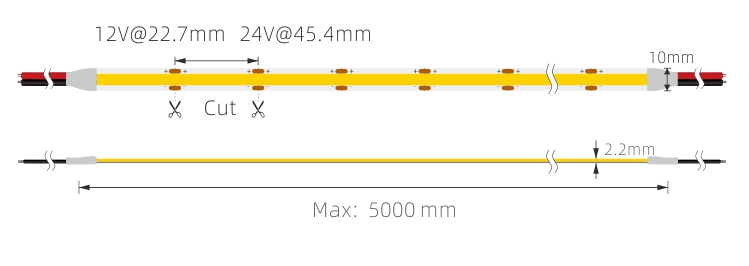

Dimensions
Product Dimensions
Technical Specification
Model HJD-12-10F-COB-528L / HJD-24-10F-COB-528L
Cutting Length (mm) 12V @ 22.7mm / 24V @ 45.4mm
Number LED/m 528 LEDs/m
CRI 90+
Beam Angle (°) 180°
Voltage (V) 12V / 24V
Power (W/m) 14W/m
Light Efficiency 1120-1400 lm/m
FPC Width (mm) 10mm
Length/Roll (m) 5m
IP Rate IP20
Installation 3M Tape / Mounting Clips / Aluminum Profiles
Products Description

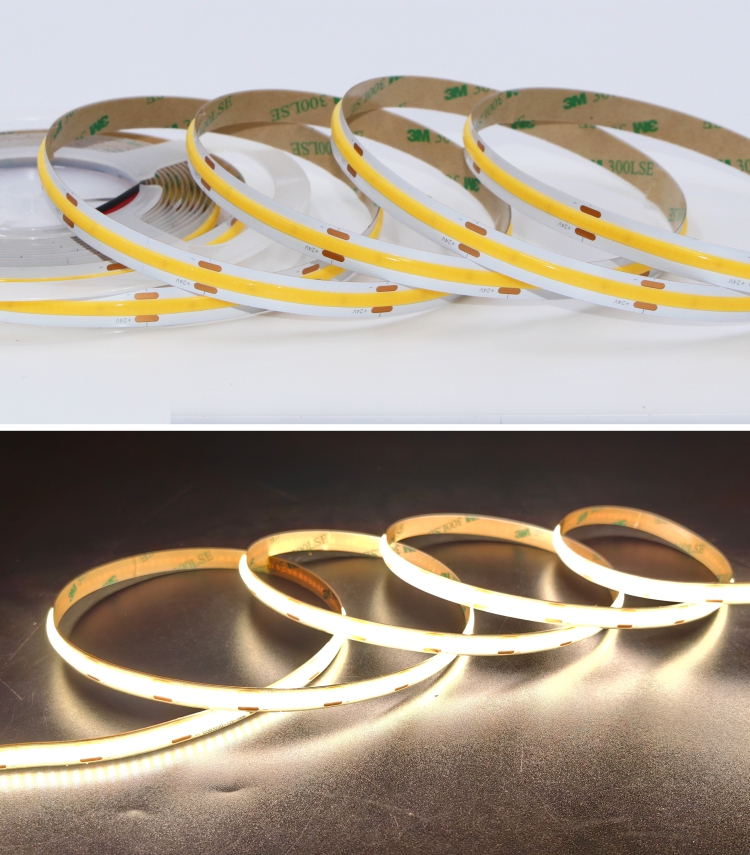

FCOB Light Detail
💡
The light color of our FCOB meets the user's pursuit of more comfort and follows the lighting environment requirements of humanistic lighting.
🔍 Yellow Spot Management
Adopting special colloids and phosphors, making color saturation higher and yellow spots smaller. Color options: 2700K/3000K/4000K/6500K.
⚡ High-quality FPCB
Uses premium high-quality circuit boards with large chips and large voltage drop margins, ensuring no brightness difference between head and tail.
🕒 Life Span Management

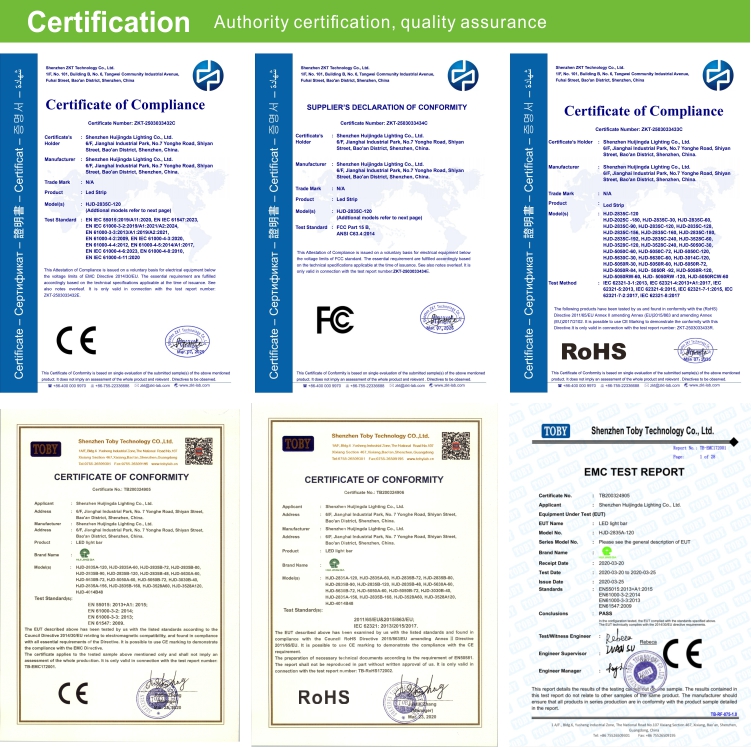

FCOB strips passed ANSI/IES LM-80-15 certification. Testing 9000 hours shows light decay < 5%. CE/ROHS compliant.

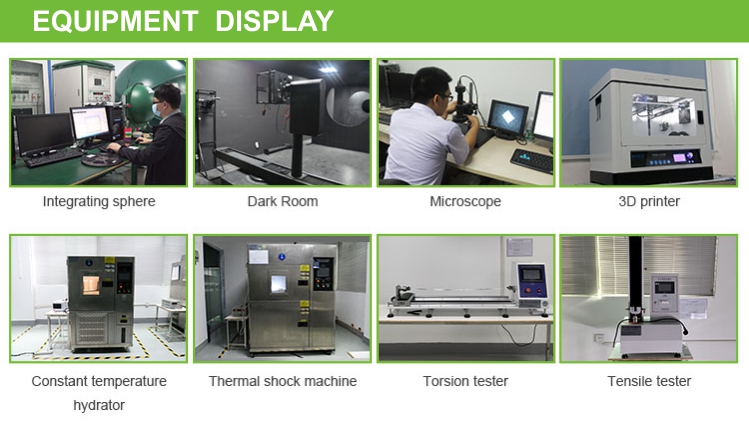

Rigorous Reliability Testing
Thermal Shock

Thermal Shock: -45℃~80℃ for 30min each, shock for 5 min, lasting 120h.

Humidity Chamber

Temp & Humidity: 85℃ temperature, 85RH humidity, sealed for 168h.

Torsion Test

Torsion Test: Positive and reverse side 900-1200 degrees, 1000 cycles.

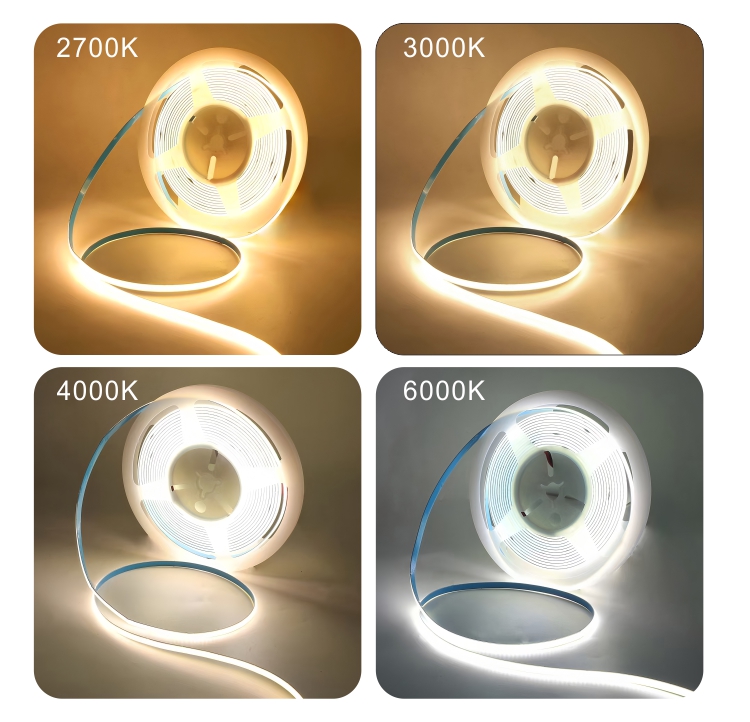

Regular CCT Options
CCT Options

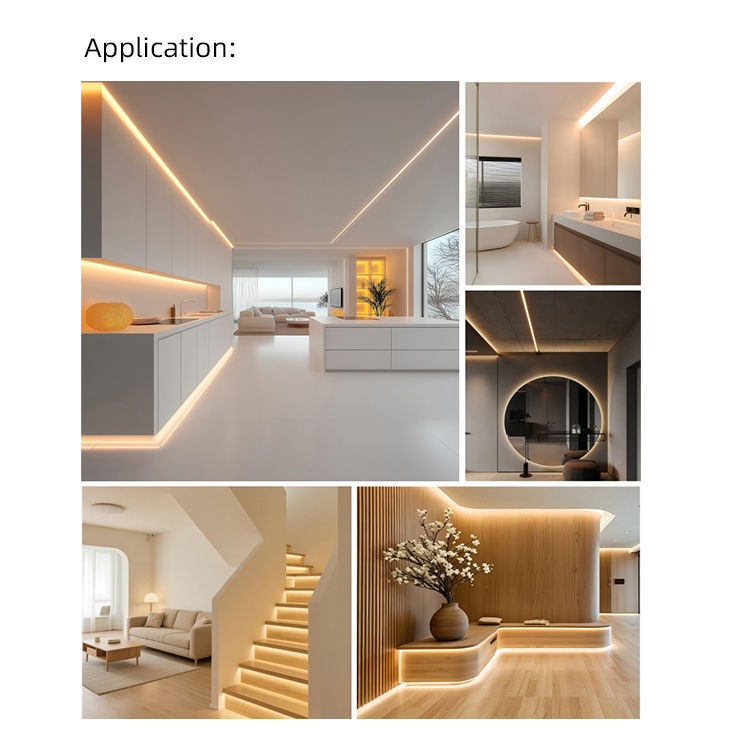

Application & Cases
FCOB strips can be hidden in ceilings, walls, or floors. They are ideal for home decoration, shopping malls, hotels, aluminum linear lighting, light boxes, clothing cabinets, car decoration, and other creative scenes.

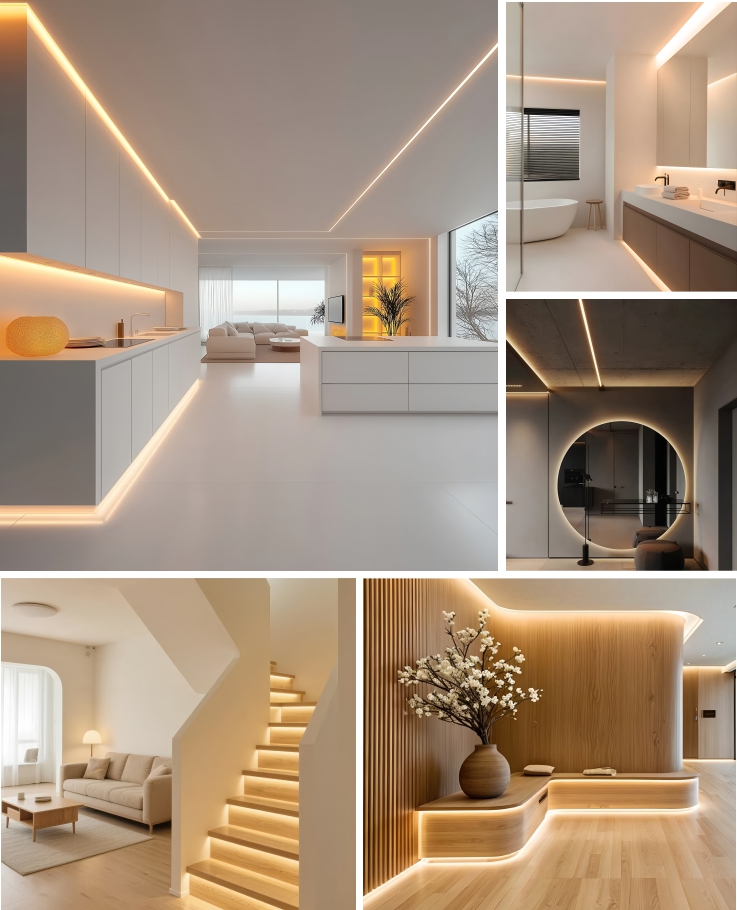

Application Case

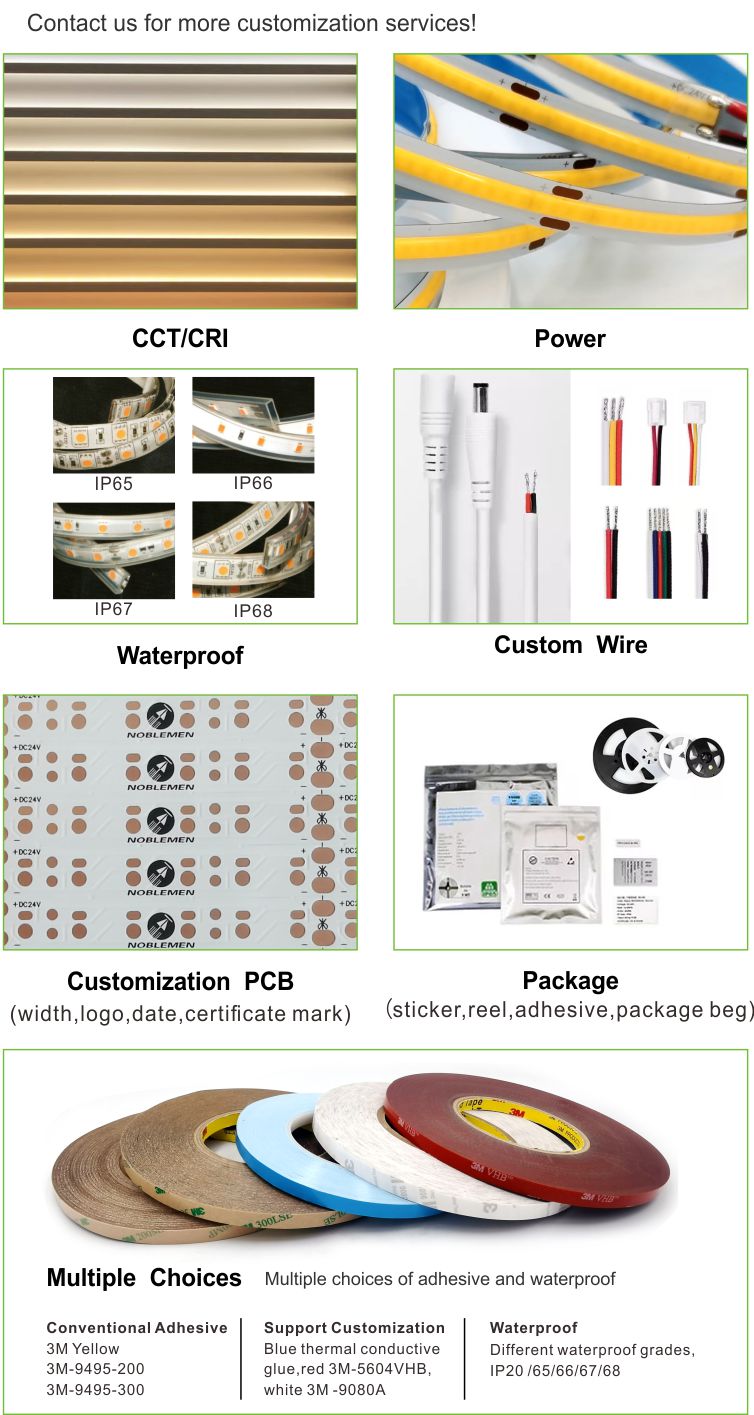

Customization Services
Custom Service
Frequently Asked Questions
❓ Are you a manufacturer or a trading company?

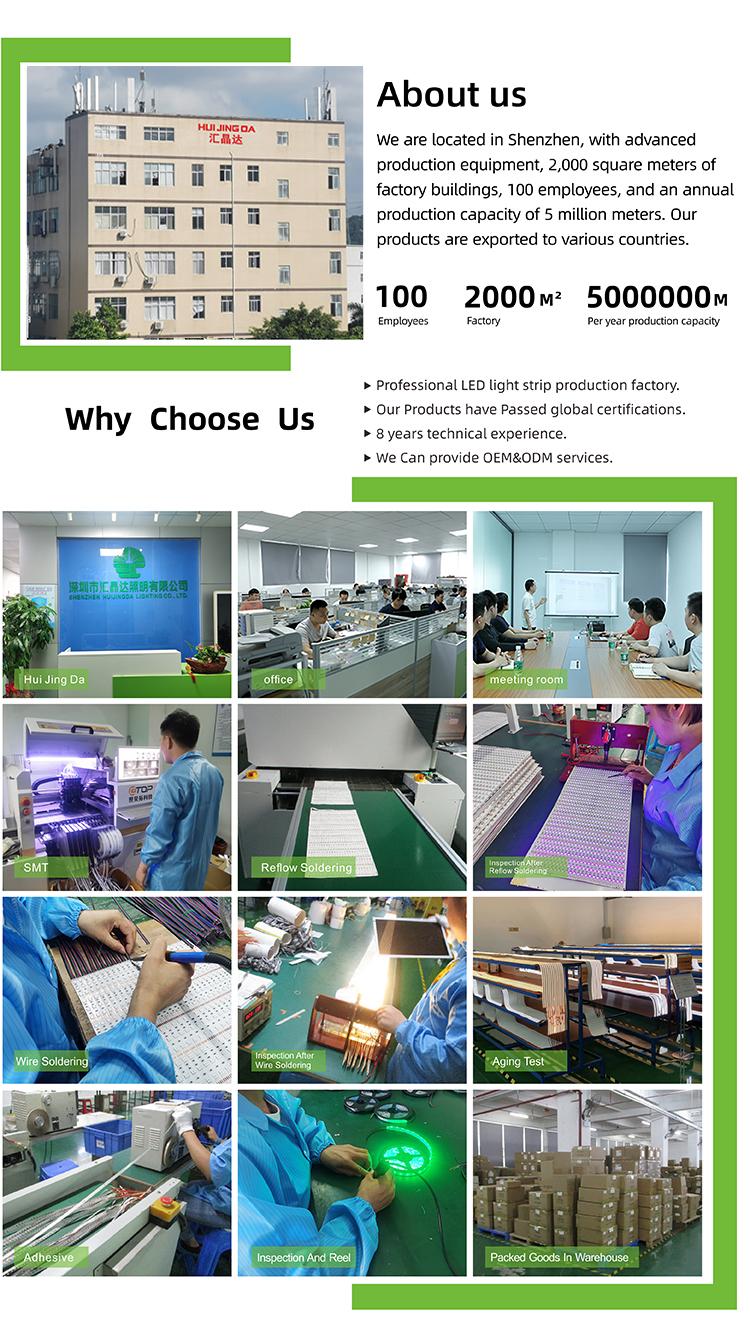

We are a professional Led light strip manufacturer with a 2000 square meter facility located in China.
❓ Do you offer free samples for testing?
Yes, we can offer free samples. Simply send us an inquiry and our engineers will reply within 12 hours.
❓ What is the typical lead time for orders?
Usually 8-10 days for non-waterproof orders and 2 weeks for waterproof orders. Samples take 3-5 days.
❓ Can you provide custom assembly or OEM products?
Yes, we are highly experienced in OEM/ODM service and have developed many unique items with clients globally.
❓ What kind of warranty do you provide?
We provide a 3-year warranty for most items, and a 5-year warranty is also available upon request.
❓ What LED chips are used in your products?
We use brand LED chips like SAMSUNG, Epistar, and Sanan with LM-80 reports, or customized chips provided by clients.
