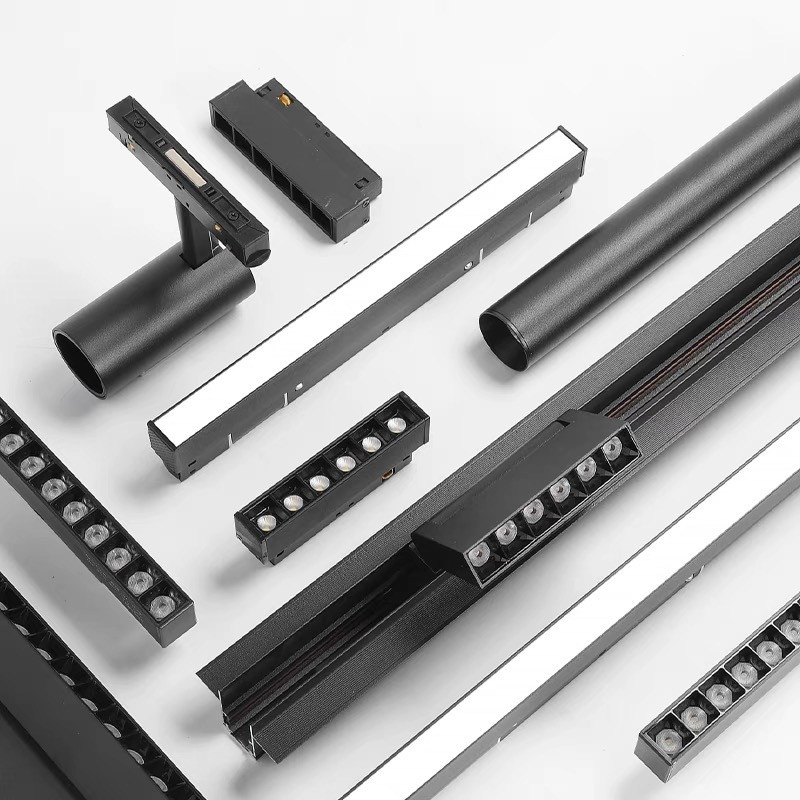

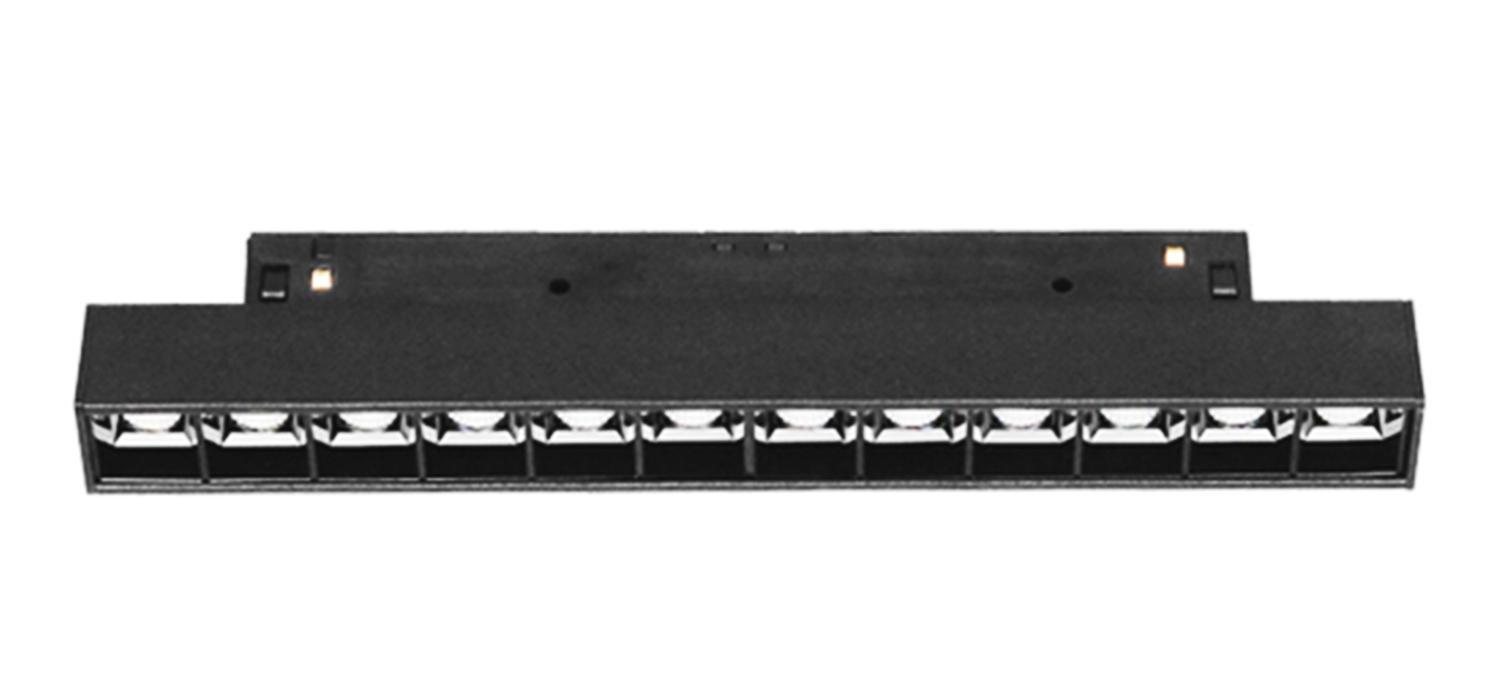

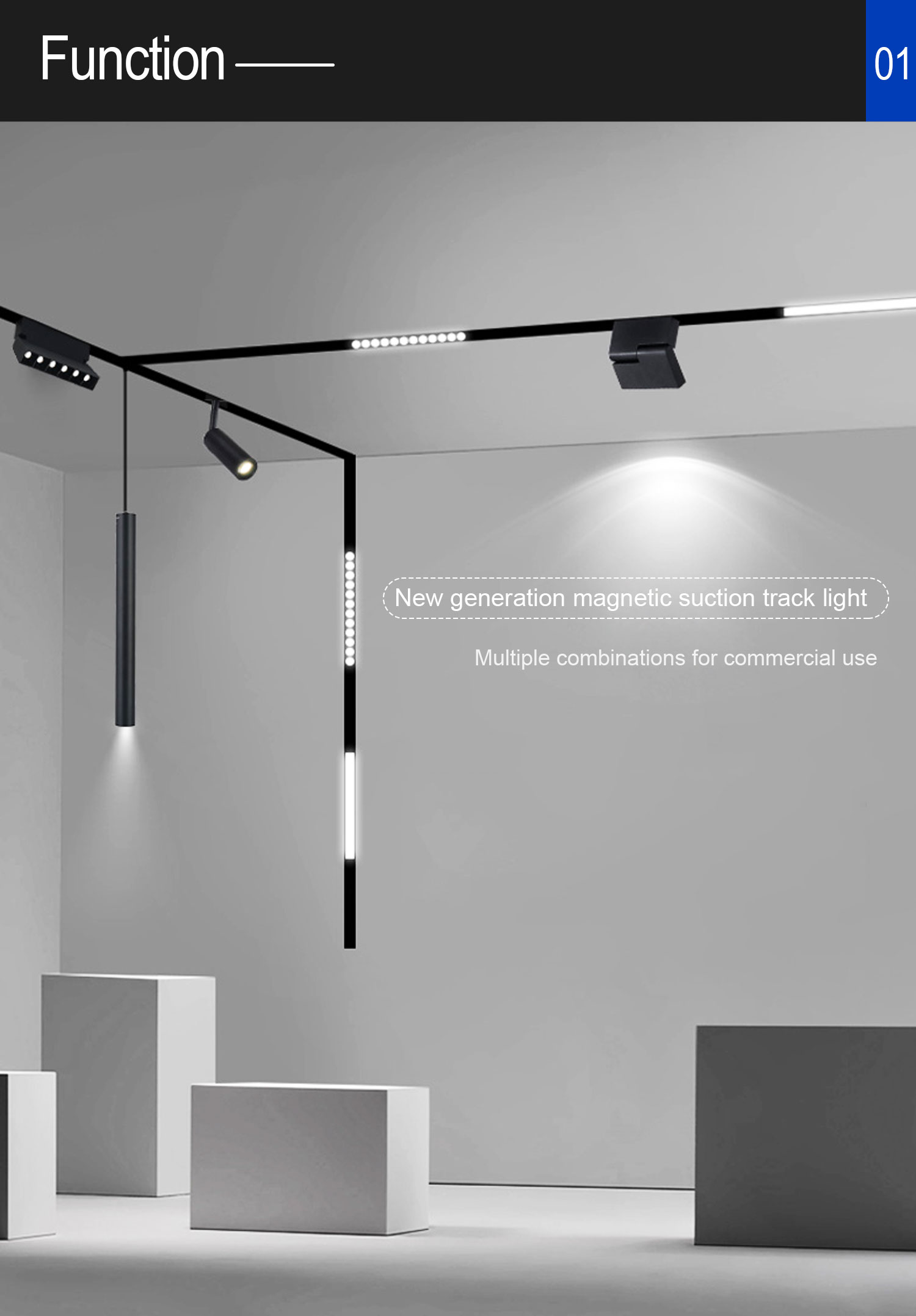

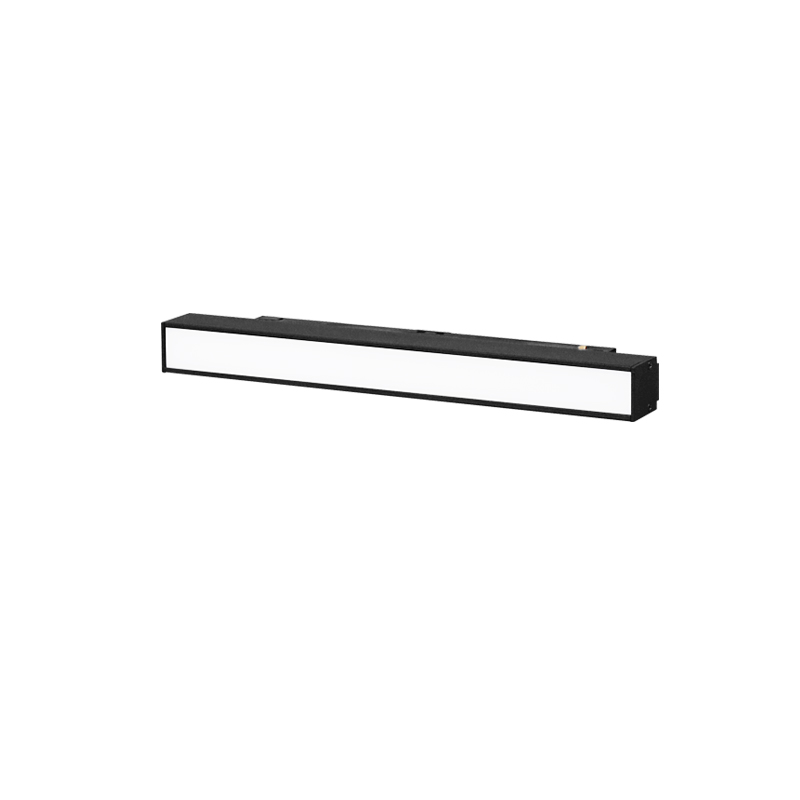

Magnetic track lights are a highly versatile lighting system that allows for modular combination based on user requirements. They generally consist of four standard modules:

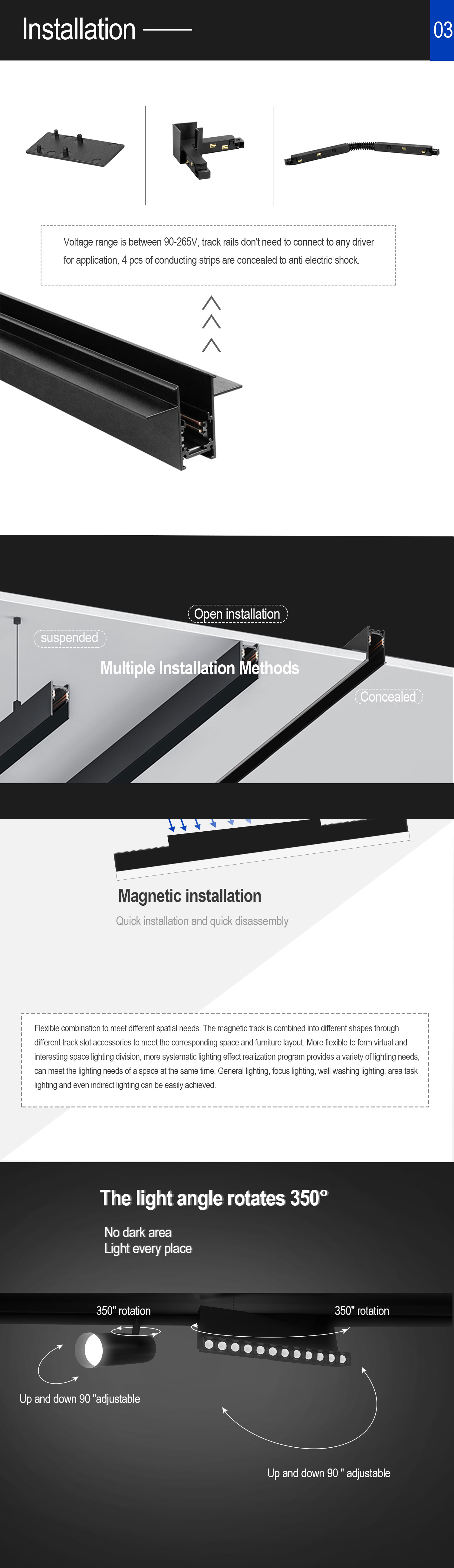

Different designs are available to choose from, accommodating customizable layouts. The magnetic mechanism enables faster, secure installations.
| Item Parameter | Value |
|---|---|
| Item Type | TRACK LIGHTS |
| Color Temperature(CCT) | 3000K/4000K/5000K/6000K |
| Lamp Luminous Efficiency(lm/w) | 100 |
| Light Source | LED |
| Support Dimmer | customizable |
| Lighting solutions service | Lighting and circuitry design, DIALux evo layout, auto CAD layout |
| CRI (Ra>) | 90 |
| Working Lifetime(Hour) | 50000 |
| Lamp Body Material | Aluminum |
| Warranty(Year) | 5-Year |
| MOQ (Pcs) | 100 |

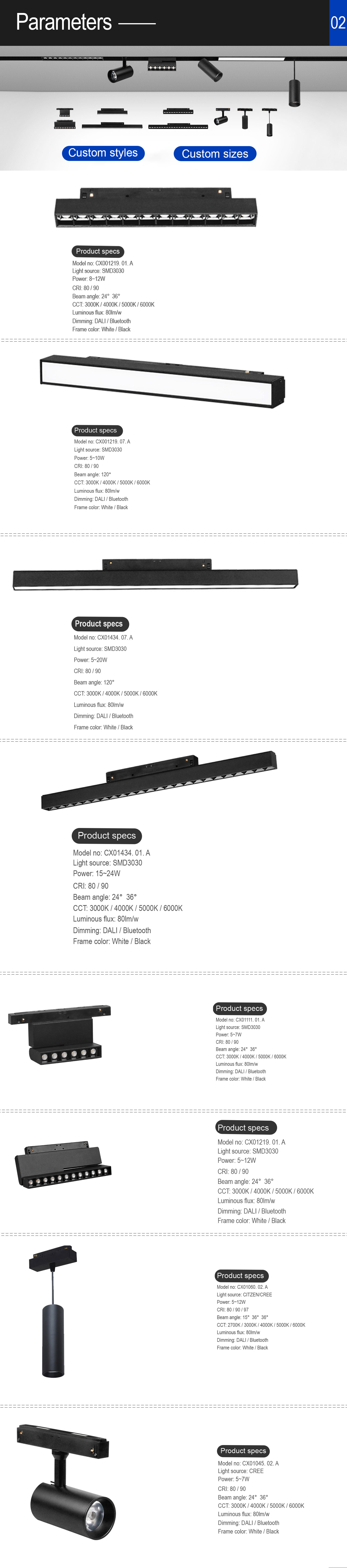

| Model | Size (L*W*H) | Power | Input Voltage | Beam Angle |
|---|---|---|---|---|
| LH-TMAS06-XXXX | L112*W22*H45mm | 6W | DC48V | 36° |
| LH-TMAS12-XXXX | L220*W22*H45mm | 12W | DC48V | 36° |
| LH-TMAS18-XXXX | L328*W22*H45mm | 18W | DC48V | 36° |
| LH-TMAS24-XXXX | L435*W22*H45mm | 24W | DC48V | 36° |
| LH-TMAS30-XXXX | L543*W22*H45mm | 30W | DC48V | 36° |
| LH-TMAS40-XXXX | L1080*W22*H45mm | 40W | DC48V | 36° |

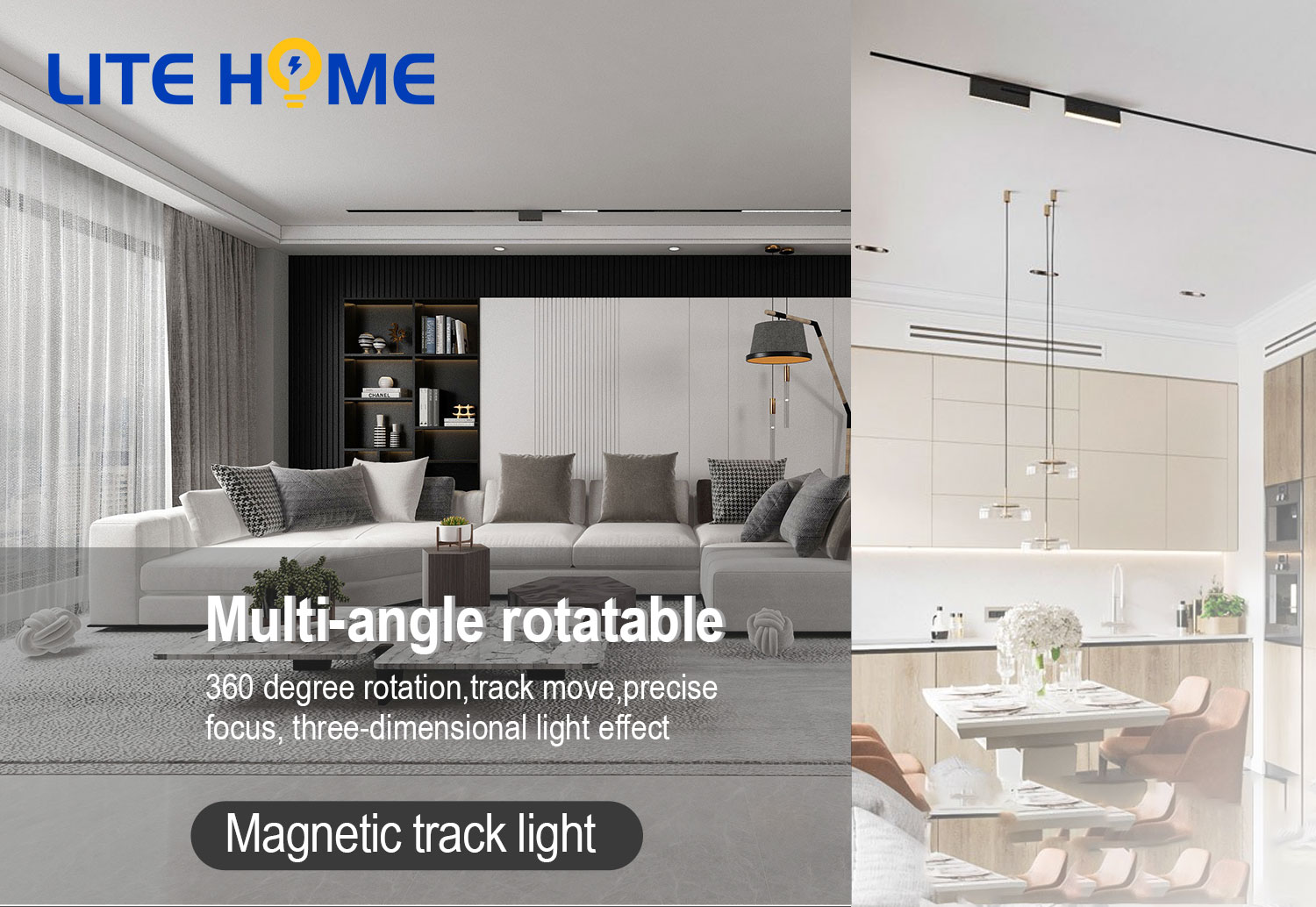

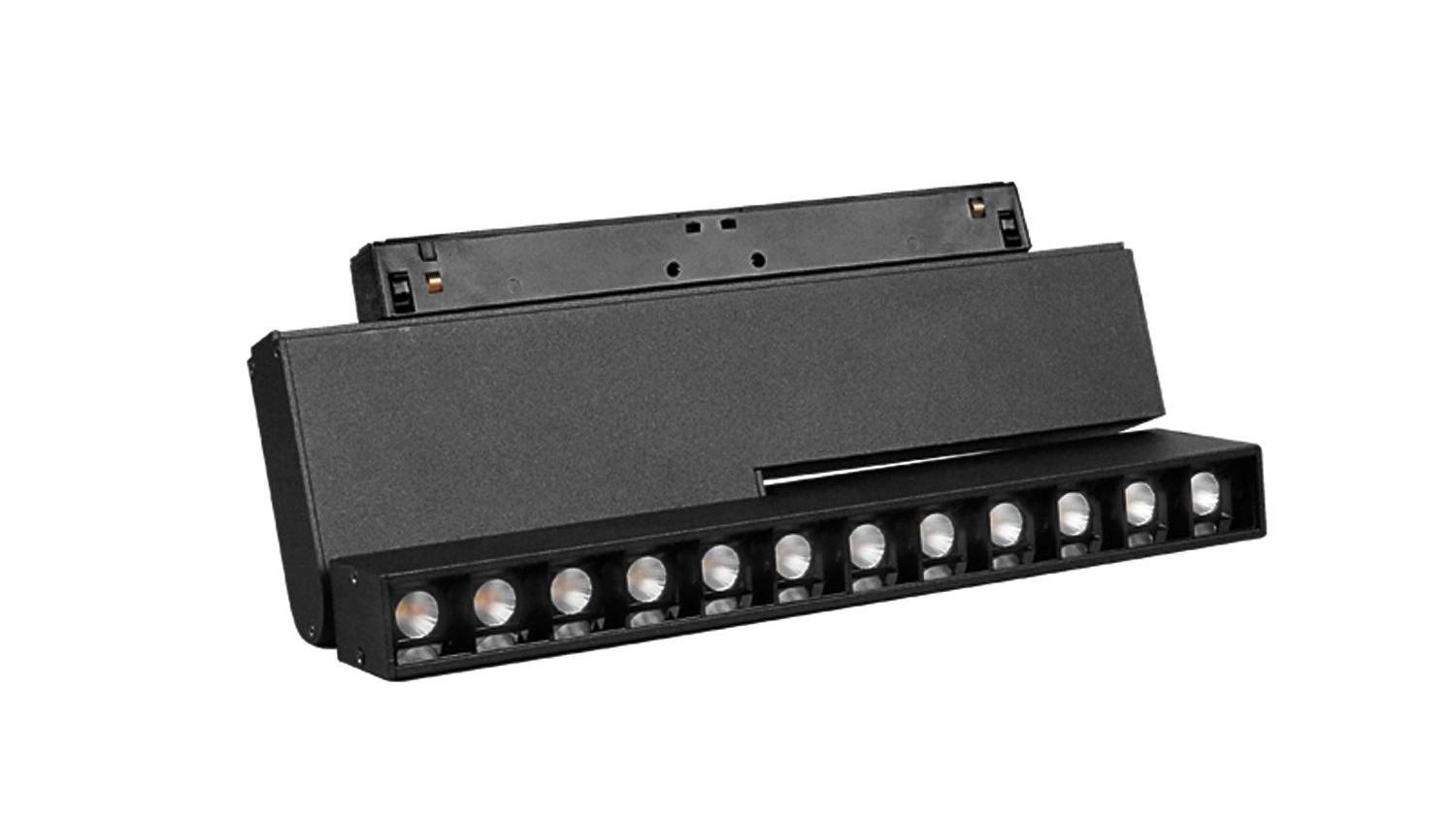

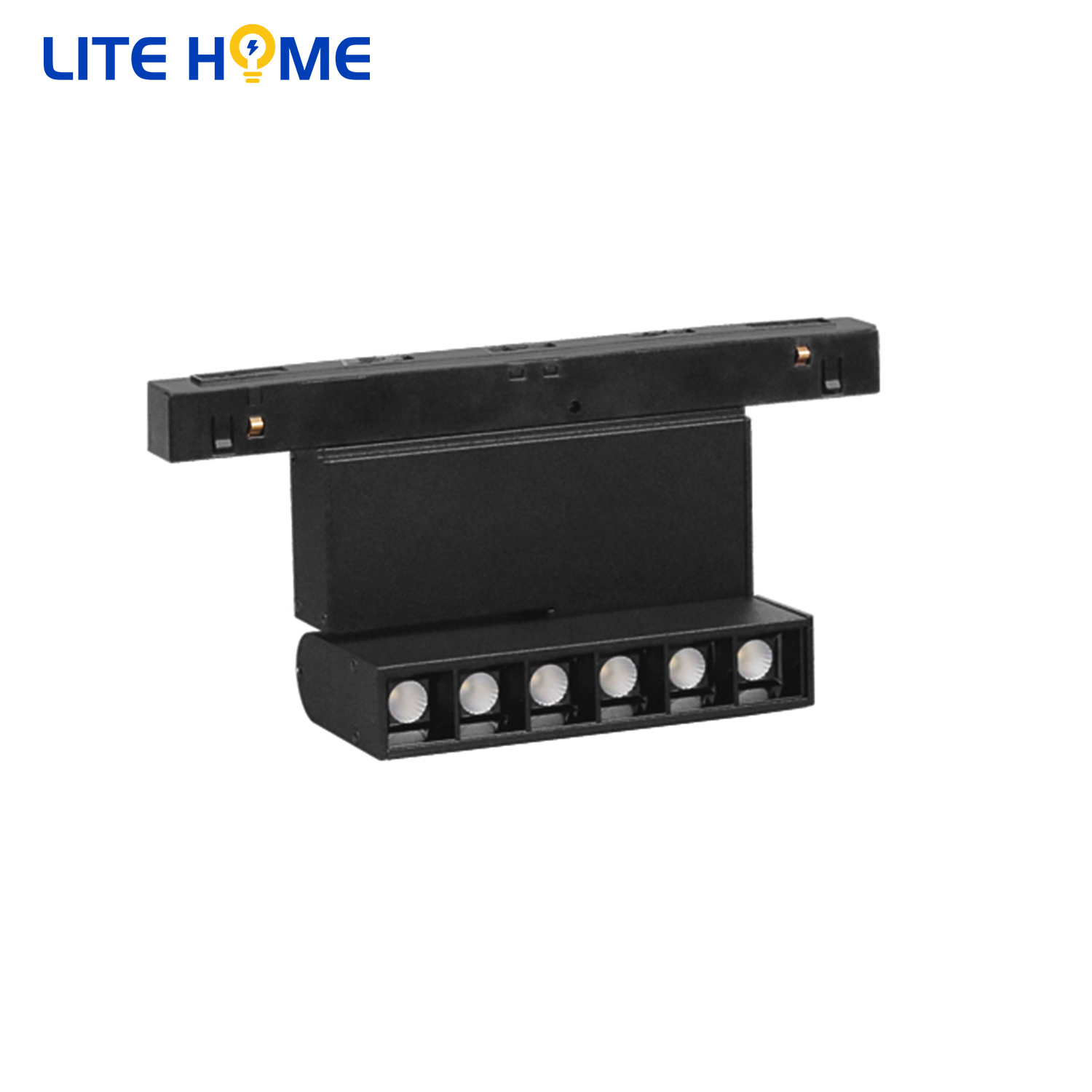

Rotatable: Swiveling lamp holders allow wide degrees of movement, providing the freedom to point light in any desired direction.
Dimmable: Adjust brightness levels using smart dimmers to create the ideal ambiance for work, display, or relaxation.

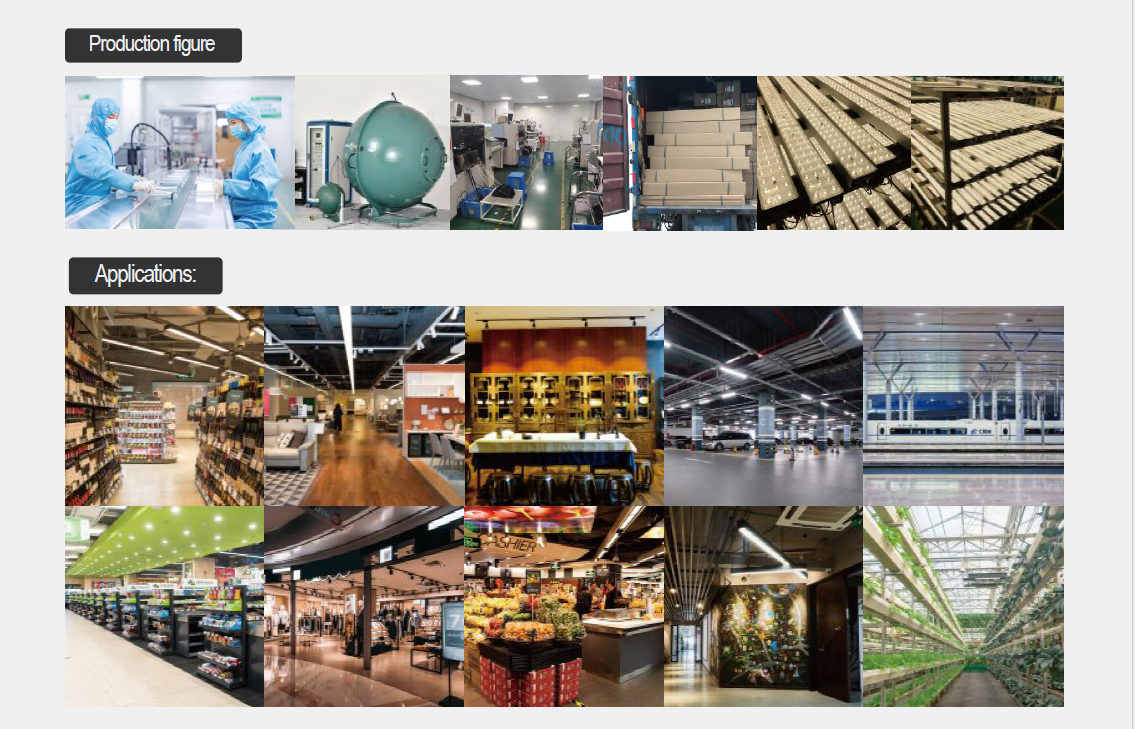

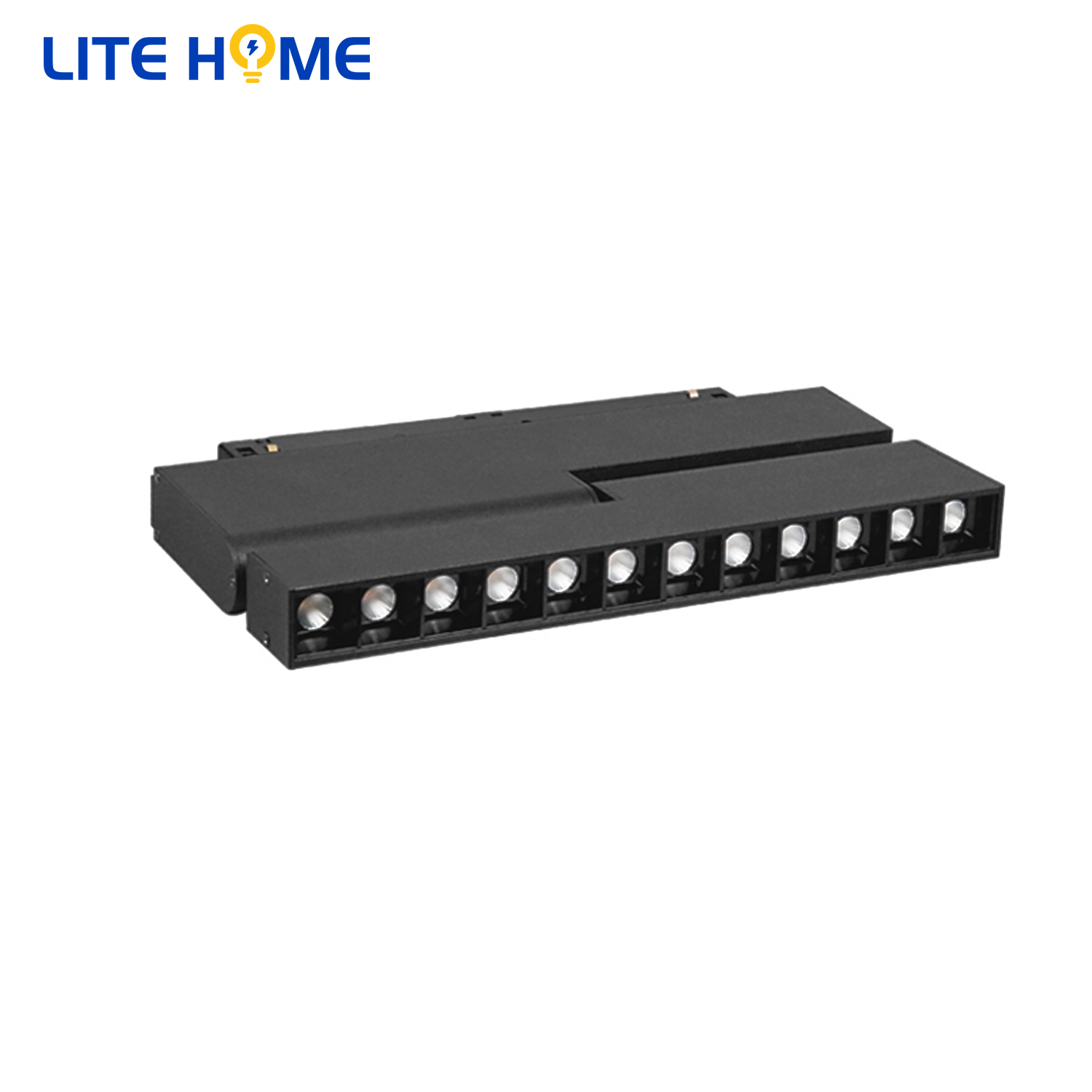

Designed with a unique, deep rotating stepped lens that refracts light multiple times to prevent direct glare. This delivers soft and uniform lighting that mitigates visual fatigue, making it appropriate for retail, learning, manufacturing environment, and homes.

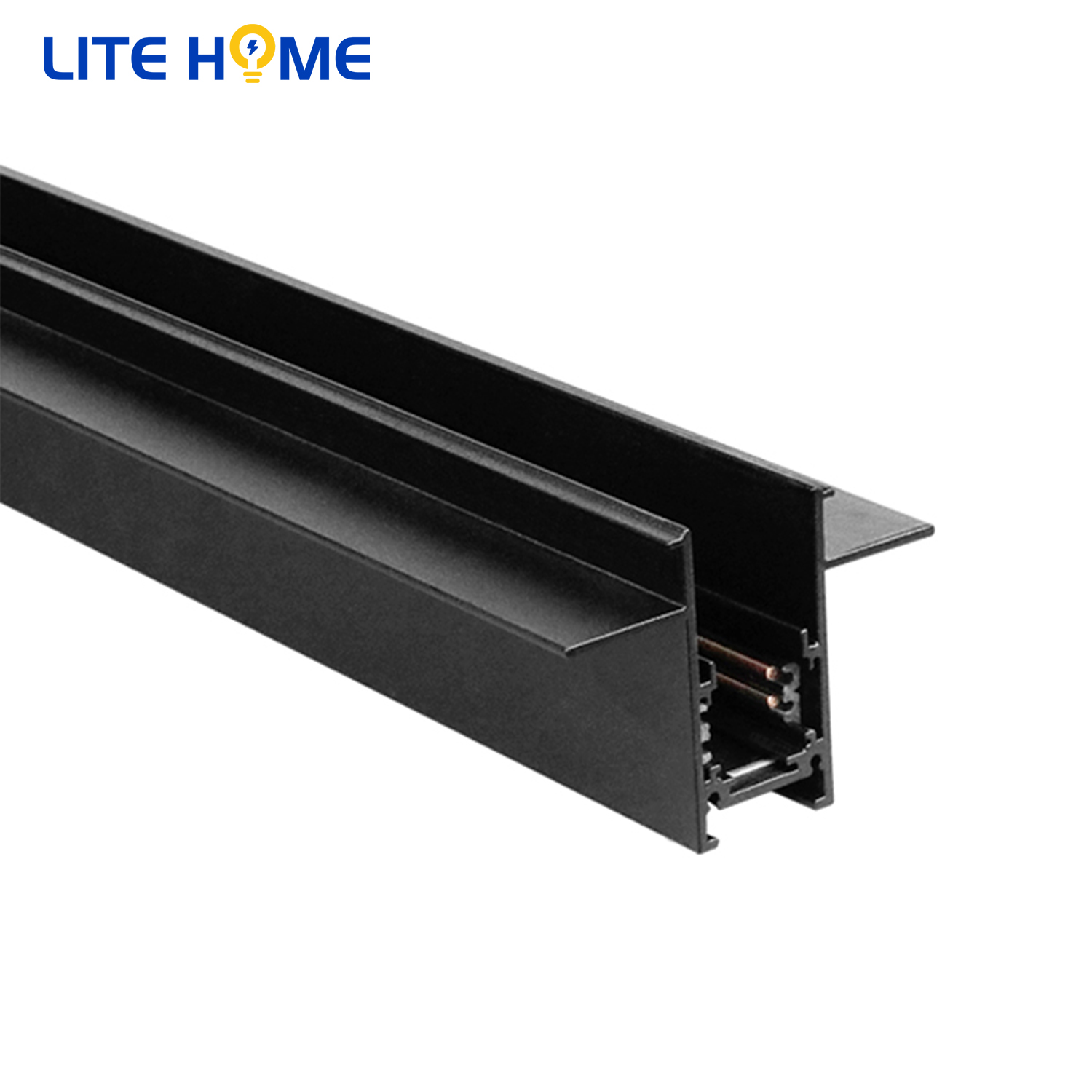

The solid aluminum casing ensures excellent thermal management, dispersing heat quickly to ensure structural stability, prevent overheating, and increase product longevity.
