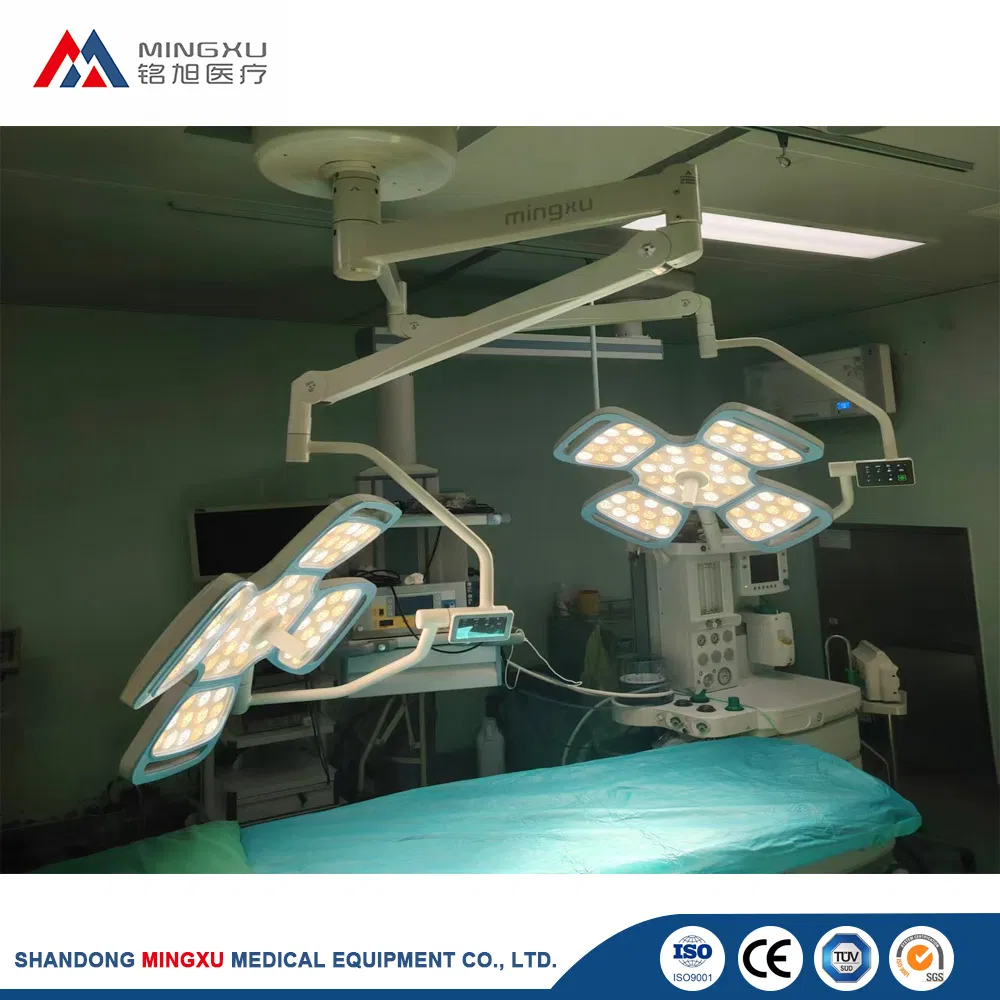

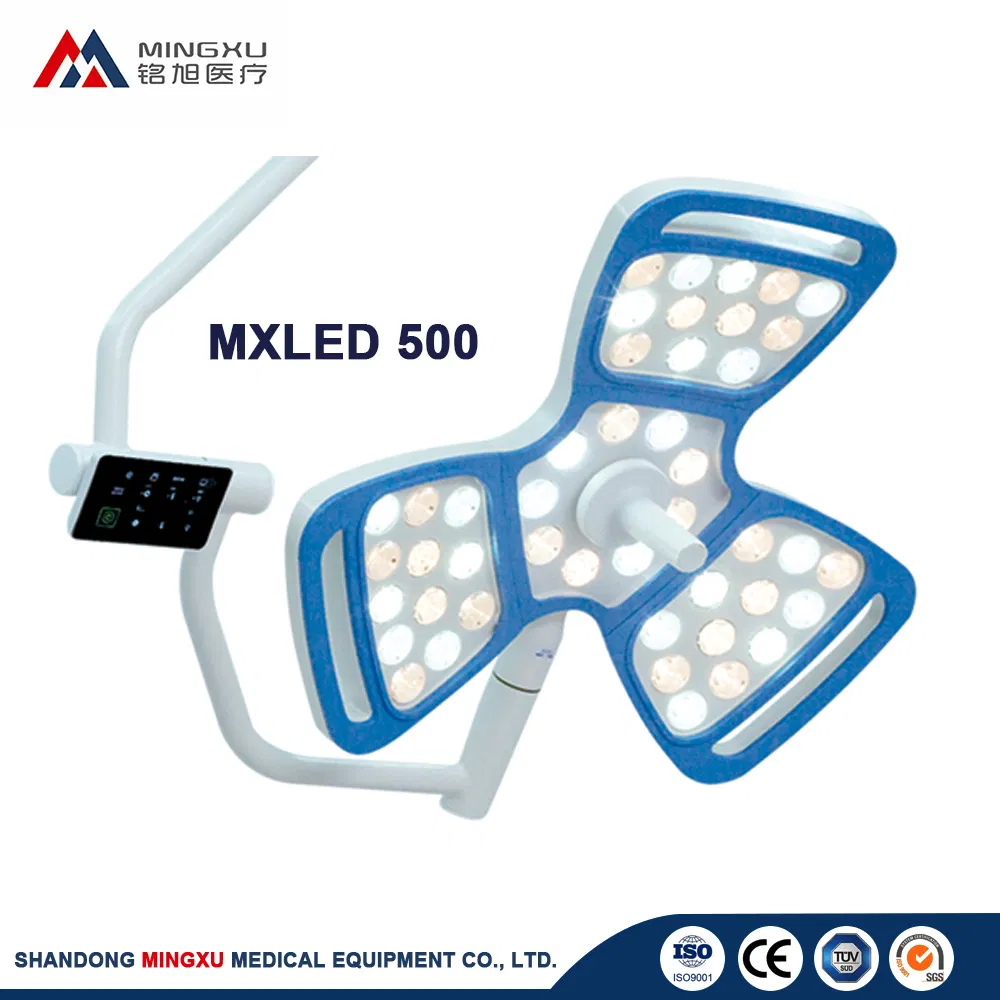

LED-700/500 Double Headed Ceiling Surgical Shadowless Light for One-Stop Operation Room Supplies

Customization: Available
Type: Operating Light
Kind: Operating Room Equipment

Product Description

  • Overview
  • Product Specifications
  • FAQ
Basic Info.
Model NO. MXLED700/500
Certification CE, ISO13485
Group All
LCD Display With LCD Display
Model Number Mxled700/500
Warranty 1year
Certificate CE ISO
MOQ 1set
After-Sale Service Free Spare Parts
Packing Wooden Case
OEM/ODM Yes
Average Bulb Life (H) Greater Than or Equal to 60000
Bulb Power 1W
Input Power 150va
Optimum Mounting Height (mm) 2800-3000
Bead Quantity 68
Transport Package Wooden Box
HS Code 8539510000
Production Capacity 50000PCS/Year
Product Specifications

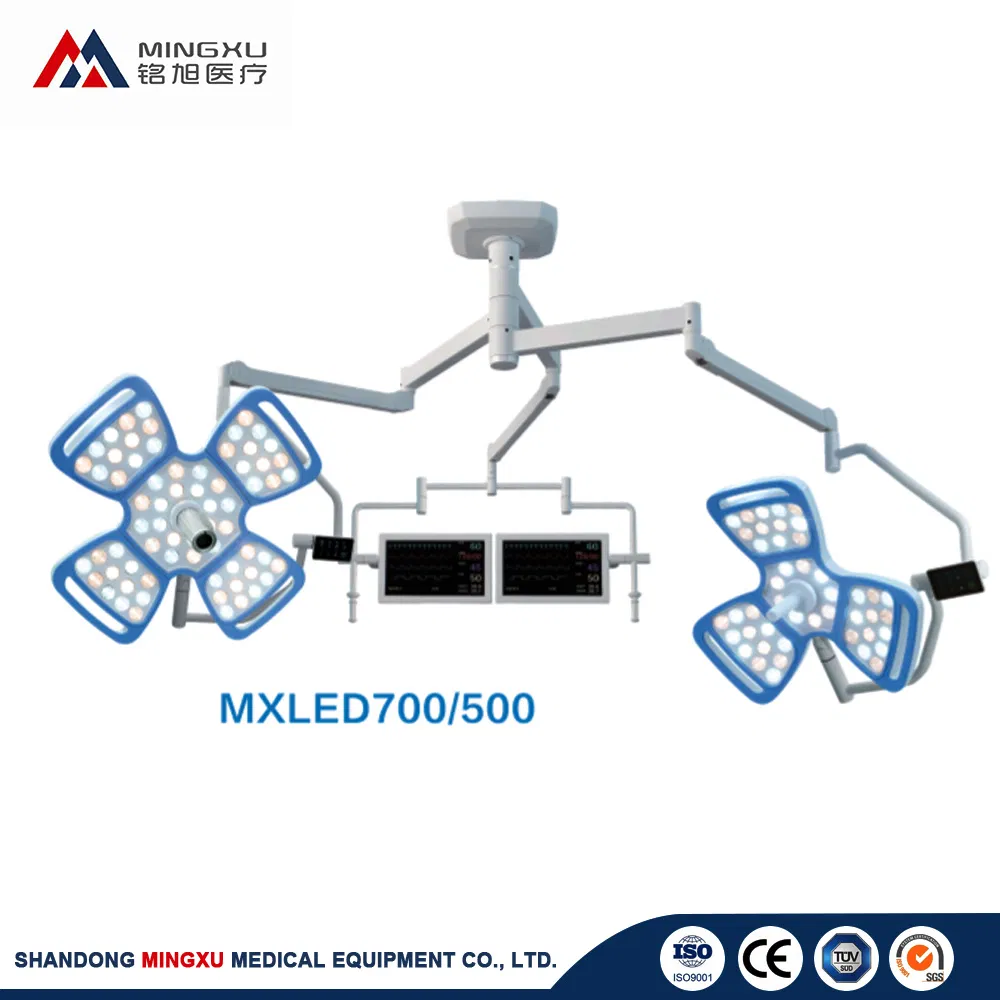

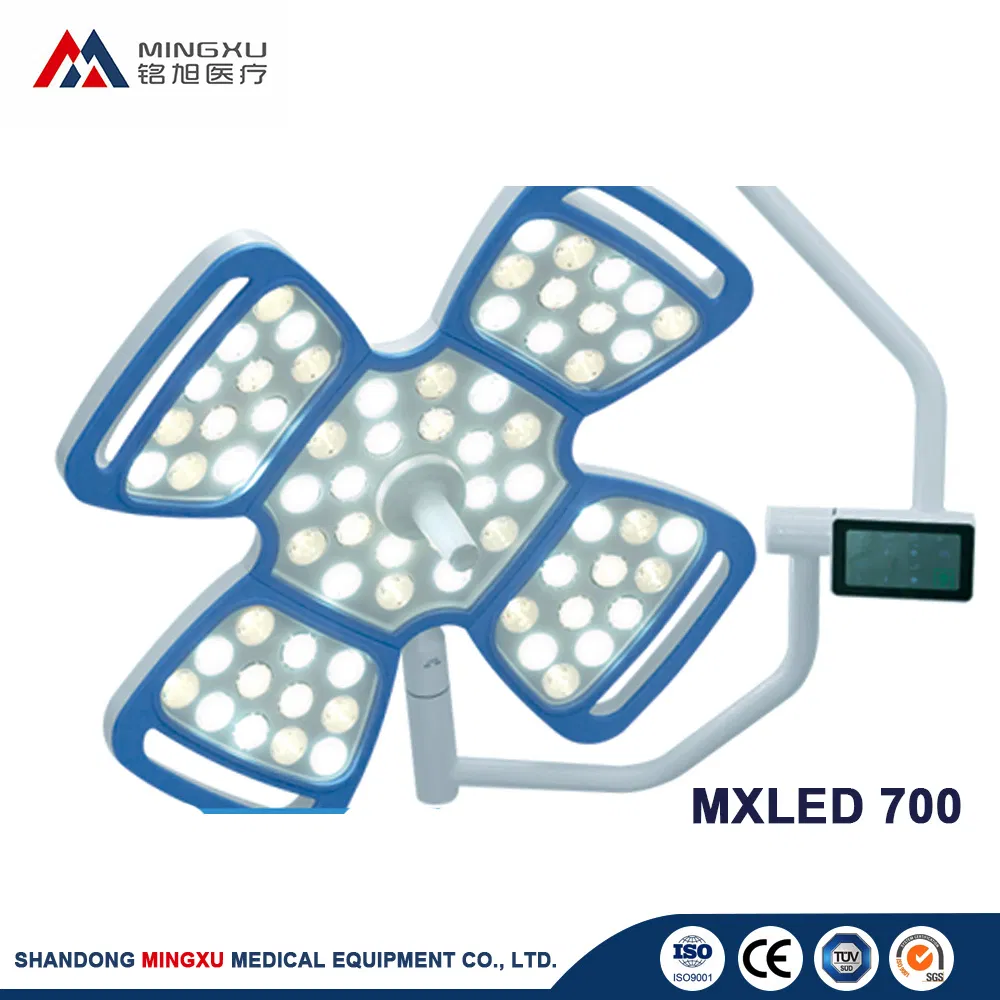

Lamp head model MXLED 700 MXLED500
Number of lamp beads 68 68
Center Illuminance(LUX) 110000-160000 (10 levels adjustable) 110000-160000 (10 levels adjustable)
Color Temperature(K) 3500-5000 (6 levels adjustable) 3500-5000 (6 levels adjustable)
Color Rendering Index (Ra) ≥96% ≥96%
Spot diameter (mm) 150-300 150-300
Light beam depth (mm) ≥1200 ≥1200
Irradiance(W/m2) ≤400 ≤400
Head temperature rise(ºC) ≤1 ≤1
Temperature rise in the surgical working area ≤2 ≤2
Operating radius(mm) ≥2200 ≥2200
Working radius(mm) 600-1800 600-1800
Supply voltage 220V±22V 50HZ±1HZ 220V±22V 50HZ±1HZ
Input Power 150VA 150VA
Average life of lamp(h) ≥60000 ≥60000
Lamp power 1W 1W
Optimum installation height(mm) 2800-3000 2800-3000
Product Configuration List
Product Configuration List: Delve into the extensive configuration list of our Efficient Surgical Light, designed to meet the highest standards of medical equipment. This LED Medical Instrument is expertly assembled with cutting-edge components to deliver unparalleled performance and reliability in the operation theatre. Uncover the top-tier specifications that set our product apart.
Number Name Quantity Remark
1 Base 1
2 Cross arm 2
3 360° Balance Arm 2
4 Lamp holder 2
5 700 lamp holder lamp beads 136
6 Handle 2 2 extra
7 Hexagon wrench s=3,s=4,s=5,s=6,s=8 1 each
8 Small flat screwdriver 1
9 Phillips screwdriver 1
10 Certificate 1
11 User Manual 1
12 Product warranty card 1
Frequently Asked Questions
Q Are you a manufacturer?
Yes, we are a professional manufacturer with a research and development center of more than 5,000 square meters and a standardized production workshop of more than 20,000 square meters. We have our own R&D team and sales team, providing you with a one-stop service.
Q Do you have CE, ISO13485?
Yes, our products are approved by CE, ISO13485.
Q Is OEM & ODM available in your factory?
Yes, you just offer us the necessary documents and then we will produce the products according to your requirements.
Q What are your packing details?
1. Wooden case or carton package, standard export packages.
2. All of the productions are inspected carefully by QC before delivery.
Q What is your delivery time?
Usually, we make merchandise inventory. If we have the products in stock, the delivery time is 5-10 days after receiving the deposit; if we don't have the products in stock, we will arrange the production right away, and the delivery time will be 20-30 days, depending on the quantity of the order.
Q What is your minimum order quantity (MOQ)?
Our minimum order is 1 set.
