Overview
Model NO.X666
Power7W/12W/18W/30W/35W
Base MaterialAluminum
UsageRoom
Life50000h
IP RatingIP20
CertificationCE, RoHS, Iqs9001/Bis
Power SourceAC
Electric Current TypeAC
Input Voltage100-240V
LED ChipsOsram
ColorIvory White + Sky Gray
Power Options7W/12W/18W/30W/35W
Hole Size78mm
Light SourceCOB
Lamp Luminous Flux(Lm)80lm/W
Color Rendering Index90
Item TypeSpotlights
Warranty Period2 Years
Lighting Solutions ServiceAuto CAD Layout
Lifespan (Hours)50000
Input Voltage(V)150-220V
Working Lifetime(Hour)50000
Product NameLED Spot Light
Working Temperature(℃)-15 - 50
Installation MethodConcealed/Embedded
Transport PackageCustomized
Specification85*48.3mm
OriginChina
HS Code9405409000
Production Capacity5000PCS/Month
Packaging & Delivery
Package Size10.00cm * 10.00cm * 10.00cm
Package Gross Weight1.000kg
Product Description

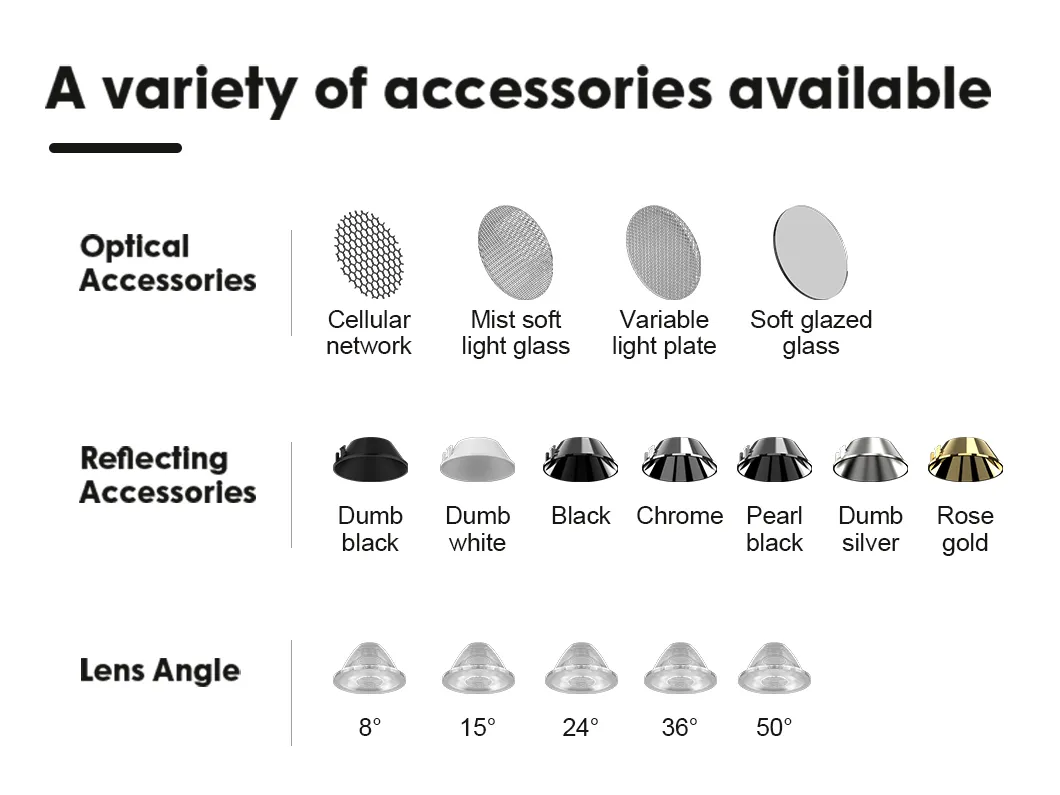

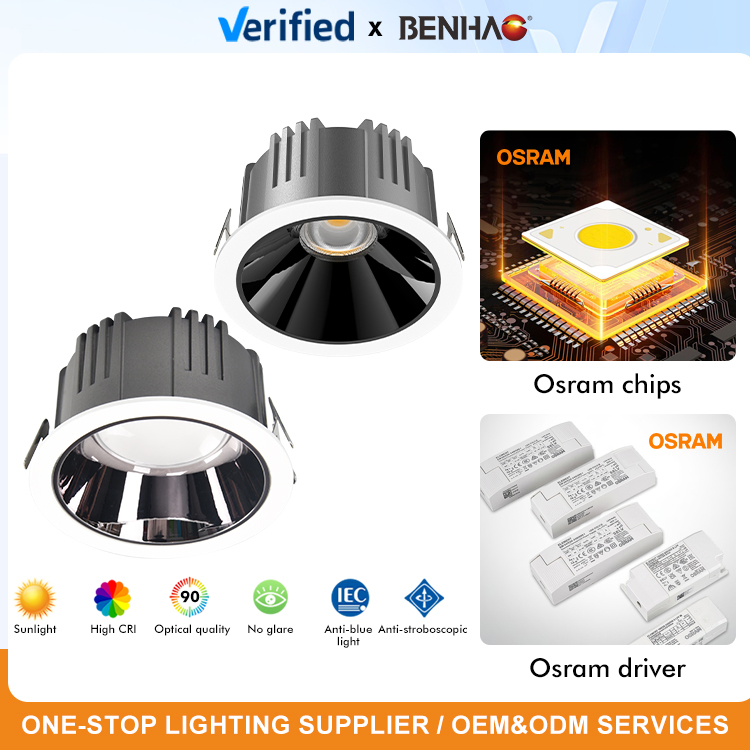

X666 spotlight/downlight series are fitted in a lampholder that installer/end-user can choose the wattage, beam angle and color temperature. It applies LED COB light source which shoots a high luminous flux density, less glare, soft light, and can emit a uniformly distributed light surface. With white bezel and a variety of reflector color, it can easily fit in any decoration.
The advantages of X666 series are:
✓
Energy saving - with high light efficacy chips, less energy comsumption on same luminous flux.
✓

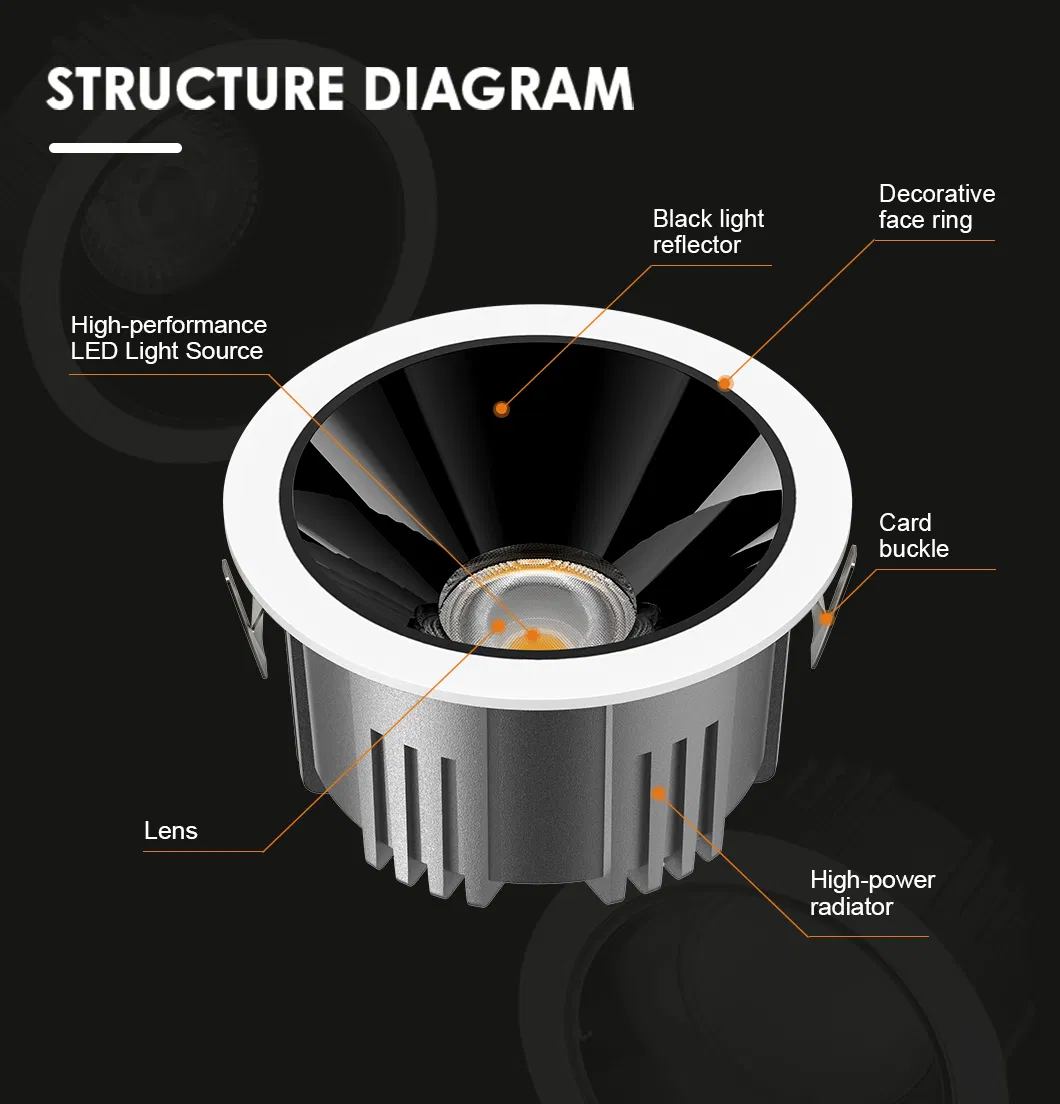

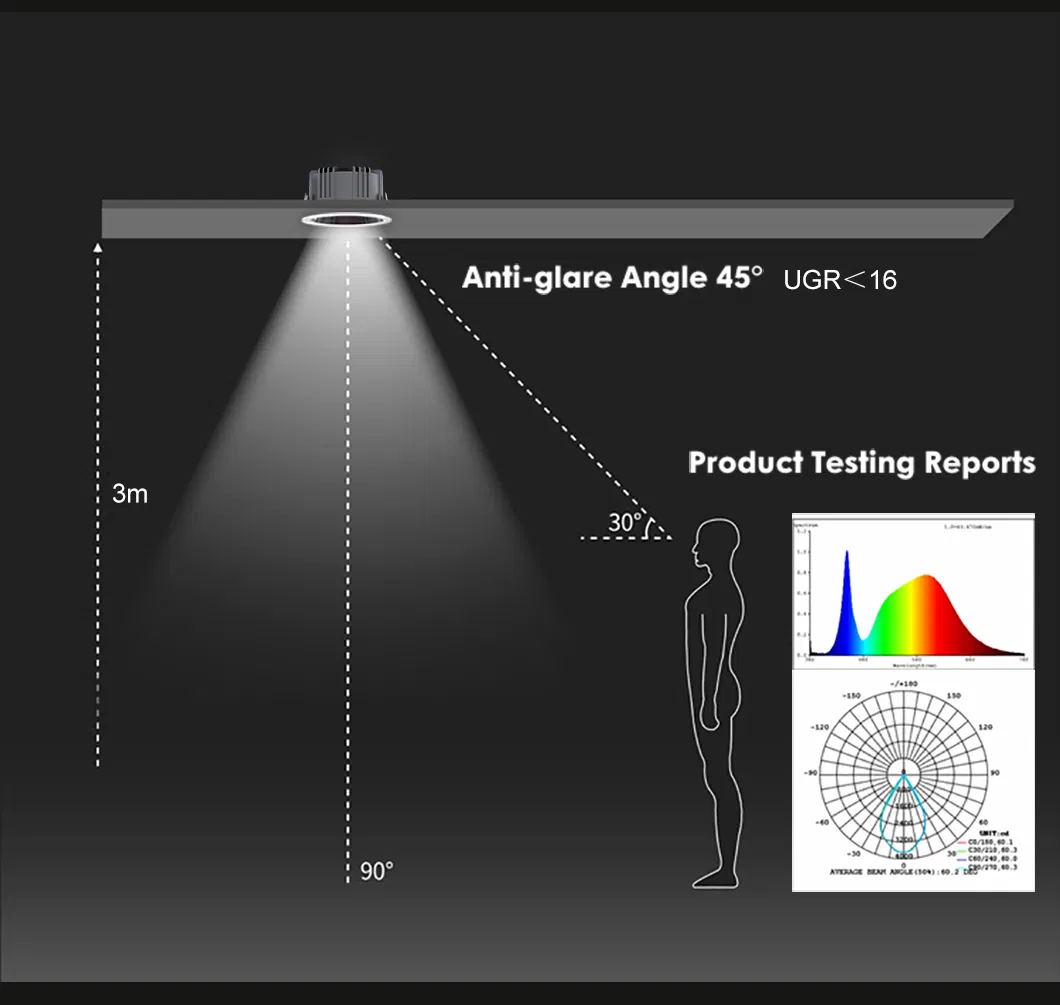

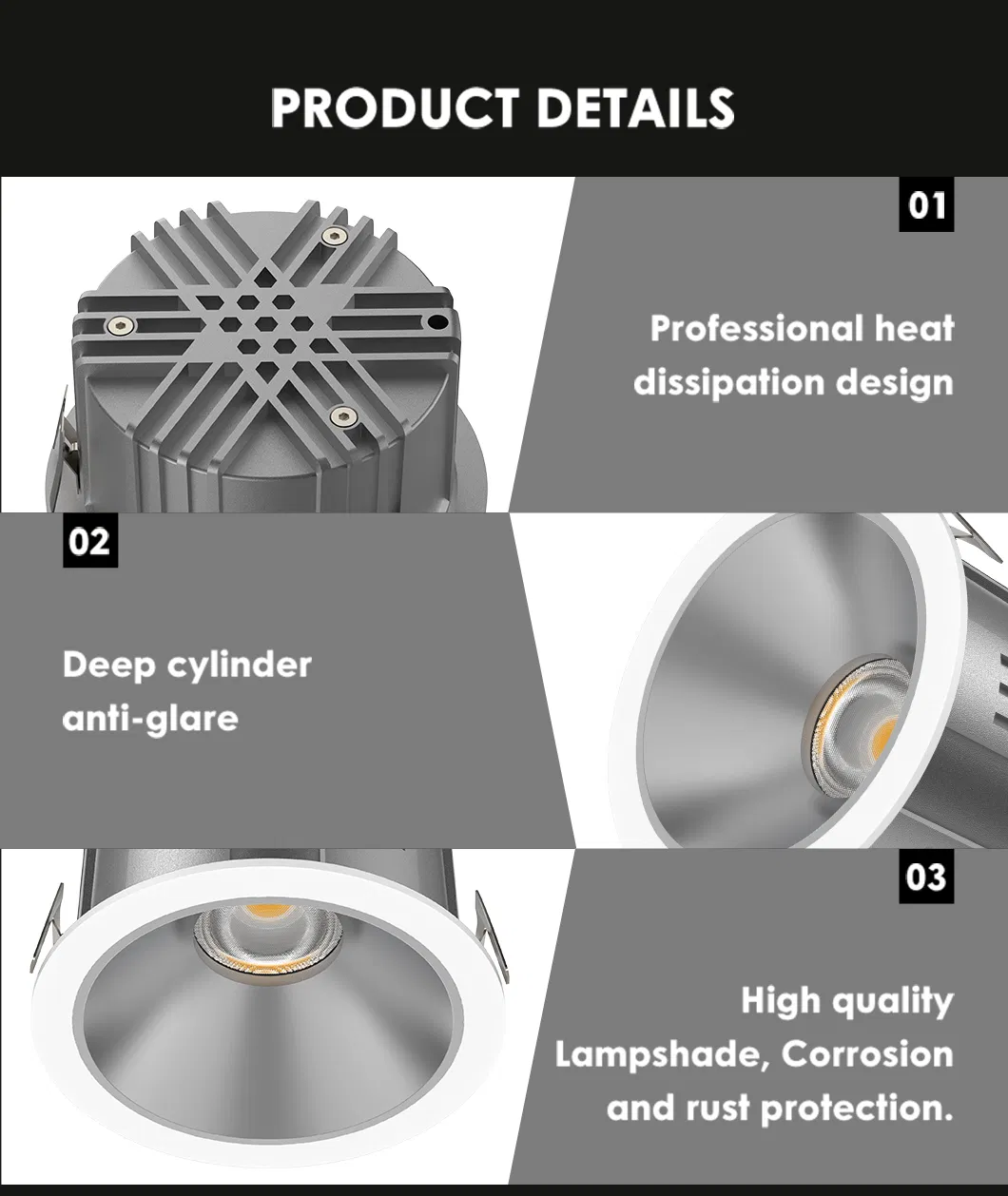

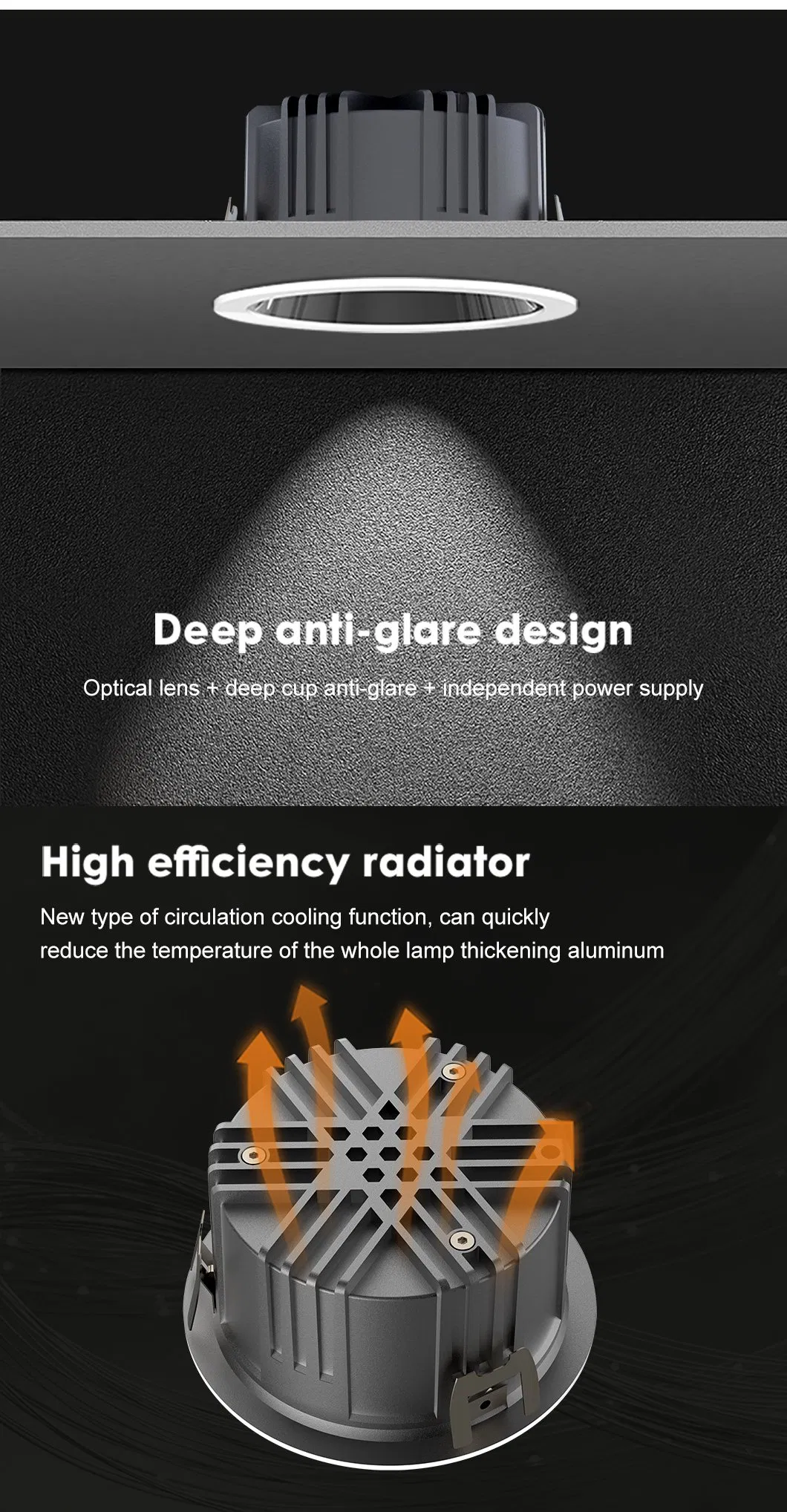

Deep cup anti-glare design - Deep cylinder anti-glare. Anti-glare angle 45°, UGR<16.
✓
Professional heat dissipation design with high efficiency radiator - New type of circulation cooling function, can quickly reduce the temperature of the whole lamp thickening aluminum.
✓
High quality lampshade - Corrosion and rust protection.
X666 series supports customized to be compatible with a variety of intellegent dimming system, like DALI, Tuya, 3 Phase, MIJIA and etc. Support single light, marshalling control. You can control the lights on a control panel or on a smart phone APP.
There are two versions of X666 series, one is LED Downlight, another is LED COB Spotlight.

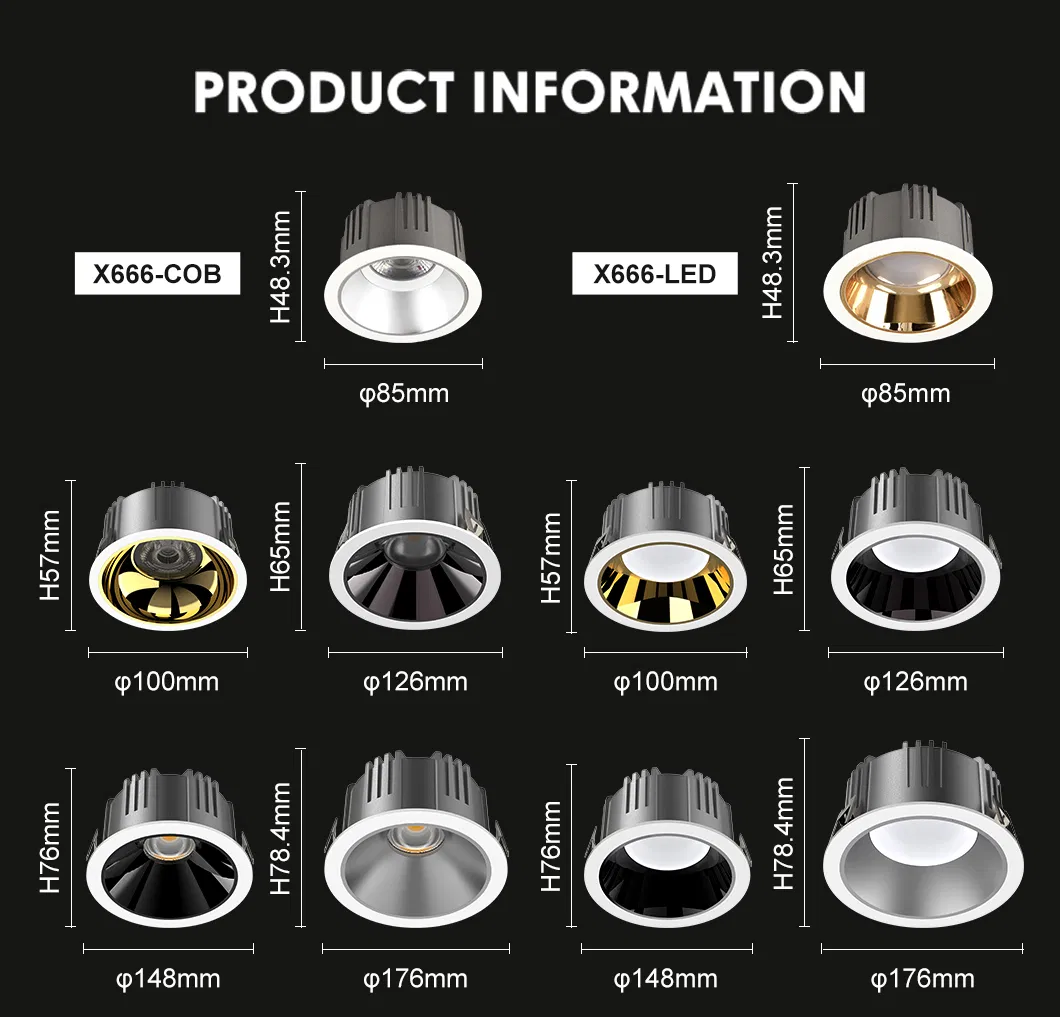

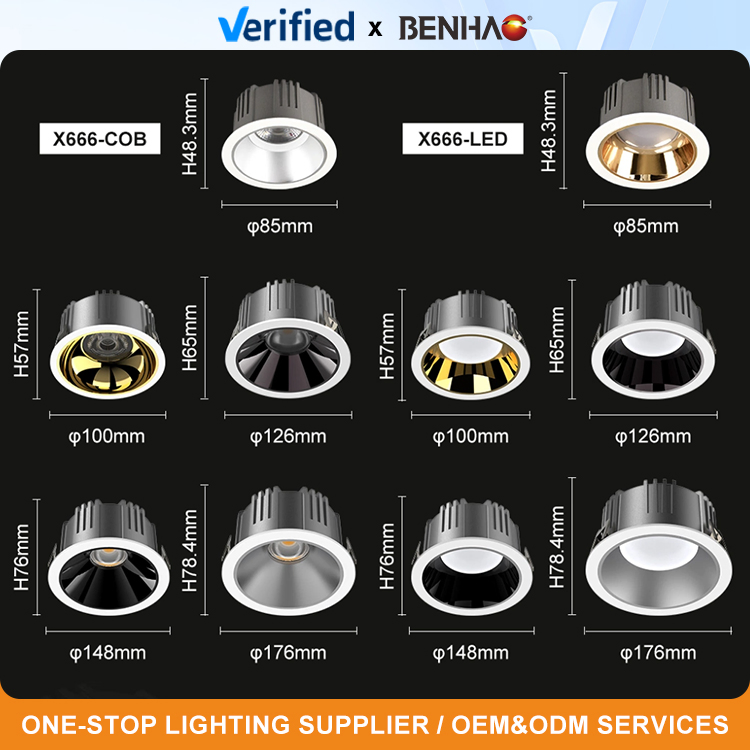

Product Parameters
| Model |
Watts |
Size |
Cut-out |
Beam Angle |
Lamp Body Colour |
Voltage |
| X666-COB |
7W |
85*48.3mm |
78mm |
15° / 24° / 36° |
Ivory + Space gray |
150-220V |
| 12W |
100*57mm |
92mm |
15° / 24° / 36° |
| 18W |
126*65mm |
115mm |
15° / 24° / 36° |
| 30W |
148*76mm |
136.5mm |
24° / 40° |
| 35W |
176*78.4mm |
165mm |
24° / 40° |
| X666-LED |
7W |
85*48.3mm |
78mm |
60° |
| 12W |
100*57mm |
92mm |
60° |
| 18W |
126*65mm |
115mm |
60° |
| 30W |
148*76mm |
136.5mm |
60° |
| 35W |
176*78.4mm |
165mm |
60° |

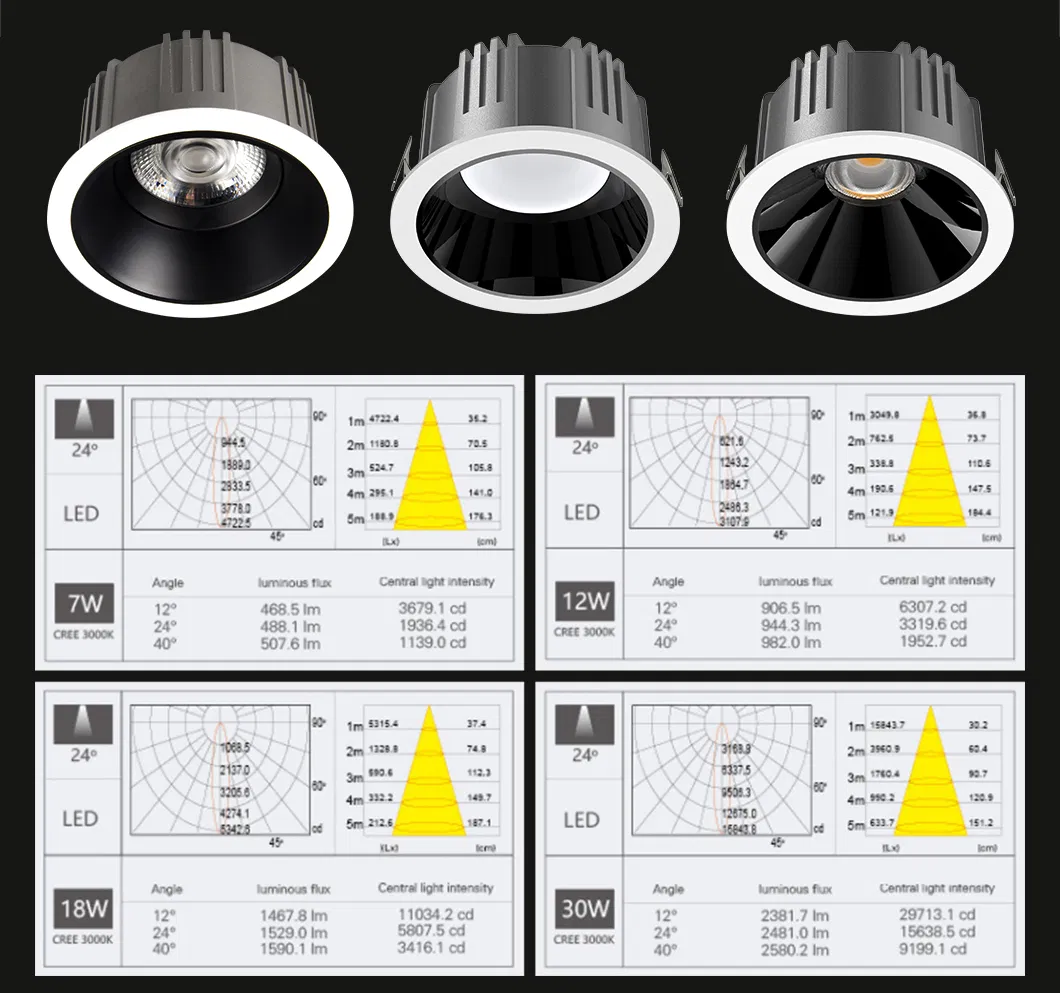

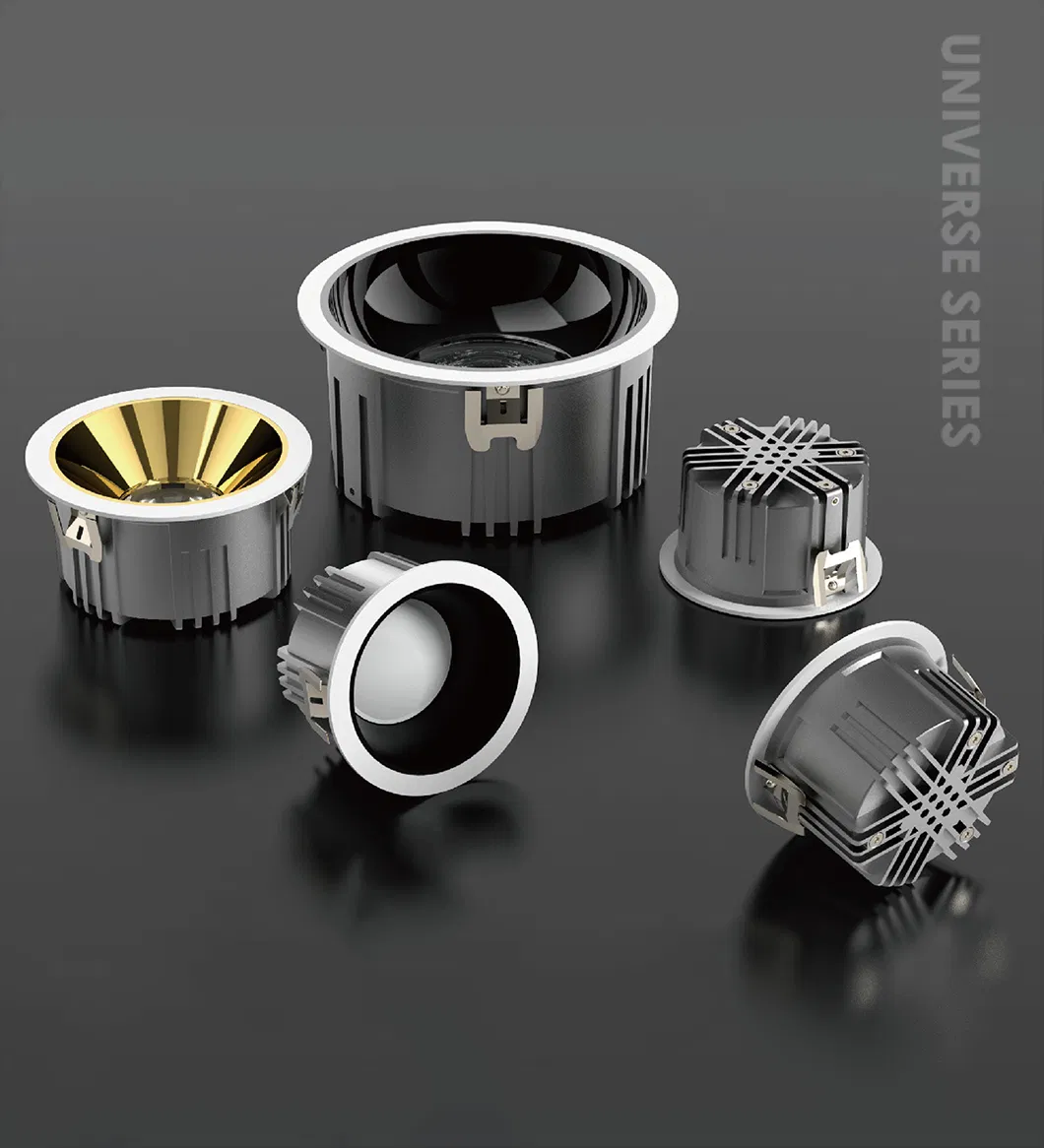

Detailed Photos

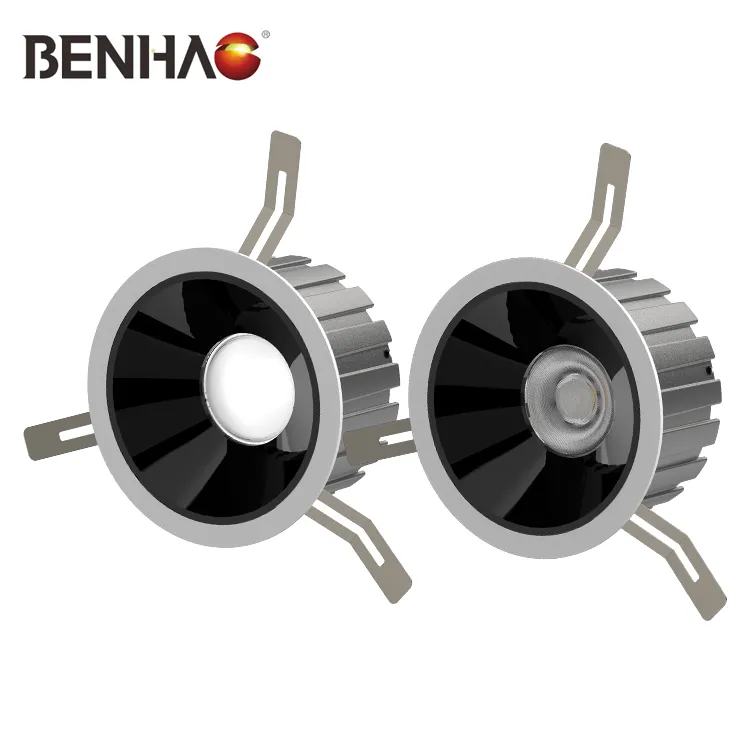

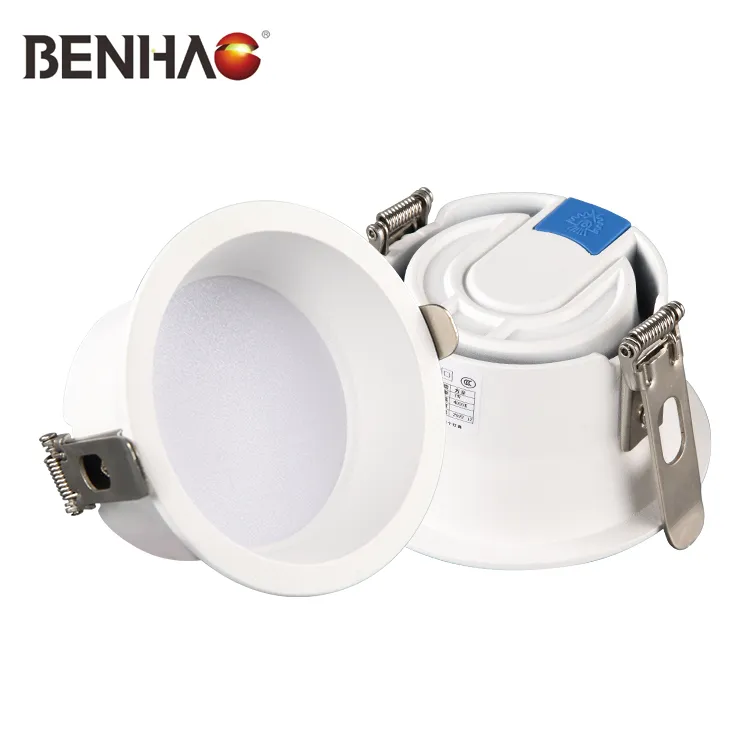

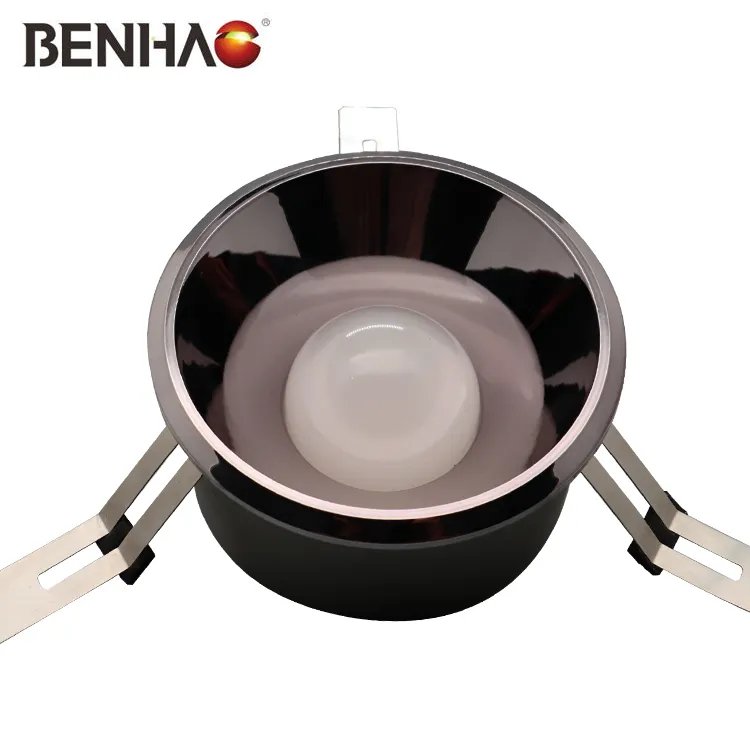

Recommend Products

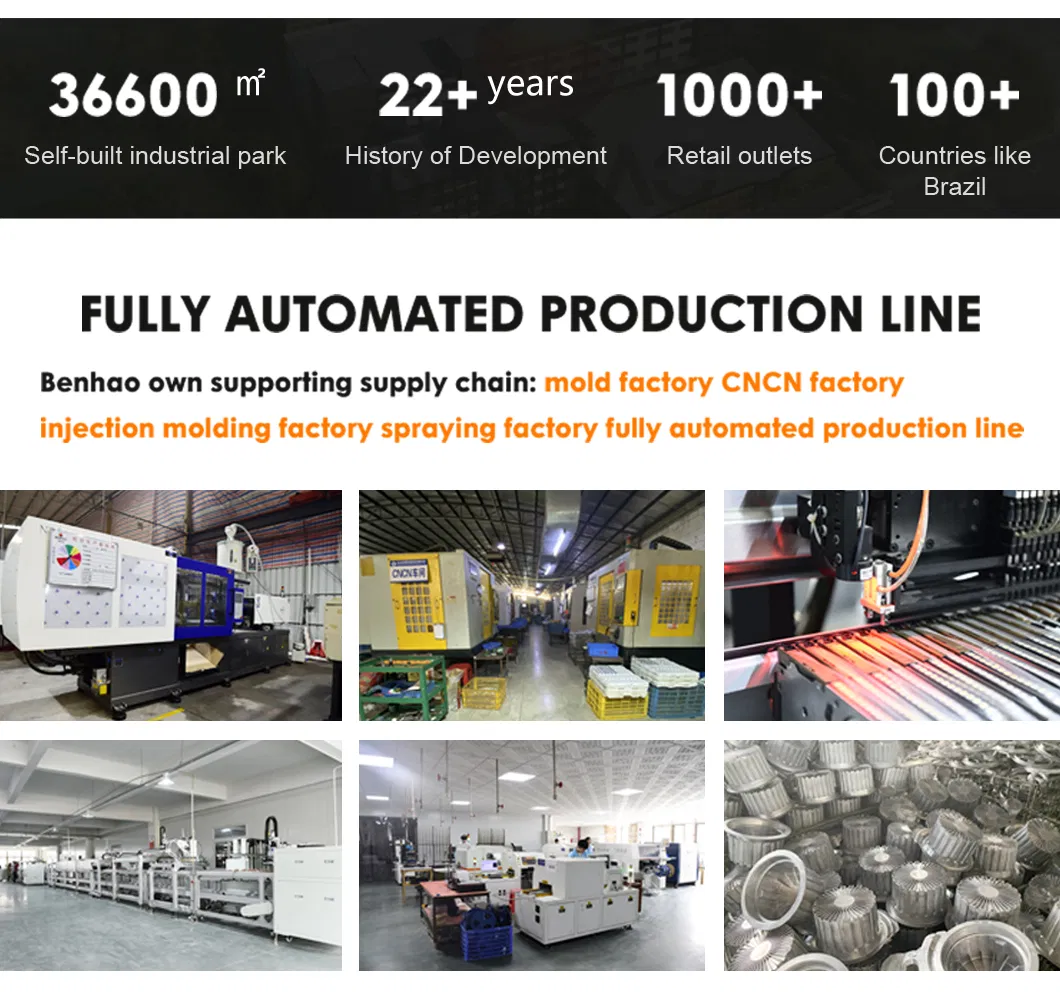

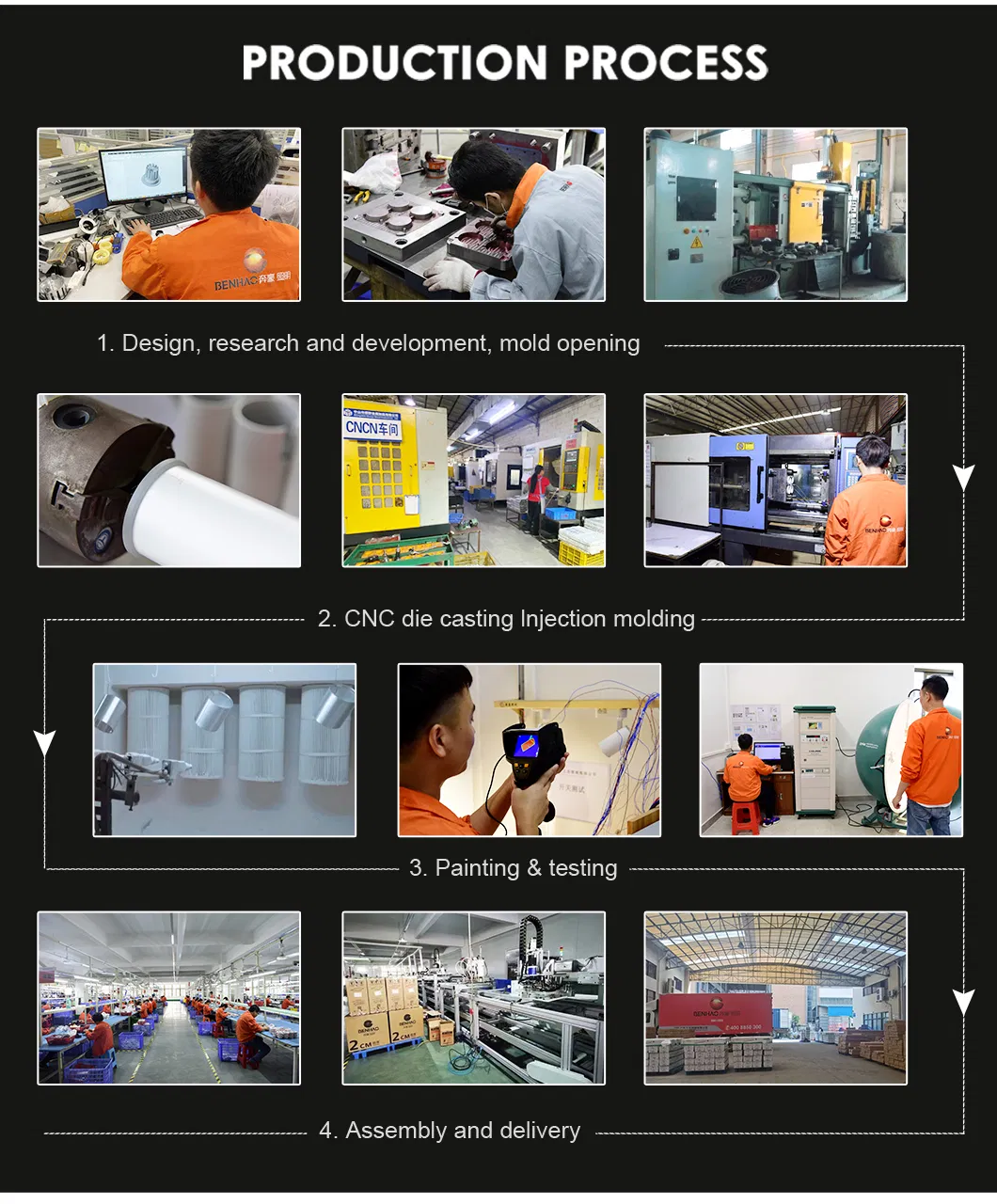

Our Advantages
Established in 2001, we are a comprehensive commercial lighting solutions provider, focusing on research and development, production, sales, and service of LED lighting products. Our products include track lights, magnetic track lights, ceiling lights, downlights, and surface mount downlights.
We have exported to more than 100 countries including Brazil, Canada, Spain, Portugal, Turkey, Korea, Russia, Singapore, Thailand, India, etc.
We provide one-stop commercial & residential lighting solutions, offering high-quality lighting products and solutions for traditional engineering channel providers, high-quality OEM companies, professional lighting design companies, terminal real estate supporting project providers, and hotel engineering providers.
What we offer:
✦
Good quality control
✦
Highly competitive prices
✦
Effective OEM & ODM service
✦
Professional and effective lighting solutions and experience
✦
Product development and customization according to customer needs
Certifications
FAQ
QWhat is the best price for my order?
The price is based on the quantity of your order. Please contact us for the best price.
QWhen can I get a quote?
We will usually quote within 8 hours of receiving your inquiry.
QCan you provide ODM/OEM service?
Yes, we have more than 20 years of experience in the lighting business and we are sure that we can provide ODM/OEM services to our customers.
QProduct warranty time?
Most of our products are guaranteed for 2 years.
QWhat is your delivery date?
Usually different products have different delivery dates. The normal delivery time is about 15-30 days for products and 7-10 days for samples.
