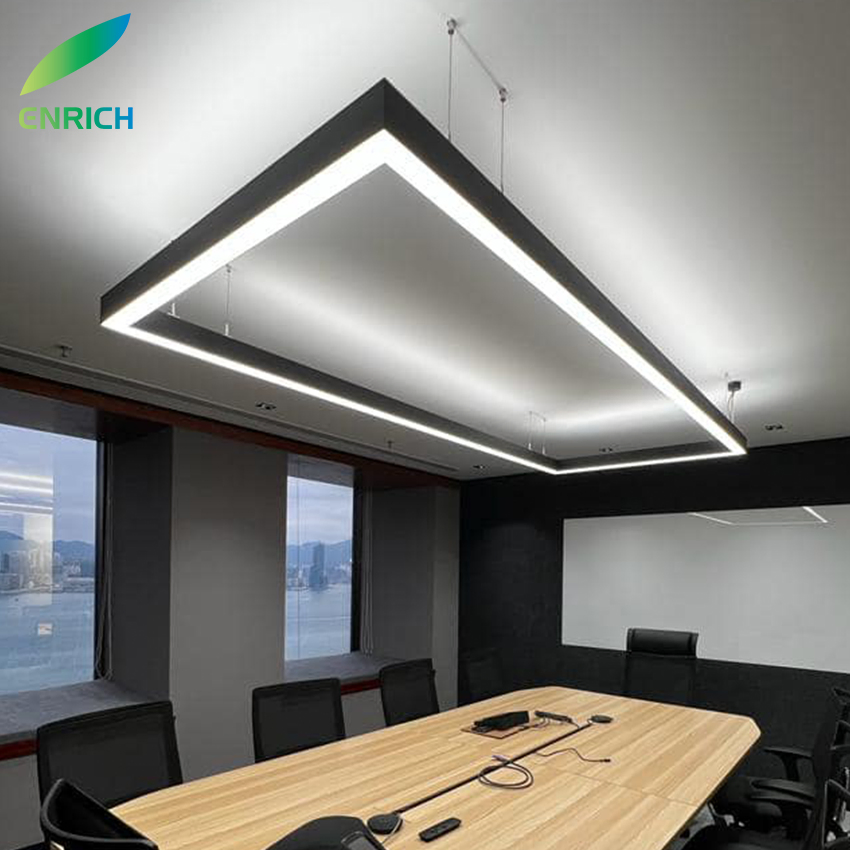

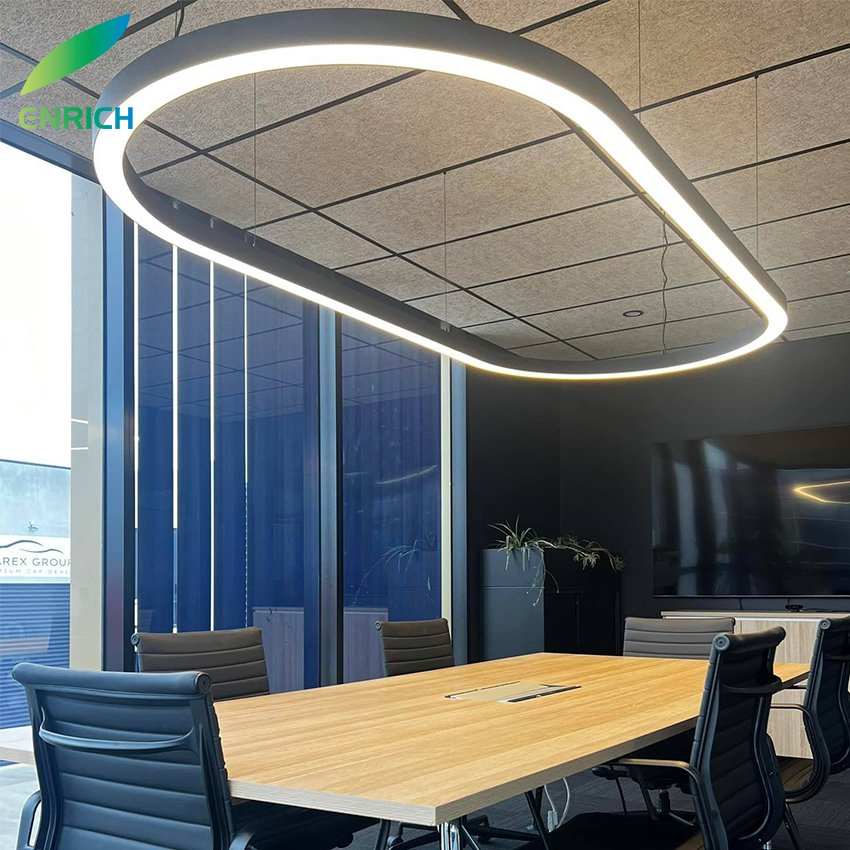

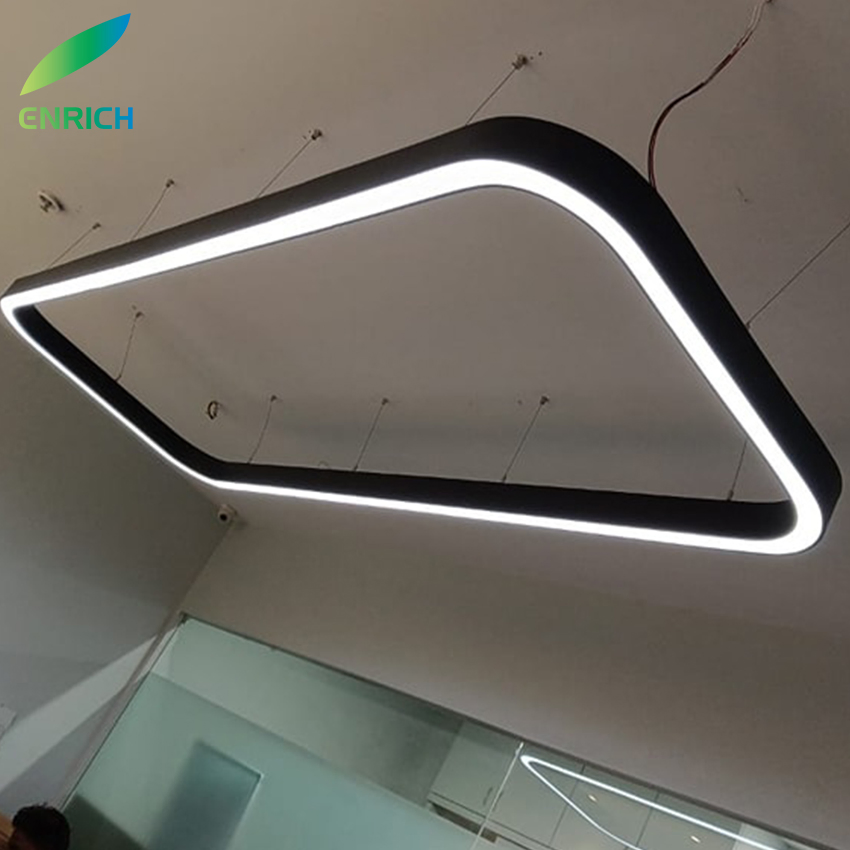

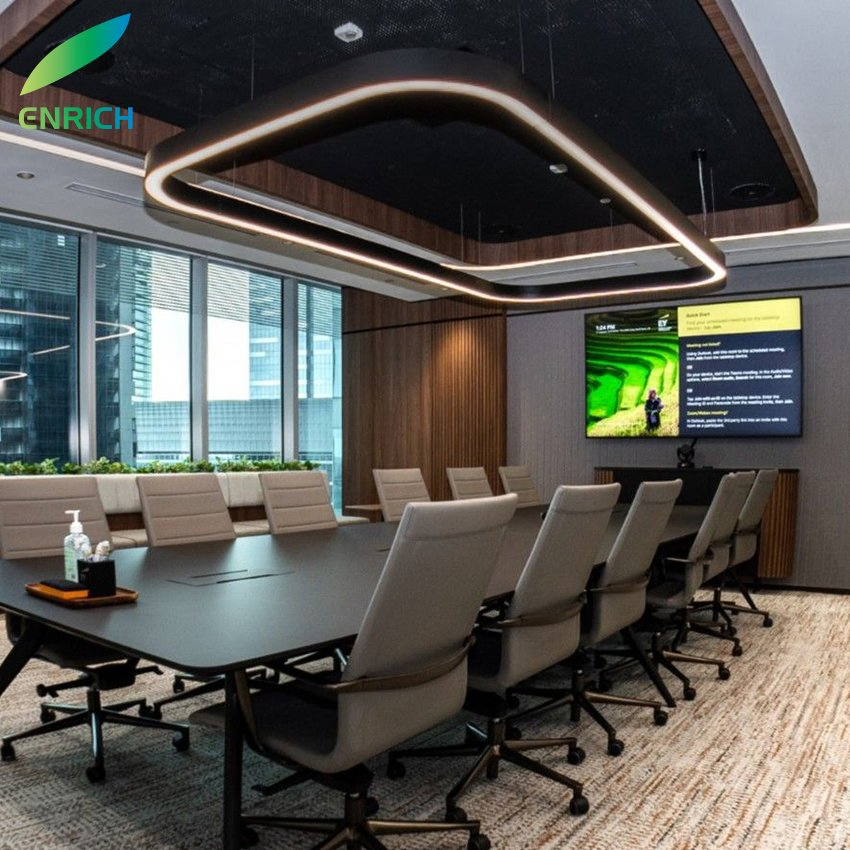

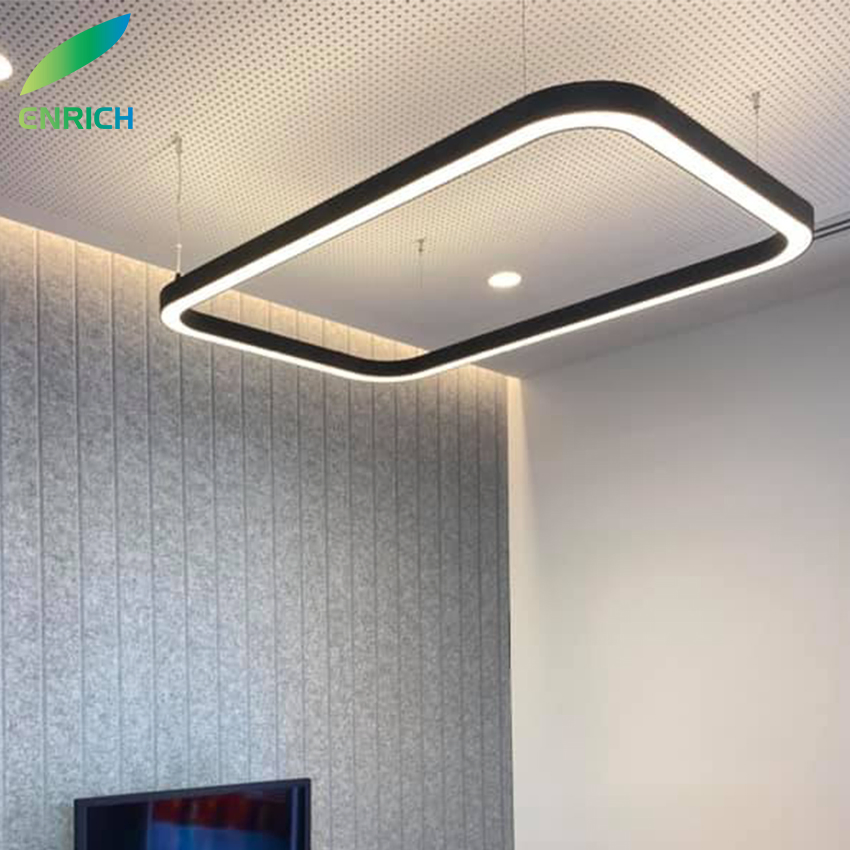

Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall

Product Overview

Basic Info

Model NO.LC6060-F600/1000

StyleEuropean

Irradiated Area≥30m²

IP RatingIP33

CertificationCE, EMC, RoHS, SAA

VoltageAC85-265V

Beaming Angle120°

LED ChipsEpistar SMD 2835 - 504PCS

ModelLC6060-F600/1000

Specifications & Logistics

Wattage20W/M

Luminous Efficiency100lm/W

CRI>80/90

Shell ColorBlack, White, Silver, Customized

Transport PackageCarton Outside

SpecificationL1000*W600*W60*H60mm

OriginChina

HS Code9405110000

Production Capacity50000 Pieces/Year

Packaging & Delivery

Package Size120.00cm * 120.00cm * 25.00cm

Package Gross Weight6.000kg

Product Description

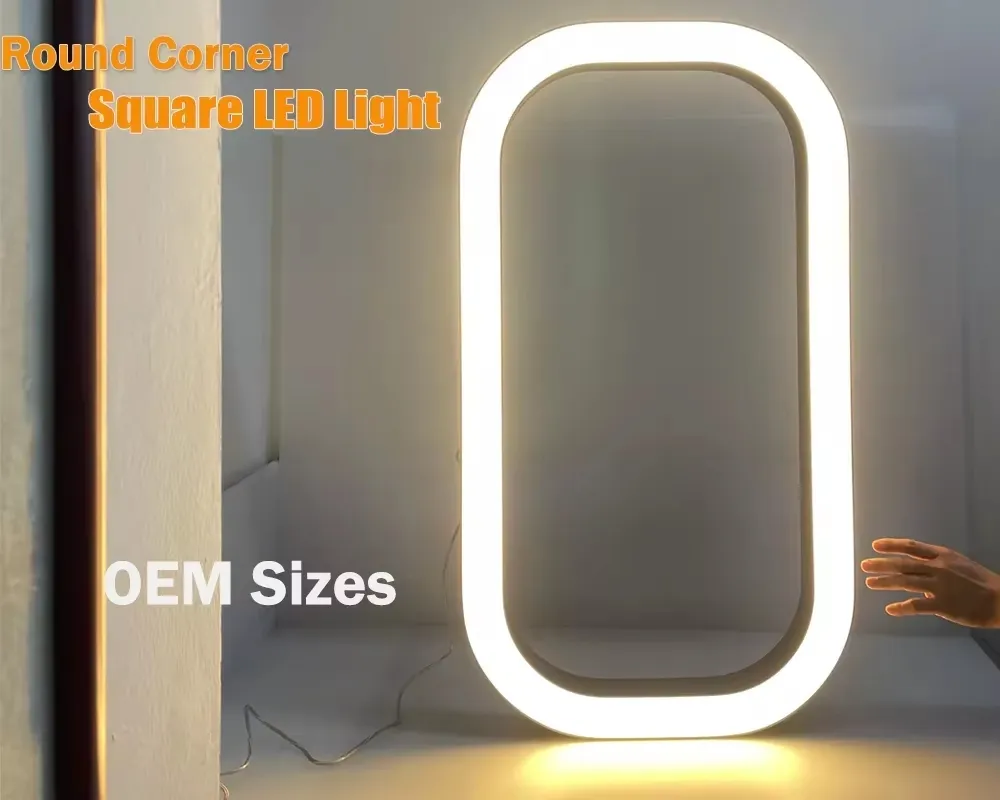

Rectangular LED Linear Light Round Corner LED Square Pendant Light

Product Features

✔ No dark area, lighting uniformly, excellent heat dissipation performance.

✔ High Efficacy: 100lm/w ±5%.

✔ Material: 1.5mm thick extrusion aluminum profile housing, frosted PC cover.

✔ High CRI: Ra>80 (standard), Ra>90 (upgrade available).

✔ Certified driver, flicker-free, built-in, power factor>0.9.

✔ Input Voltage: AC220-240V (EU version), AC100-240V (US version).

✔ LED PCB board, SMD2835, L80B10(Ta=25ºC)>50000hrs, long lifespan.

✔ Diameter available in L900*W900mm, L1032*W1032, L1200*W1200, L3000*W600, L3000*W1200, and customized sizes.

✔ Color temp: 3000K, 4000K, 5000K, 6000K.

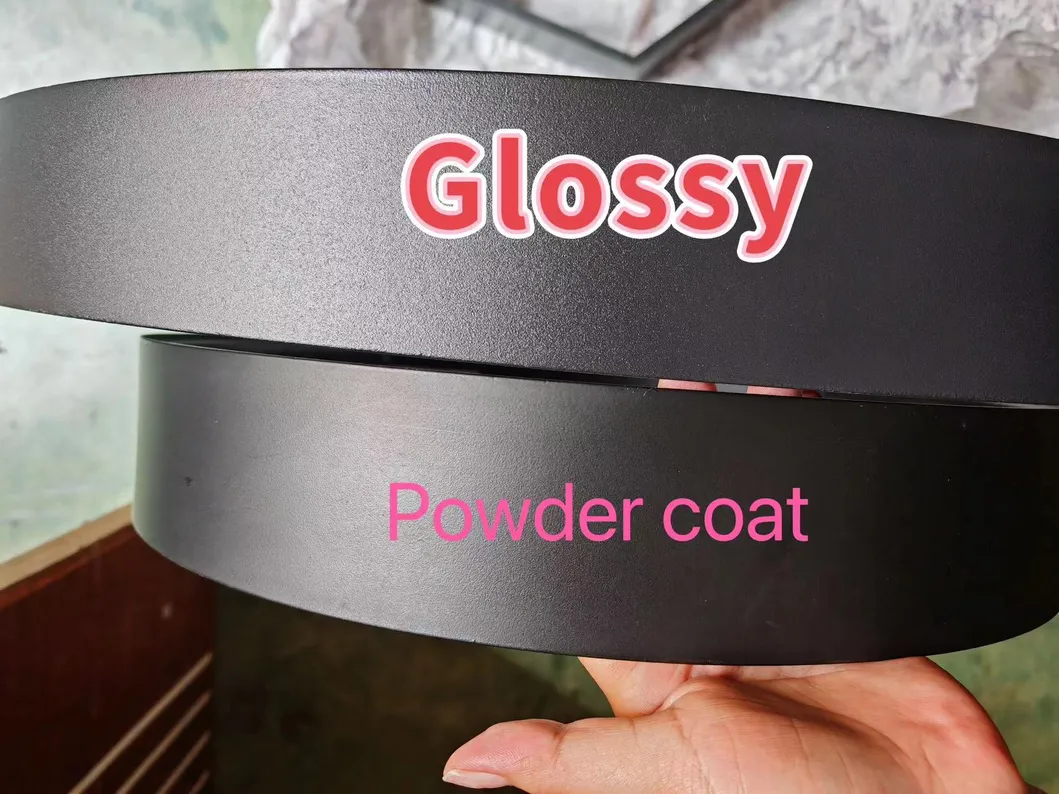

✔ Shell Color: White, Black (standard), Silver, Golden (optional upgrade).

✔ Suspended, Ceiling surface, Rimless recessed mounting.

✔ Warranty: 5 years.

Specifications

Model	LC6060-B-900	LC6060-B-1032	LC6060-B-1200	LC6060-B-3000/600	LC6060-B-3000/1200
Voltage	AC220-240V	AC220-240V	AC220-240V	AC220-240V	AC220-240V
Size	L900W900(W60*H60)mm	L1032W1032(W60*H60)mm	L1200W1200(W60*H60)mm	L3000W600(W60*H60)mm	L3000W1200(W60*H60)mm
Power	50W	60W	70W	136W	160W
Luminous	100lm/w	100lm/w	100lm/w	100lm/w	100lm/w
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
CRI	>80	>80	>80	>80	>80
Shell Color	Silver/White/Black/Golden
LED Chip	SMD2835
Efficacy	>90lm/w
Material	6063-T5 aluminum+PC
CCT	3000K/4000K/6000K/RGB/RGBW/RGB+CCT
Driver	Internal
Warranty	5 years

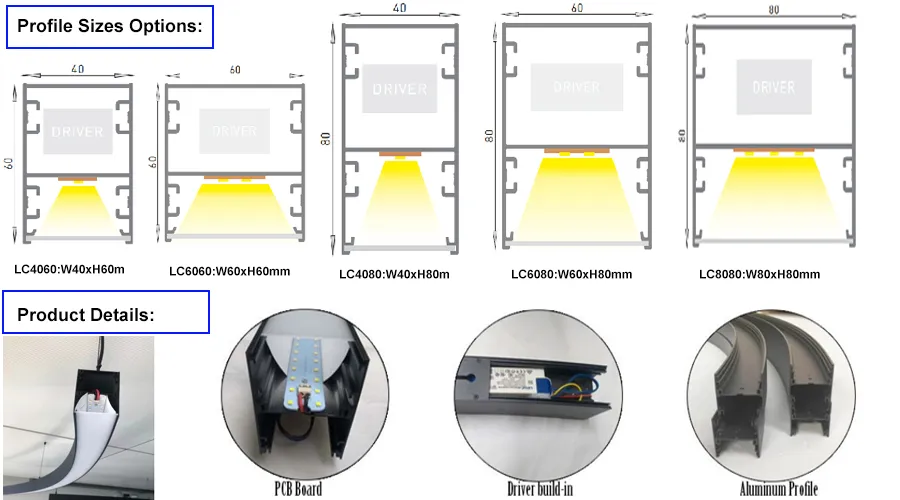

It is using extrusion aluminum profile as body, high quality PCB board as light source and famous brand LED Driver. The best choice for modern office lighting.

Product Configuration

Parameter	Details
Type	Light Source
Switch Type	Button
Adjustable height	2(m)
Sun visor material	Acrylic resin
Size	600-5000(mm)
Main scope of application	office, office building, family bedroom
Style	Modern
Average service life	50000 (h)
Voltage	AC220V/110V
Suitable location	office, office building
Light body material	Aluminum
Model	Office lighting
Color	Light body black/hanging line, light body black/ceiling

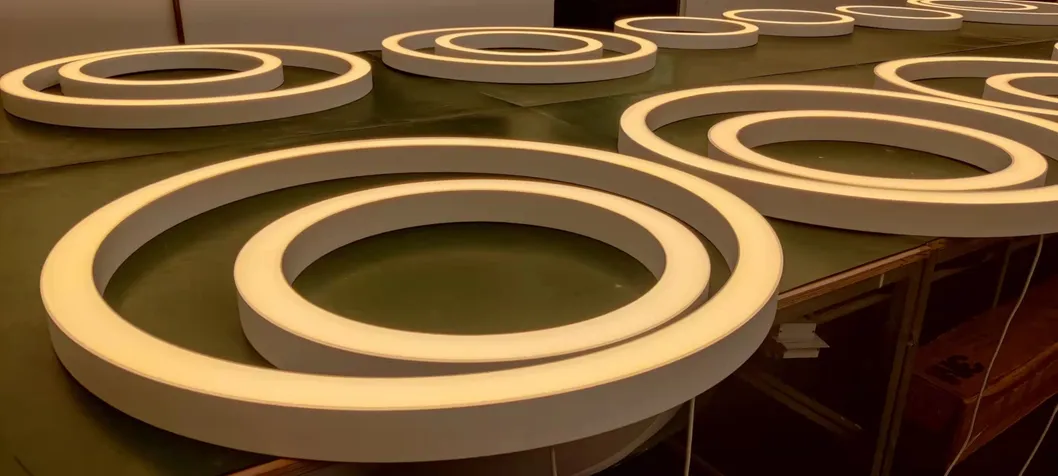

Secure Packaging

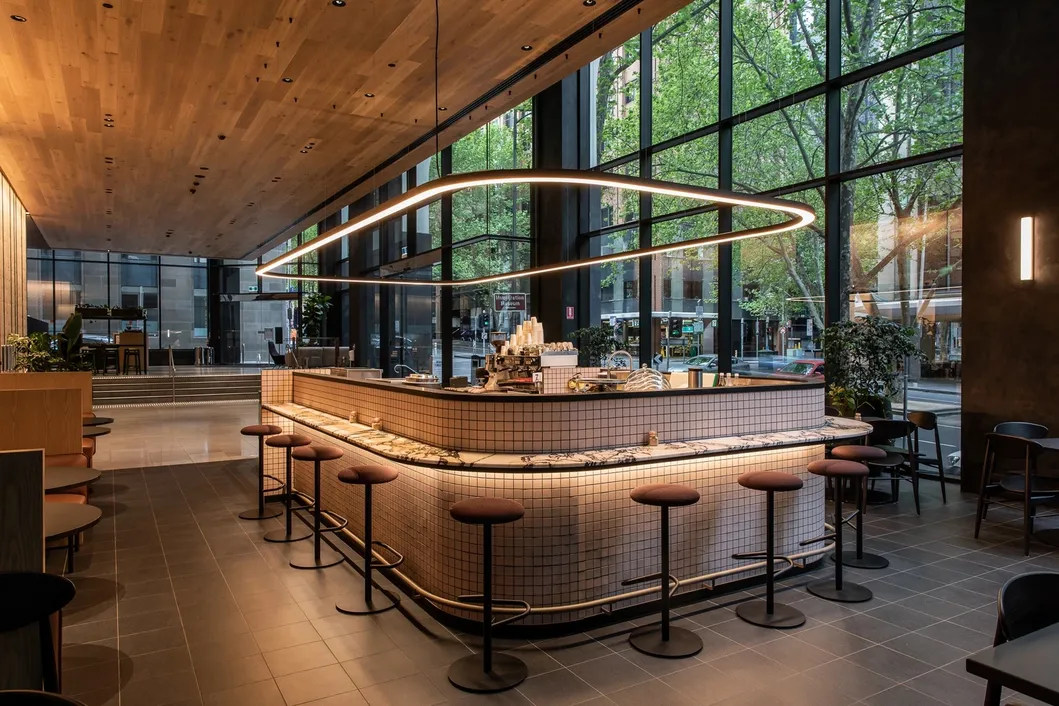

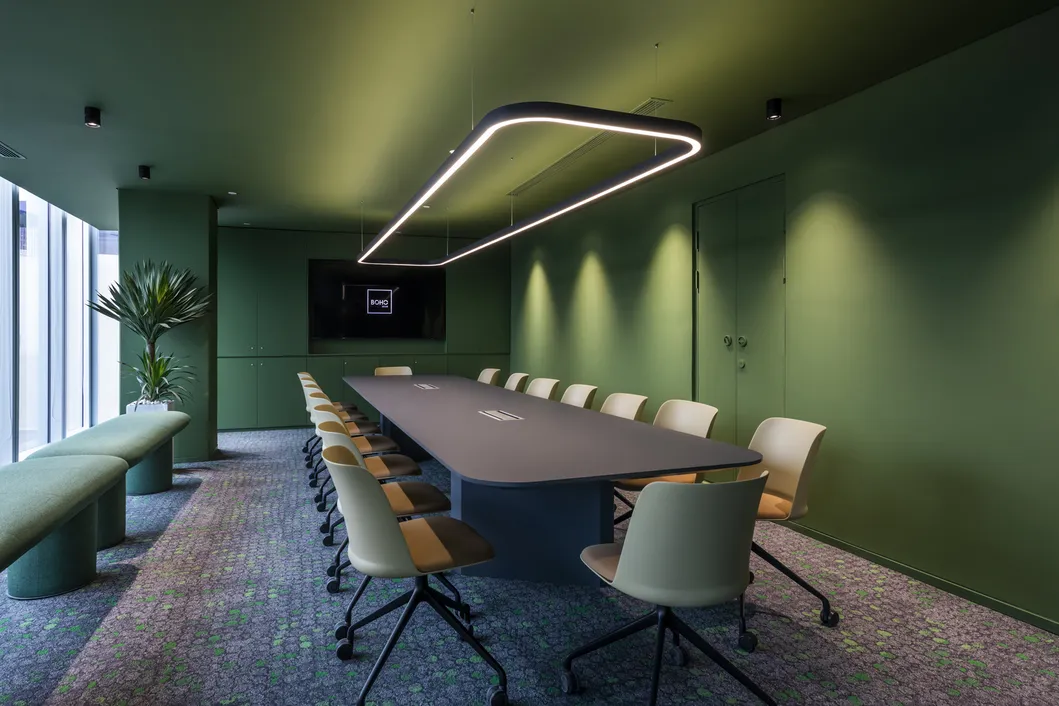

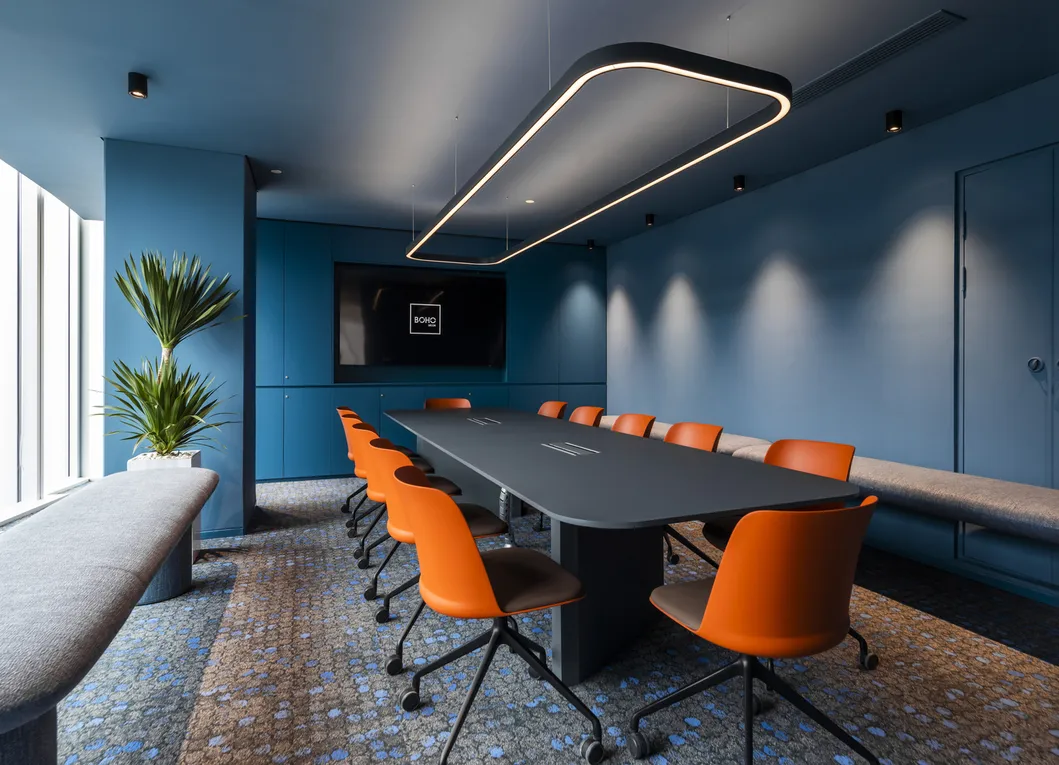

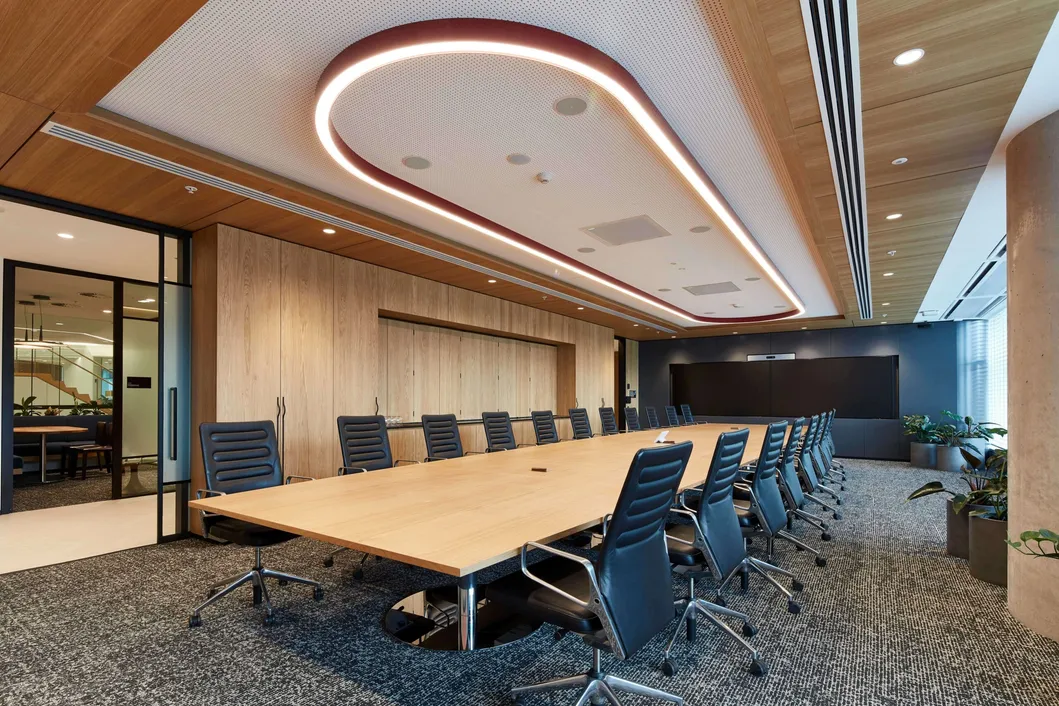

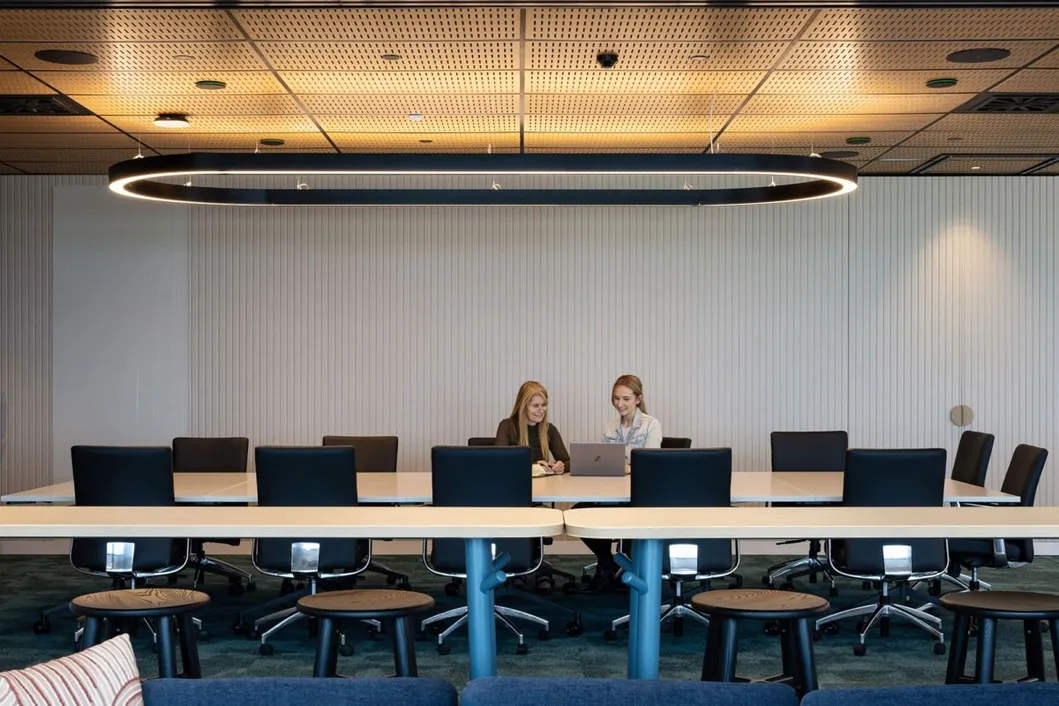

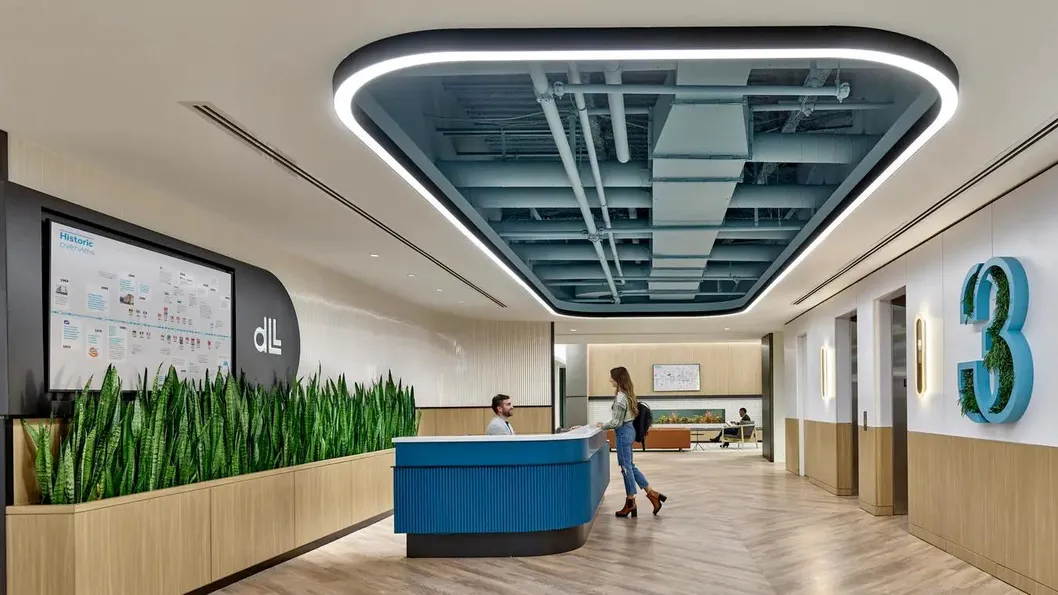

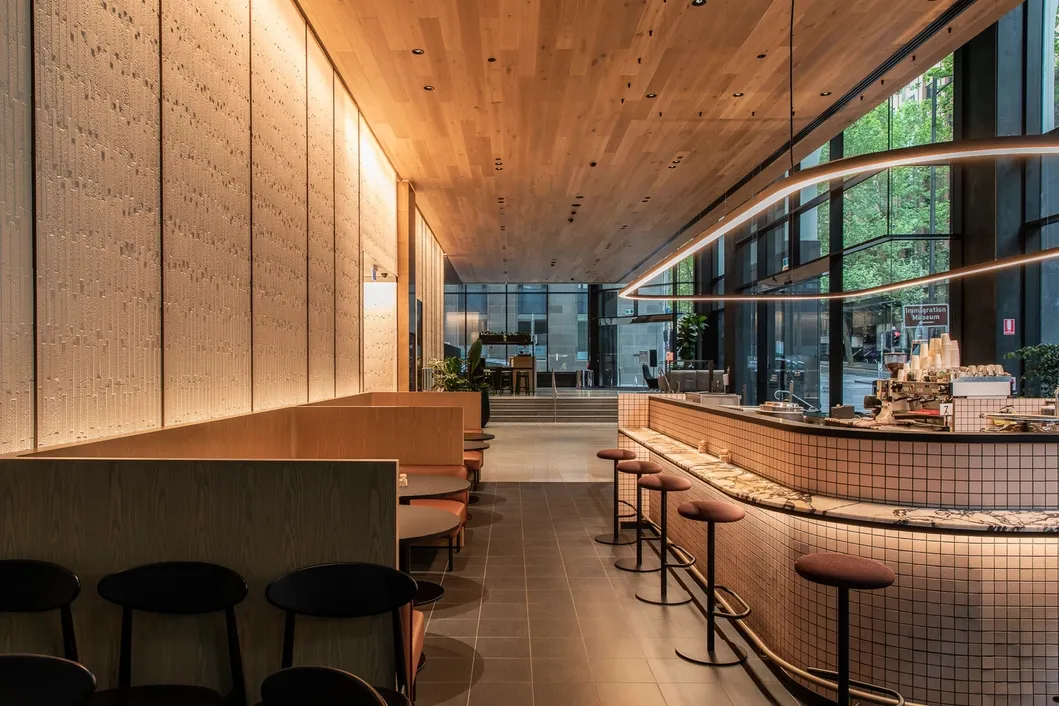

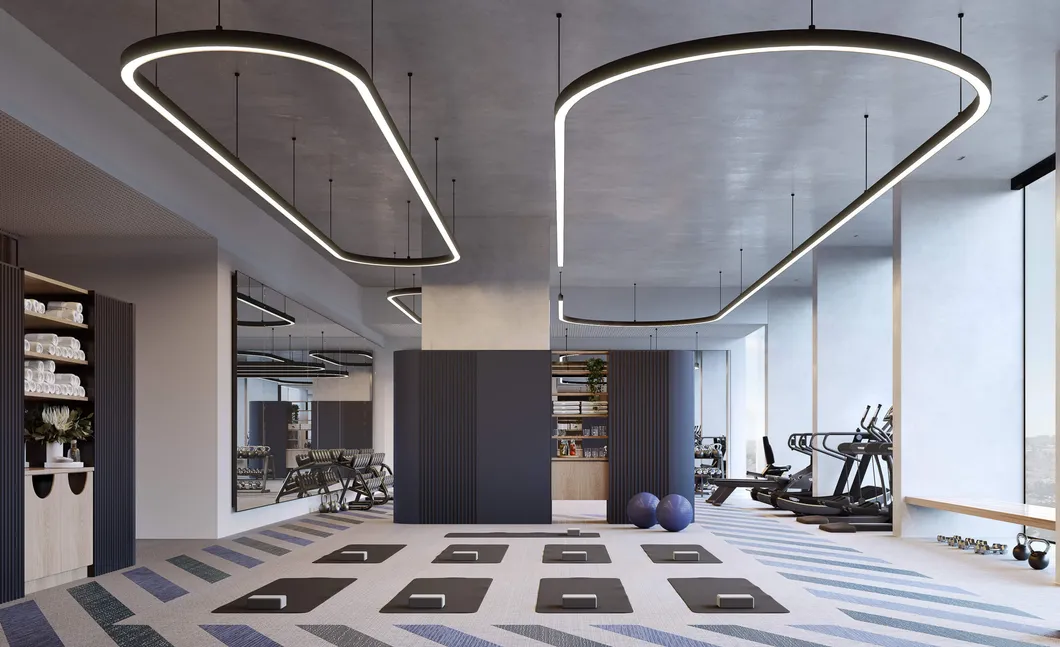

Widely Application

Ideal for use in shopping malls, stores, offices, gyms, schools, hotels, homes, reception desks, bedrooms, and more.

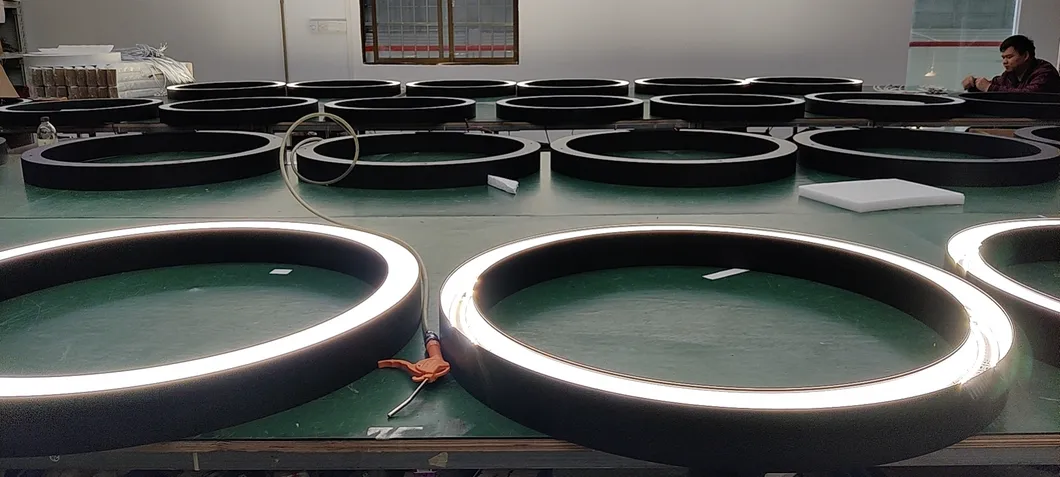

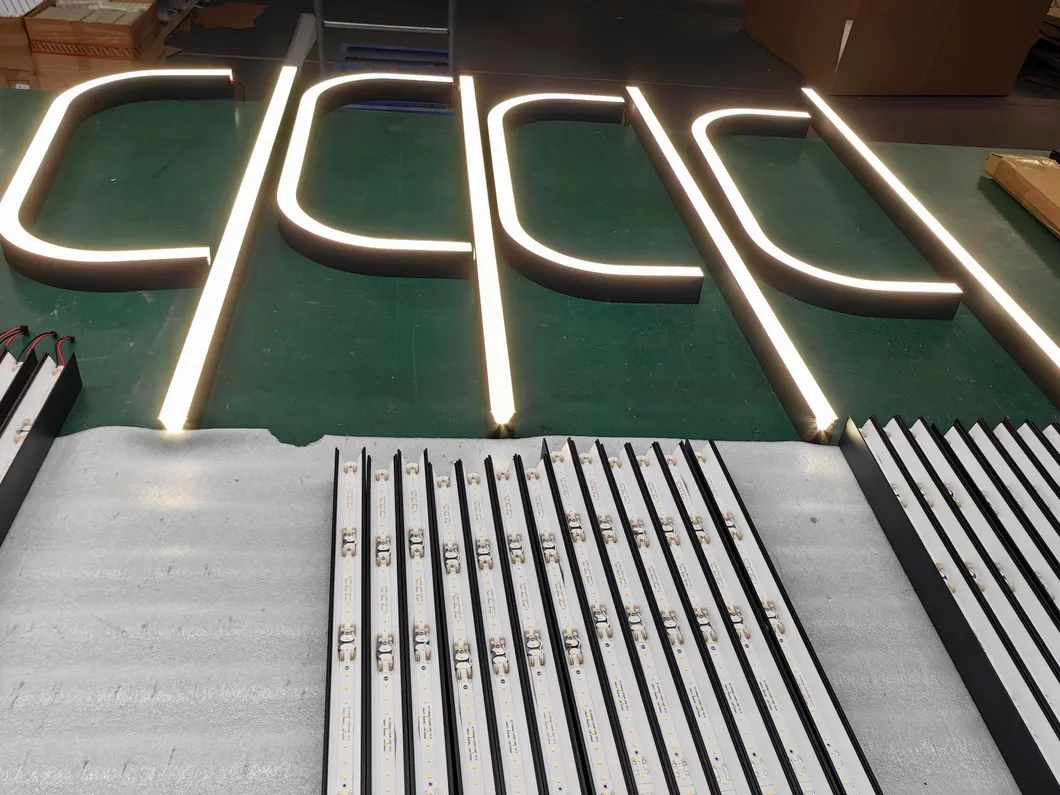

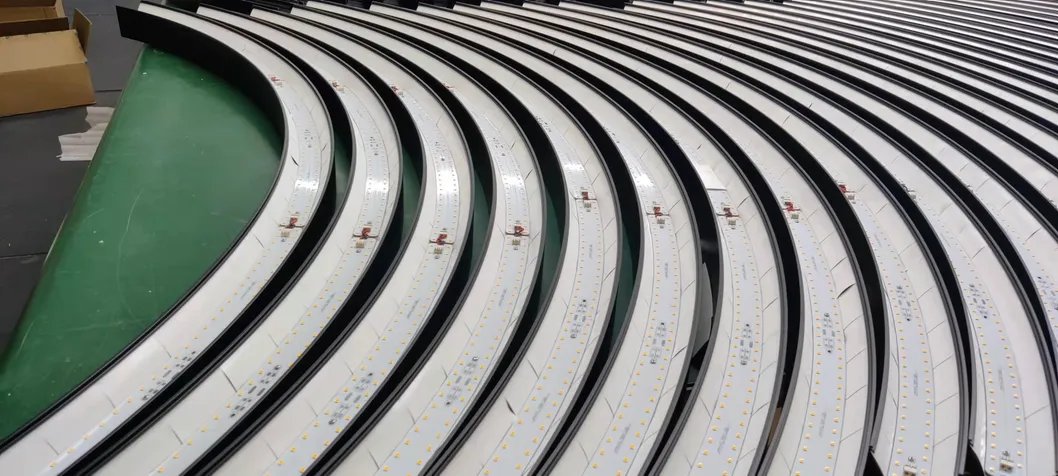

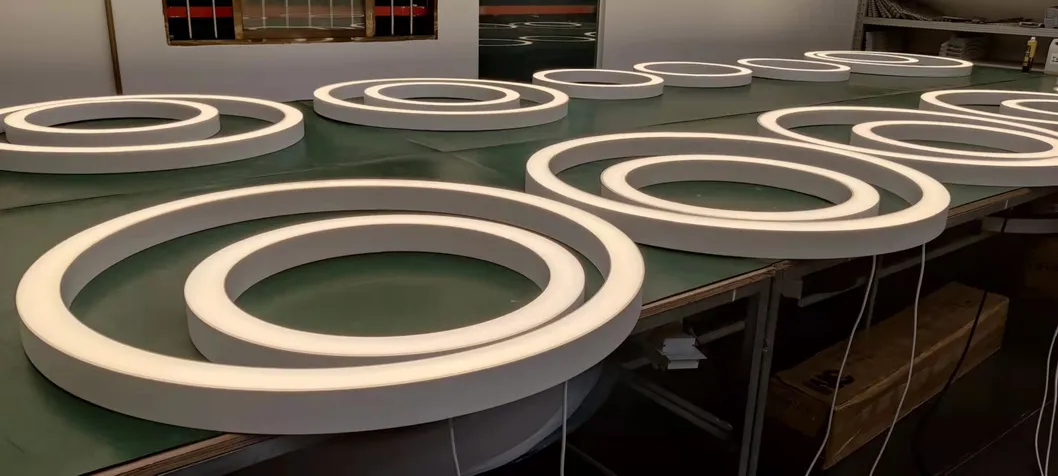

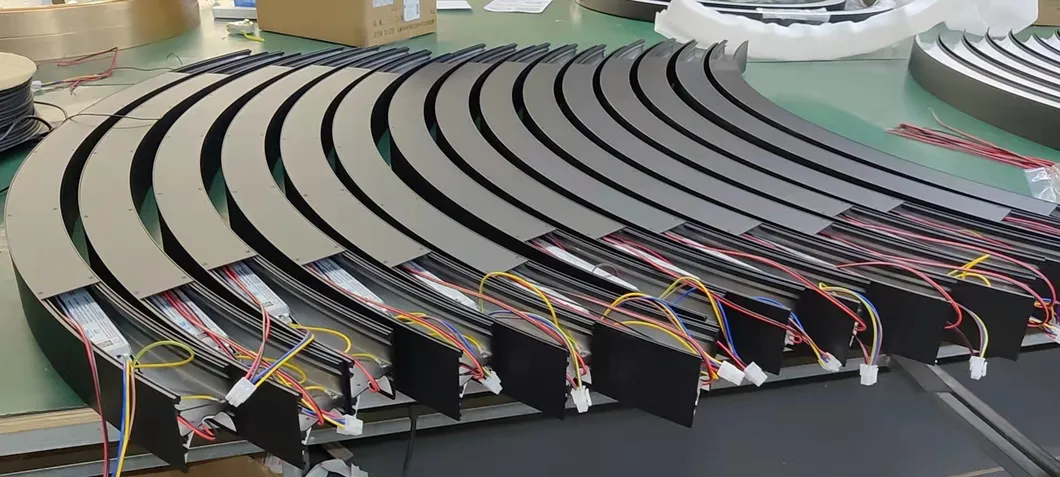

Production & Customization

We support tailored designs and shapes according to custom requirements and project details.

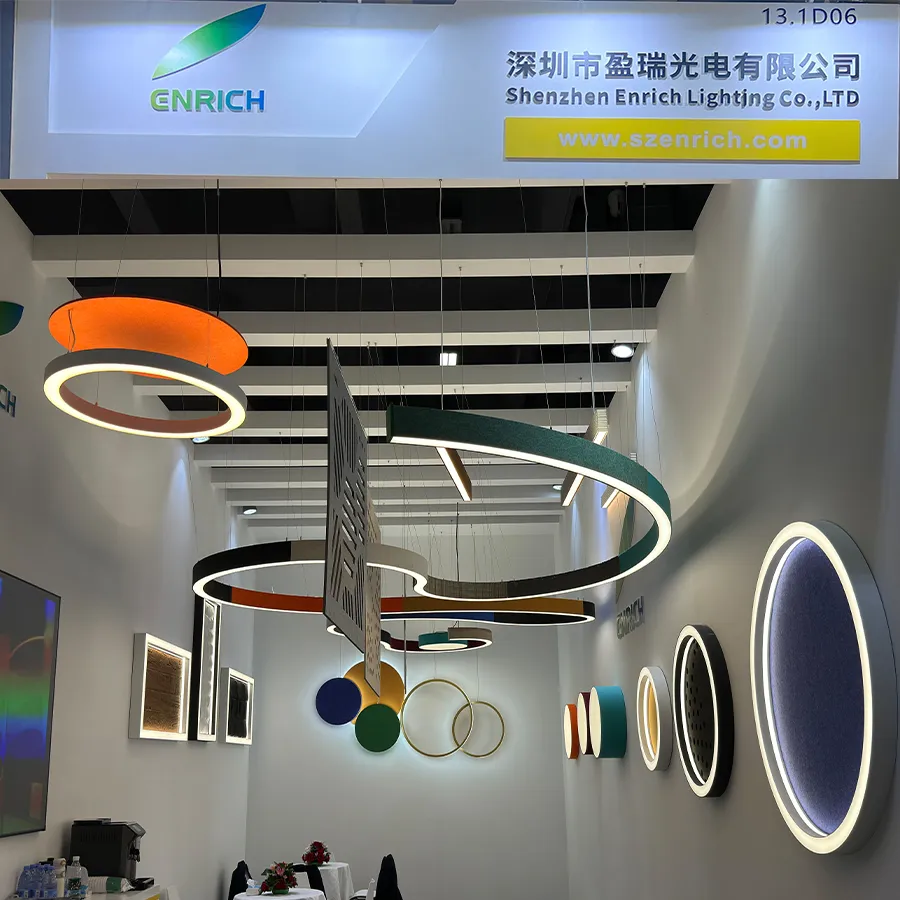

Global Presence & Quality Display

Frequently Asked Questions (FAQ)

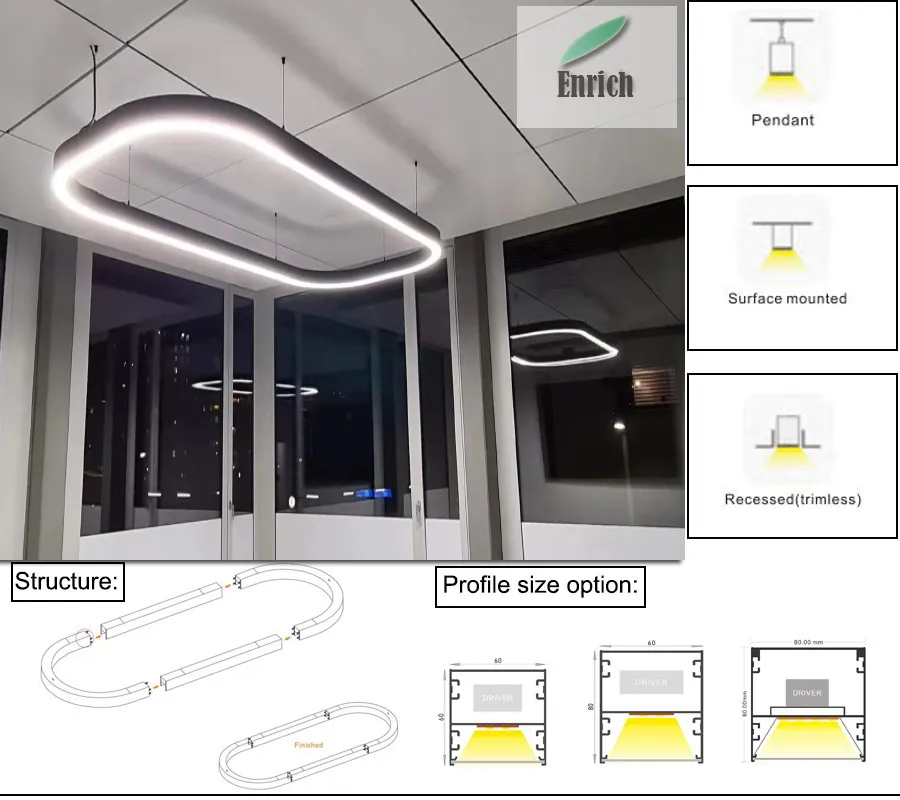

What are the primary mounting options for the LED Linear Light?

This light offers high versatility and supports suspended, ceiling surface, and rimless recessed mounting depending on your architectural and spatial designs.

What finishes and colors are available?

The standard shell colors are Black, White, and Silver. A premium Golden color is also available as an upgrade to match specific design requirements.

Can we request custom sizes or bespoke layouts?

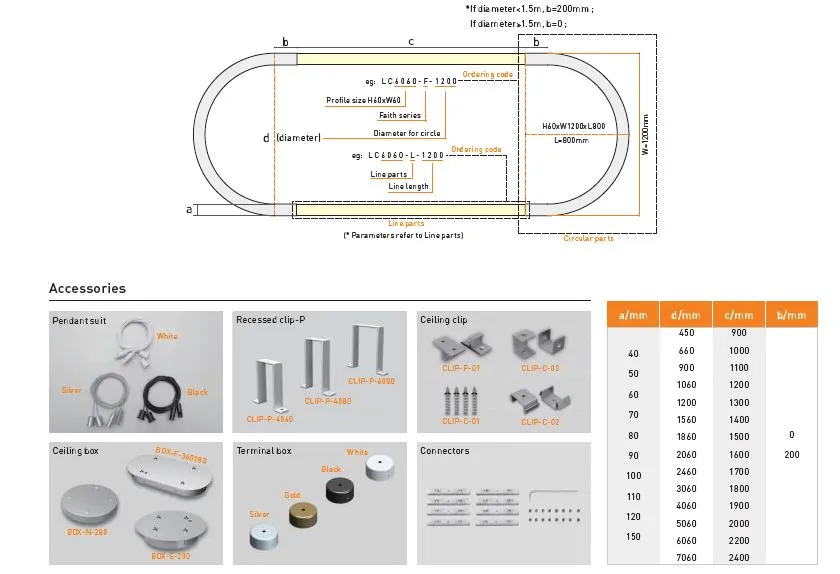

Yes. Standard sizes range from 900mm up to 3000mm, but custom dimensions, configurations, and bespoke design drawings can be developed based on project inquiries.

What are the core technical specifications and lifespans?

The linear lights feature high luminous efficiency (100lm/W ±5%), a long lifespan of over 50,000 hours (SMD2835 LEDs, L80B10 at Ta=25ºC), high color rendering index (CRI >80/90), and flicker-free integrated drivers with a power factor greater than 0.9.

Does this fixture run under multi-voltages?

Yes, it operates under a wide voltage ranges. Depending on regional standards, EU versions run on AC220-240V, while US versions support AC100-240V (overall compatibility range AC85-265V).

What is the warranty coverage?

The product is designed for high reliability and comes with a 5-year warranty, which covers the driver and LED PCB component performances.
