Product Description

Product Overview

Square RGBW RGB+W RGB+CCT Color Changing LED Panel Light (2X2 & 2x4 Surface Wall Mounted)

RGBW LED Panel Light

Product Features

  • RGBW RGB+CCT full dream color spectrum.
  • Anodic Oxidation Silver Frame or Spray White Frame optional.
  • Supports 30+ colors with wireless remote control capability.
  • Excellent light-emitting uniformity backed by extensive design experience.
  • Custom barcode solutions available for retail and wholesale requirements.
  • Includes RGB, warm white, and cold white chips for full color versatility.
  • Wavelength/CCT: R 620-630, G 515-525, B 465-470, plus adjustable white temperatures.
  • Certified: CE/RoHS/ETL/ERP/TUV-listed isolated driver.
  • Extra bright SMD4014 LEDs with long lifespan and low light decay.
RGBW Panel Features

General Advantages

  • Wide voltage and frequency compatibility, suitable for most global power grids.
  • High reliability: external isolated power supply with protection against overcurrent, overload, and short circuit.
  • Sturdy construction: Aluminum 6063 housing for durability and heat dissipation.
  • High illuminance: Famous brand chips ensure high light efficiency and color consistency.
  • Lightweight design: Environmentally friendly, easy to install, and safety compliant.

Technical Parameters

Model Dimension LED Qty Wattage Luminous Flux
YLL-PF02295*295*10mm56LEDs15W1000LM
YLL-PF03295*595*10mm98LEDs25W1700LM
YLL-PF05595*595*10mm196LEDs48W3520LM
YLL-PF04295*1195*10mm196LEDs48W3520LM
YLL-PF06595*1195*10mm252LEDs65W4530LM

Installation and Controllers

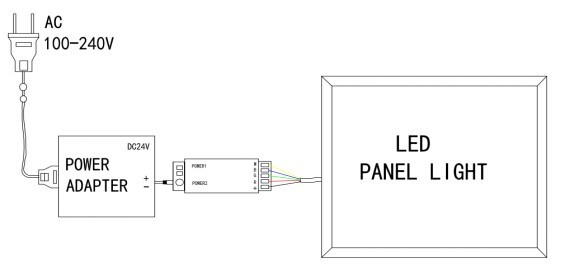

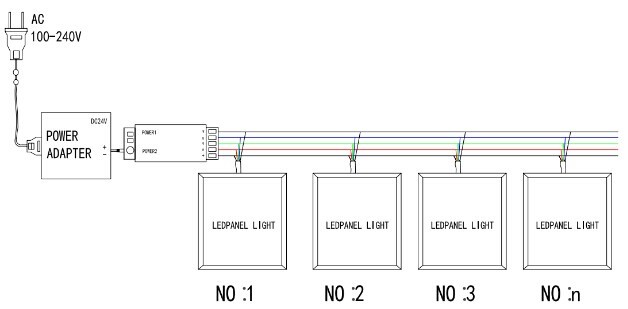

Single Connection Multi Connection

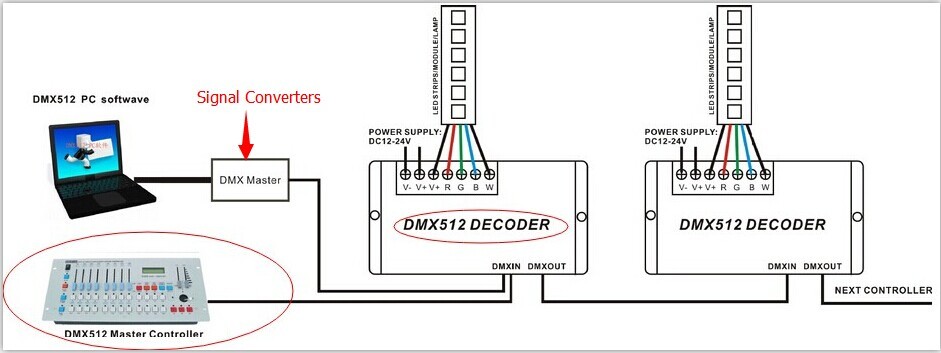

Compatible with DMX512 and 2.4G Hz Controllers:

  • User-friendly control system with anti-interference 2.4G Hz technology.
  • Simultaneous adjustment of brightness and colors.
  • 20 Multiple flashing modes available.
  • Wireless remote control range: 25-30 meters.
Controller

Maximum Connection Capacity

ModelDimensionMax Qty/Controller
YLL-PF02295*295*10mm24pcs
YLL-PF03295*595*10mm14pcs
YLL-PF05595*595*10mm7pcs
YLL-PF04295*1195*10mm7pcs
YLL-PF06595*1195*10mm5pcs

Certificates & Testing

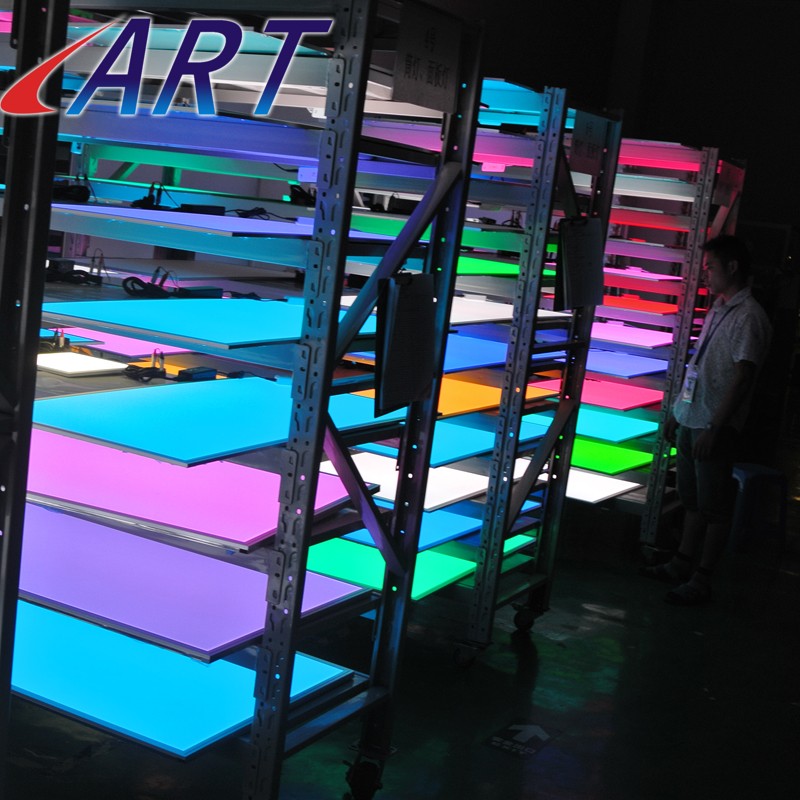

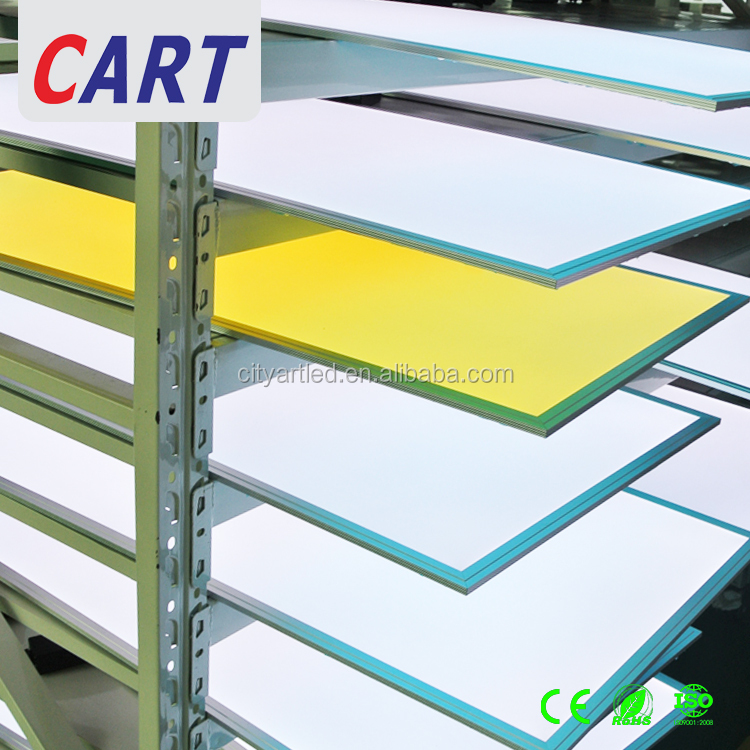

Certificates Aging Test

Applications

  • Dancing pubs
  • Hotels and Bedrooms
  • Furniture lighting
  • Window gallery lighting
  • Holiday lighting
  • Sauna and banquet decoration

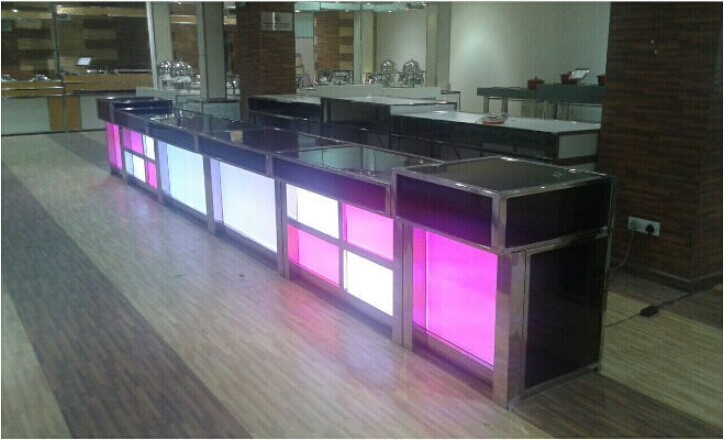

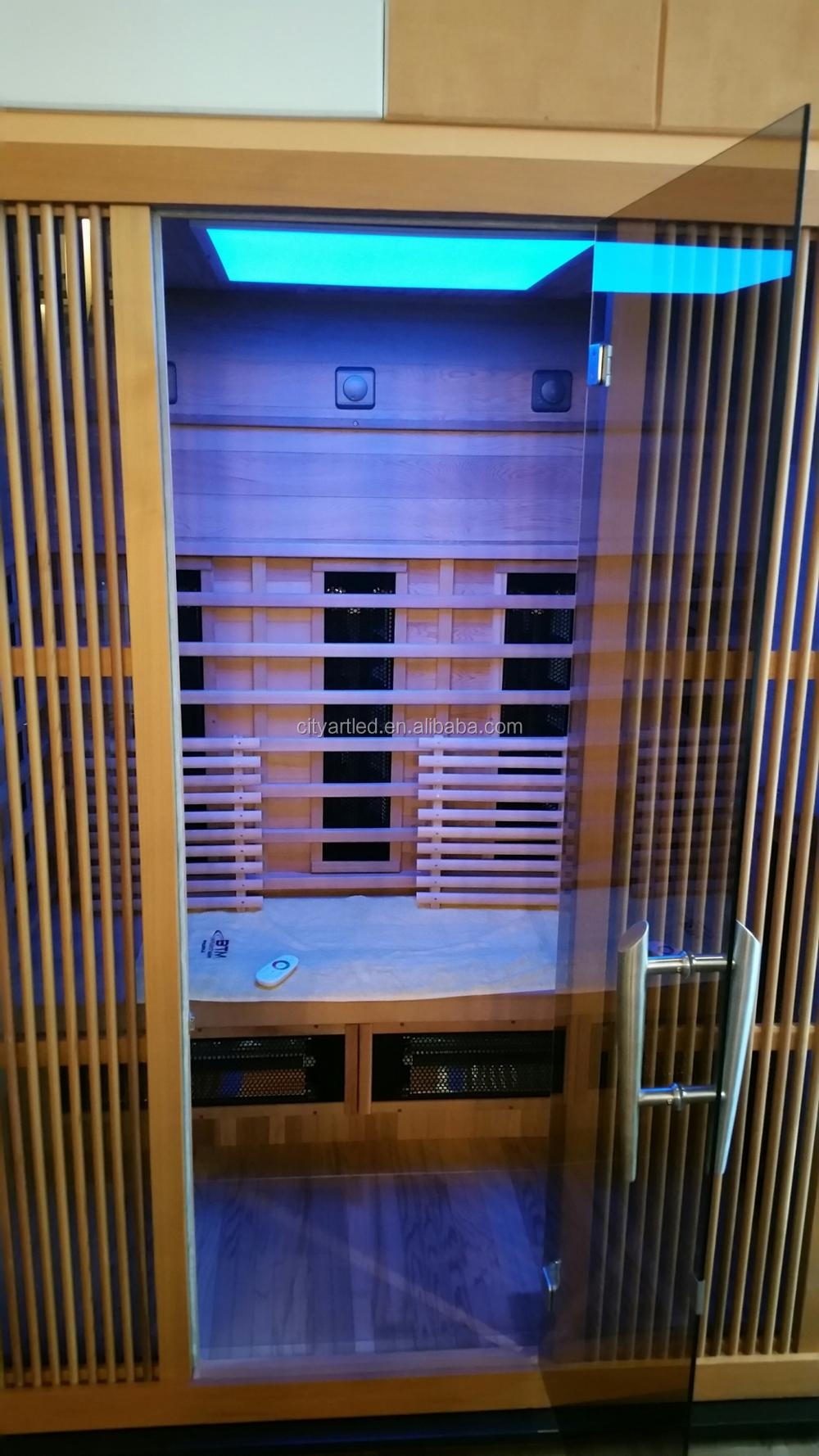

Application 1 Application 2

Notice for Use

  1. Working voltage: DC 12V/24V or AC 100V-240V. Installation must be handled by a professional electrician.
  2. Please read instructions carefully and maintain the manual.
  3. Power off before cleaning. Do not use liquid or corrosive detergents.
  4. Do not cover with fabrics or materials during use.
  5. Do not attempt to repair the unit yourself.
  6. Avoid rain and strong mechanical vibration during transportation.
  7. If the power supply or housing is damaged, disconnect power immediately and contact a qualified technician.

Frequently Asked Questions

1. What is the difference between RGBW and RGB+CCT?
RGBW provides color changing with a dedicated white channel, while RGB+CCT allows for full color changing plus tunable white color temperatures (warm to cool white).
2. Is the LED panel difficult to install?
The panels are designed for surface wall mounting and are lightweight, making them relatively easy to install. However, they must be installed by a professional electrician.
3. Can I control multiple panels with one remote?
Yes, our 2.4G Hz control system supports multiple panels. Please refer to the connection chart for the maximum number of panels supported per controller.
4. What is the warranty period?
We offer a 3-year warranty on our LED panel lights. During this period, any quality issues can be returned for exchange or refund.
5. Are these panels safe for use in damp environments?
While suitable for many decorative applications, please avoid using them in areas with direct moisture penetration unless specified otherwise. Always handle cleaning with the power off.
6. Does the package include the driver?
Yes, our panels come with high-reliability, external isolated drivers that protect against overcurrent, overload, and short circuits.
