XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light
XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light
XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light
XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light
XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light
1 / 5
XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light
XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light
XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light
XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light
XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light

XRZLux Modern Magnetic Track Light Indoor LED Spotlight Grille Flood Lamp COB DC48V Ceiling Lighting Magnet Track Spot Light

Send Inquiry

Product Description

Product Parameters
Product Parameters Overview
Basic Information
Model M19 Magnetic Track System
Mounting Recessed/Surface
Color Black/White
Material Aluminum
Input Voltage DC48V
Track Length 1.5m/2m
LED Strip Parameters
Lamp Power 4W/6W/8W/10W/15W/30W
CRI 95Ra / 97Ra
CCT 3000K/3500K/4000K
IP Rating IP20
Driver Options (need to be purchased separately)
Driver Voltage AC100-120V/AC220-240V
Driver Options ON/OFF DIM TRIAC/PHASE-CUT DIM 0-10V
Product Description
Product Details Image

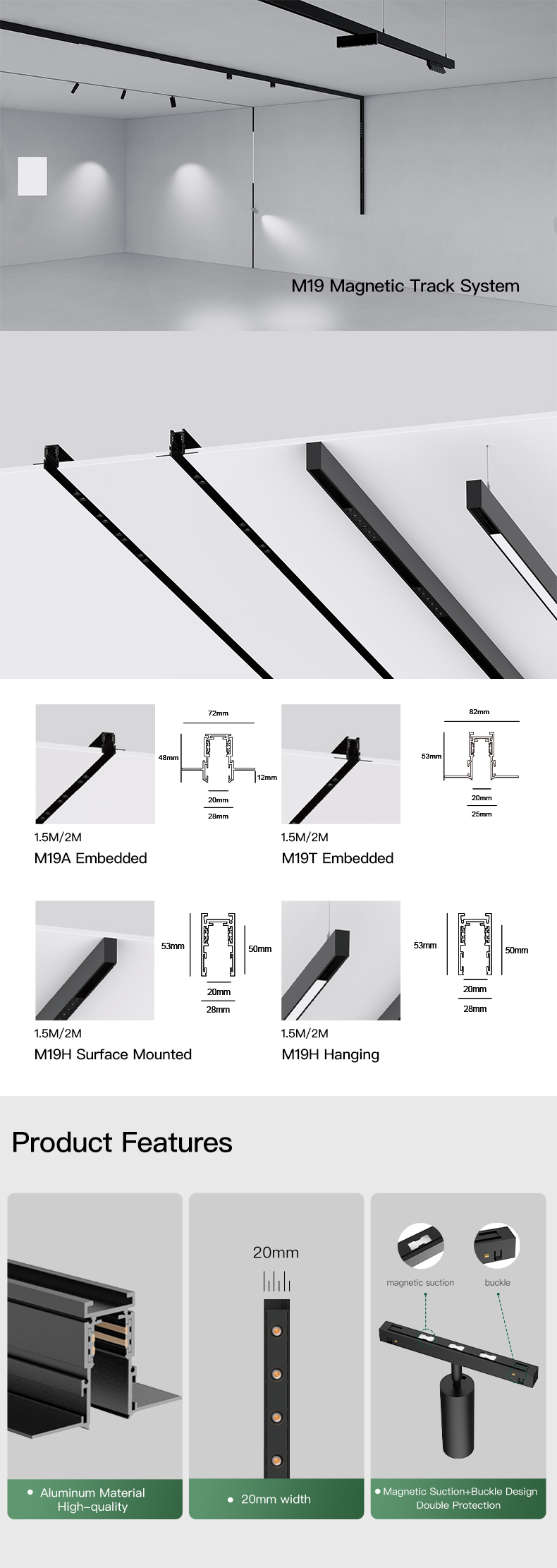

Product Application Image 1

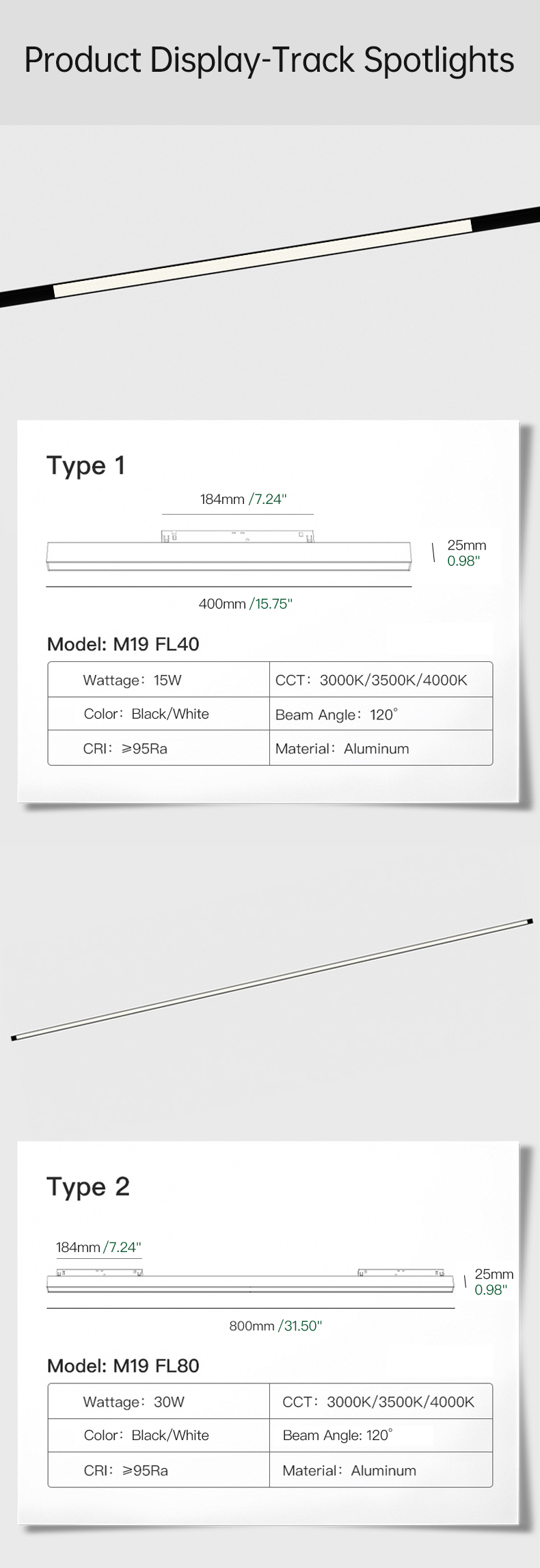

Product Application Image 2

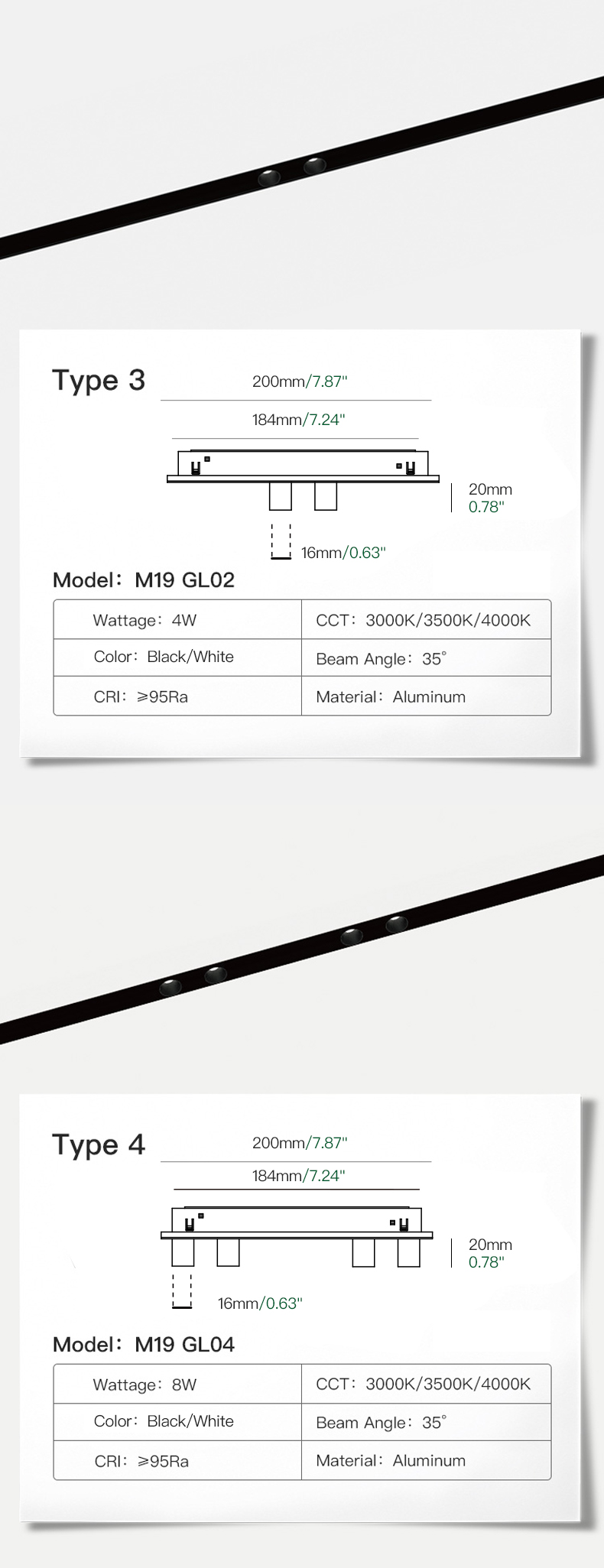

Product Application Image 3

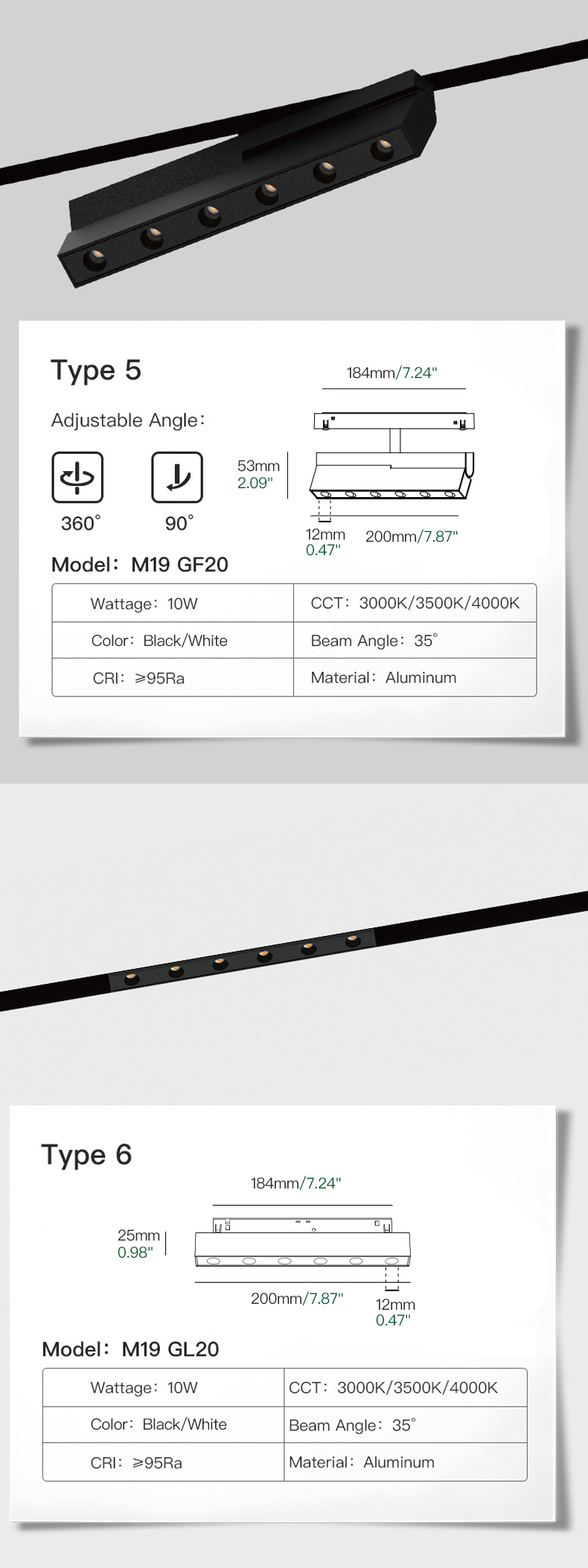

Product Application Image 4

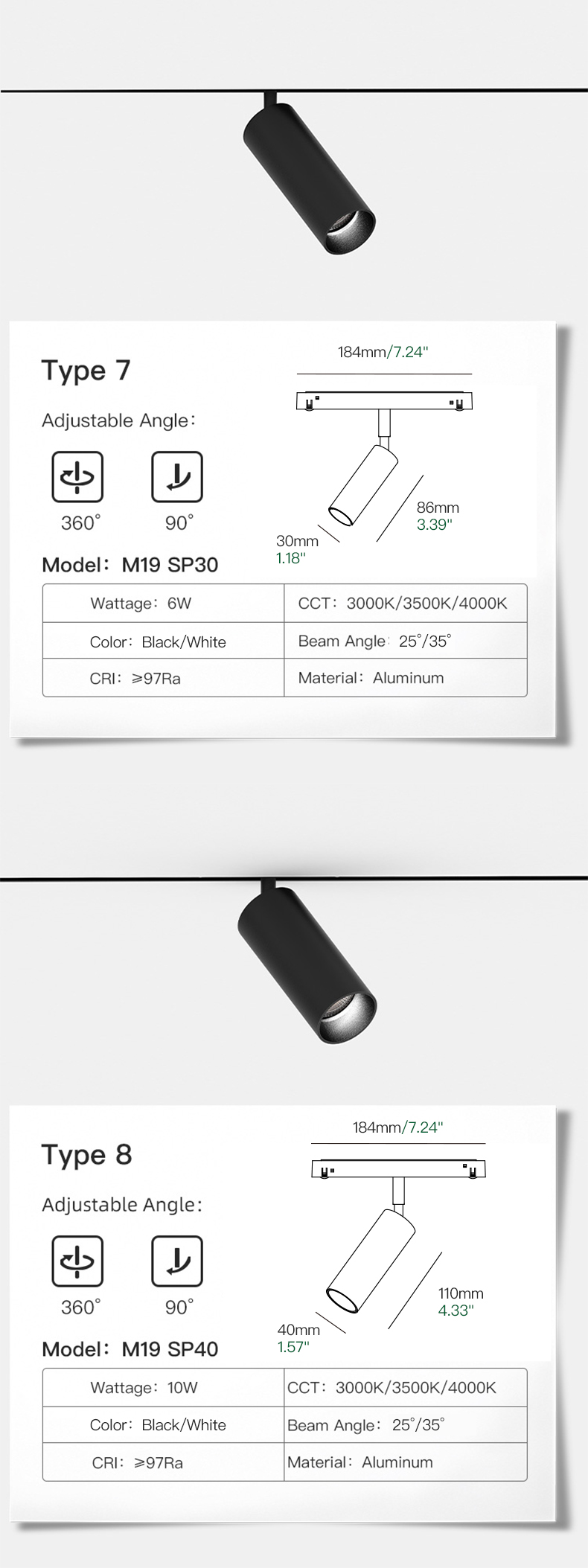

Product Application Image 5

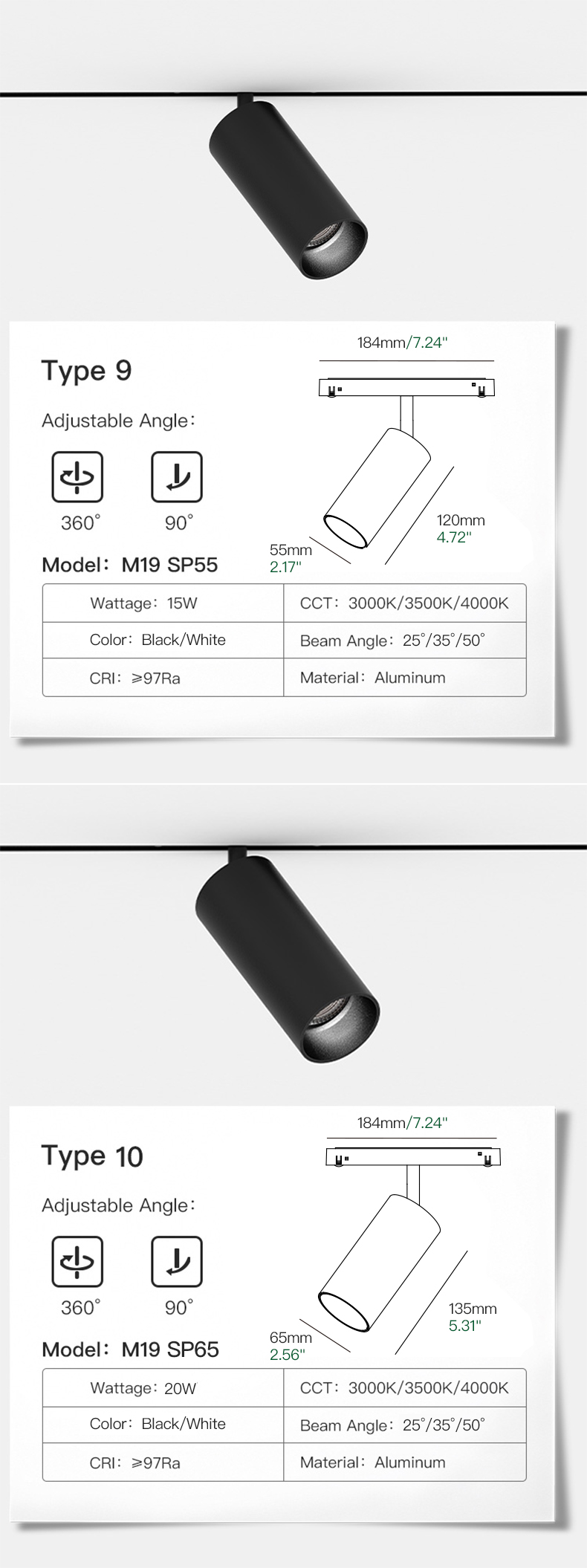

Product Application Image 6

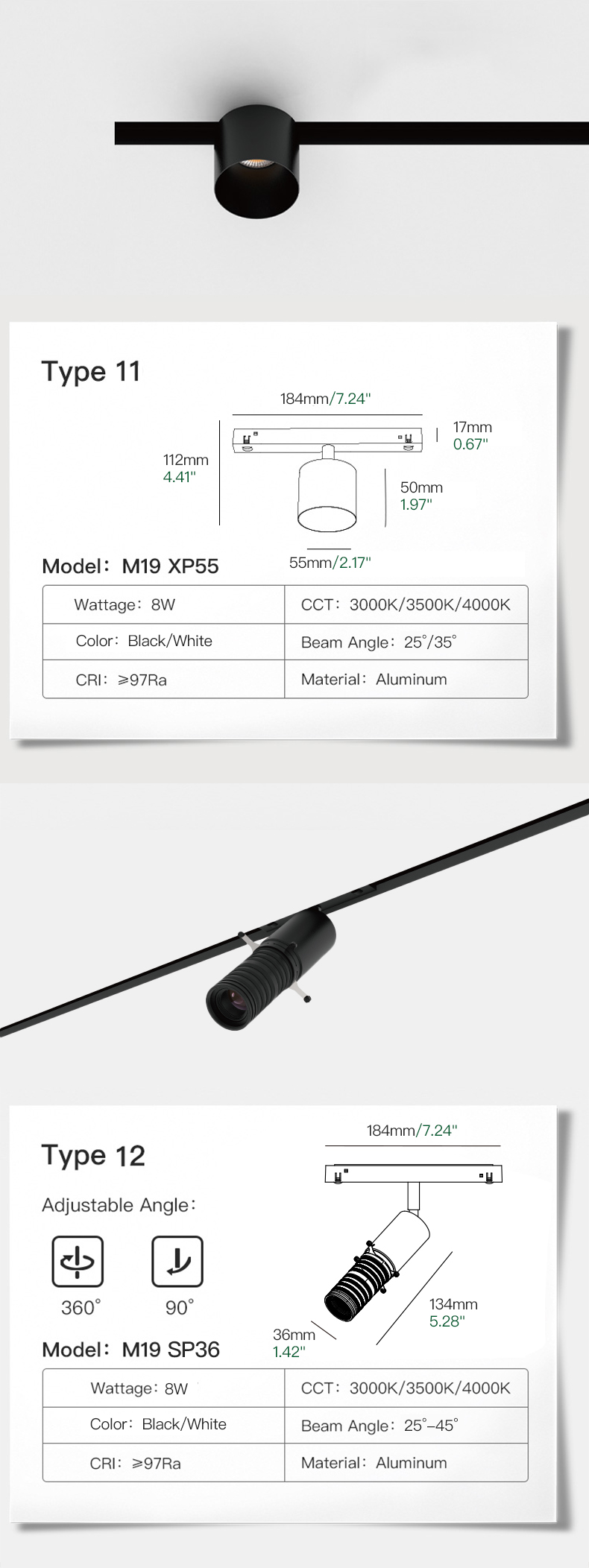

Product Application Image 7

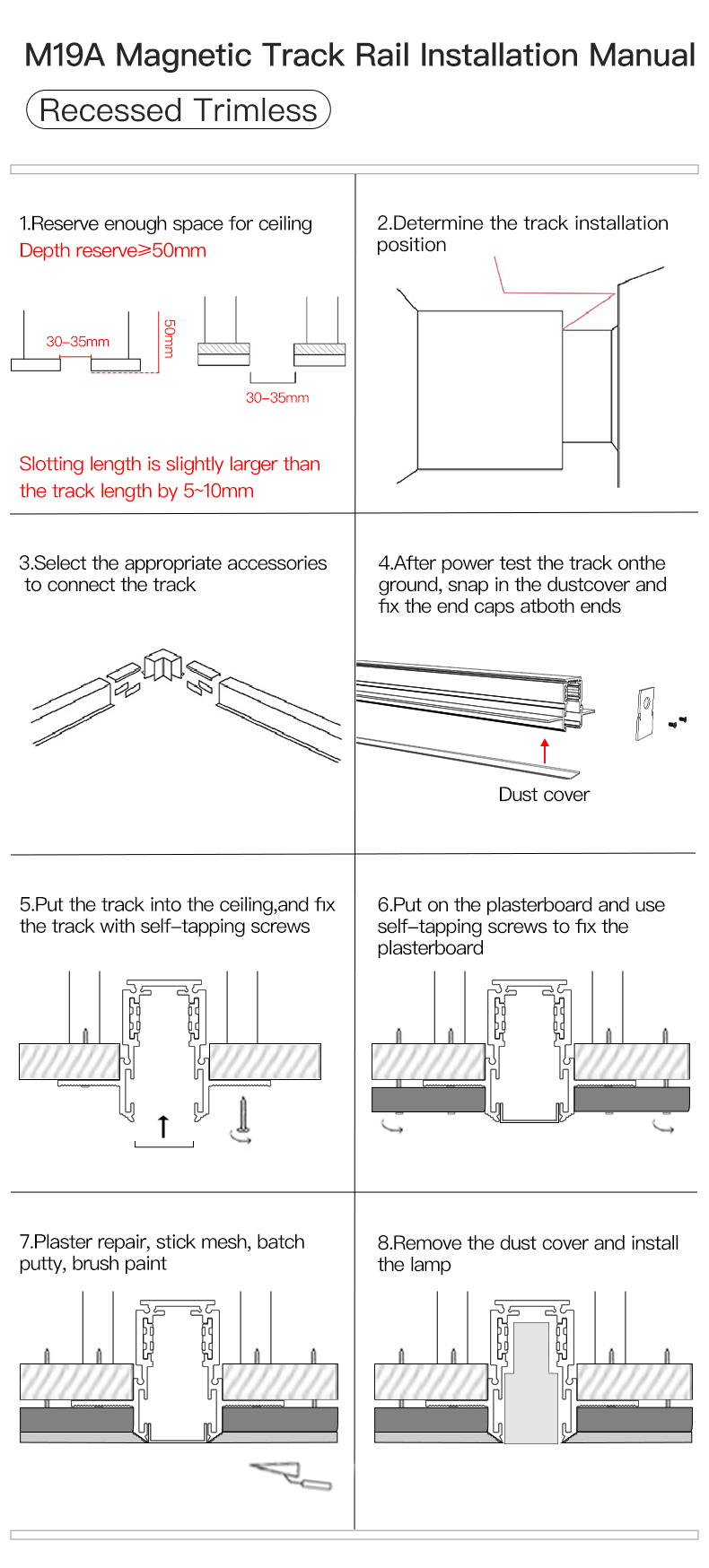

Product Application Image 8

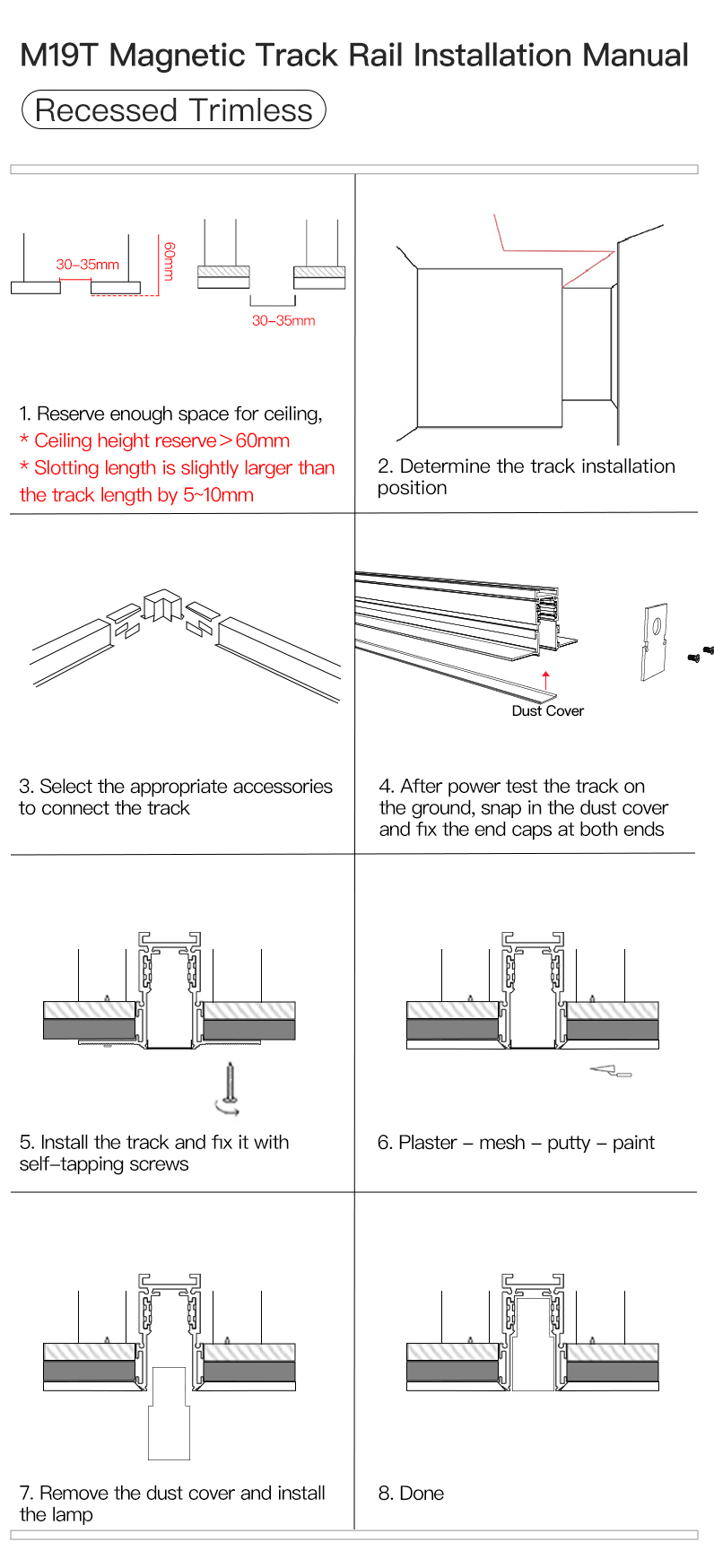

Product Application Image 9

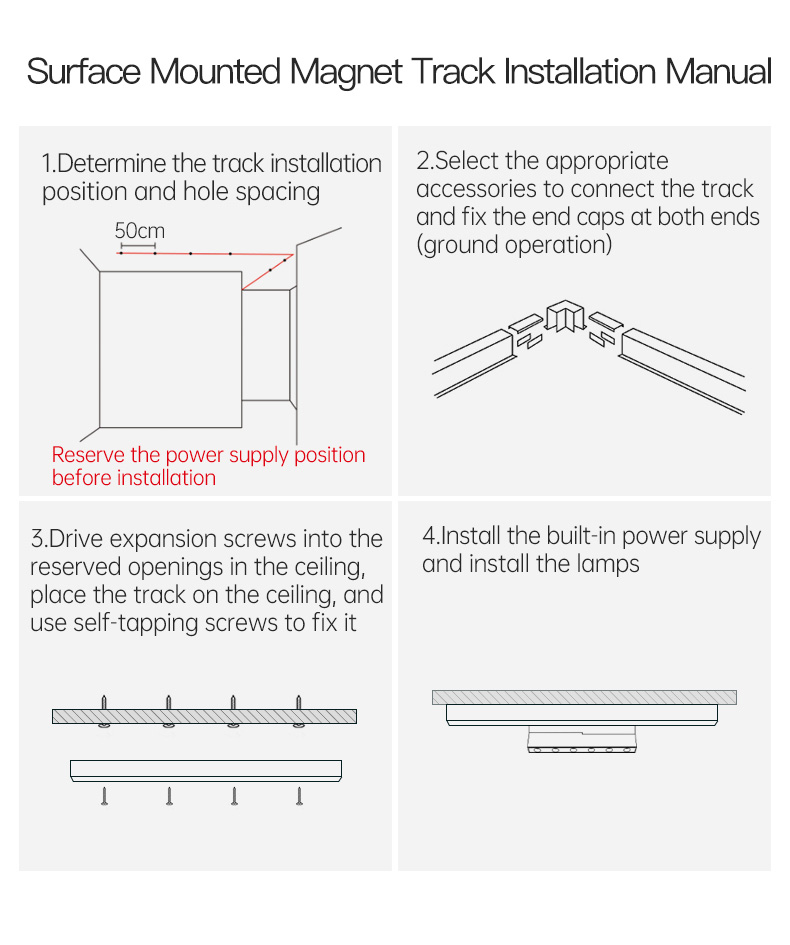

Product Application Image 10
Company Profile
Company Overview Image
Why Choose US
Why Choose Us Details
Exhibition
Exhibition Display 1
Exhibition Display 2
Exhibition Display 3
FAQ
FAQ Overview
Q What are the main advantages of the M19 Magnetic Track System?

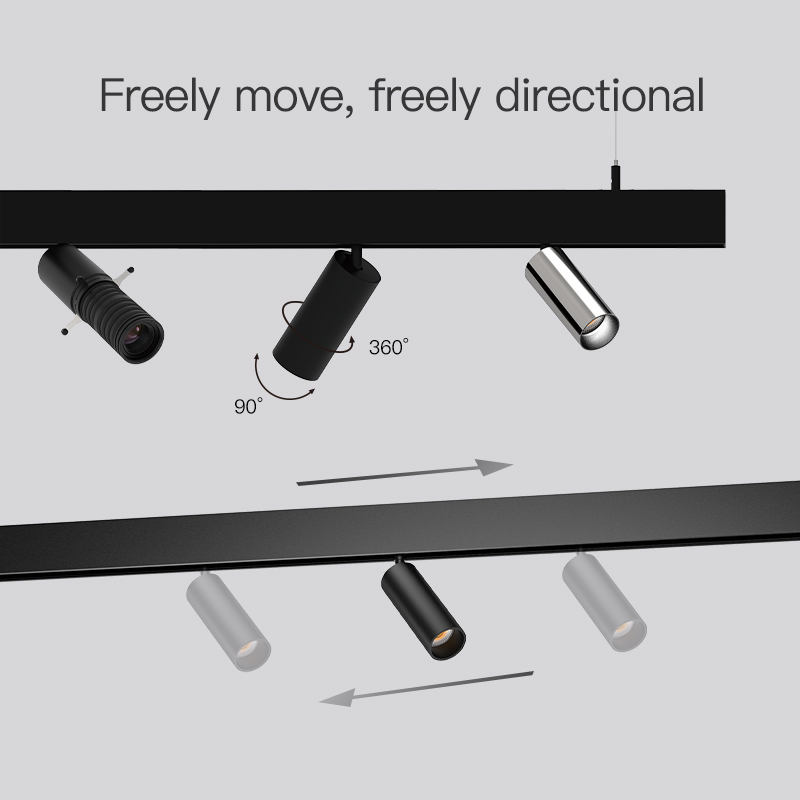

The M19 Magnetic Track System features a DC48V low-voltage design, ensuring high safety during installation and adjustments. It supports a variety of modular fixtures that can be easily positioned, moved, or hot-swapped along the track without tools.
Q Can the track be cut to custom lengths?
Yes. The aluminum tracks are available in standard 1.5m and 2m lengths, which can be cut on-site to fit the specific requirements of your ceiling layout.

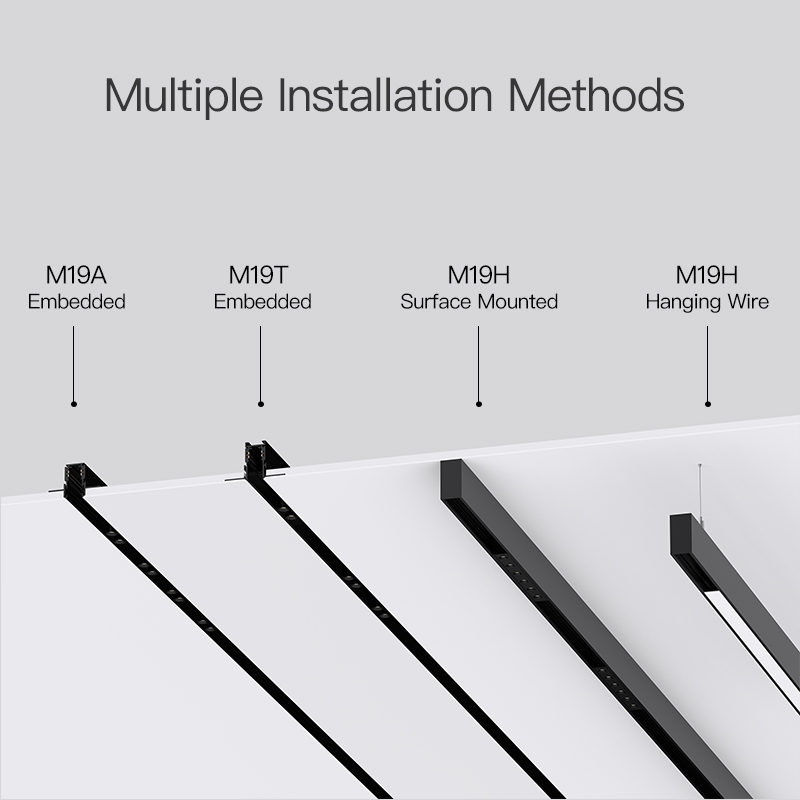

Q What installation methods are supported?
This system supports both Recessed and Surface-mounted installation types, giving you maximum flexibility for plasterboard ceilings, concrete slabs, or suspended installations.
Q How do I choose the correct power driver for the system?
You need to purchase a DC48V power driver separately. The system supports various control methods including standard ON/OFF, TRIAC/Phase-Cut dimming, and 0-10V dimming. Ensure the driver's total wattage capacity exceeds the combined wattage of all track lights by at least 20% for safety.
Q What light parameters are available for the LED modules?
Our compatible LED modules offer wattages ranging from 4W to 30W, with a high color rendering index (CRI) of 95Ra or 97Ra. Available correlated color temperatures (CCT) include Warm White (3000K), Neutral White (3500K), and Cool White (4000K) to suit different residential and commercial environments.
