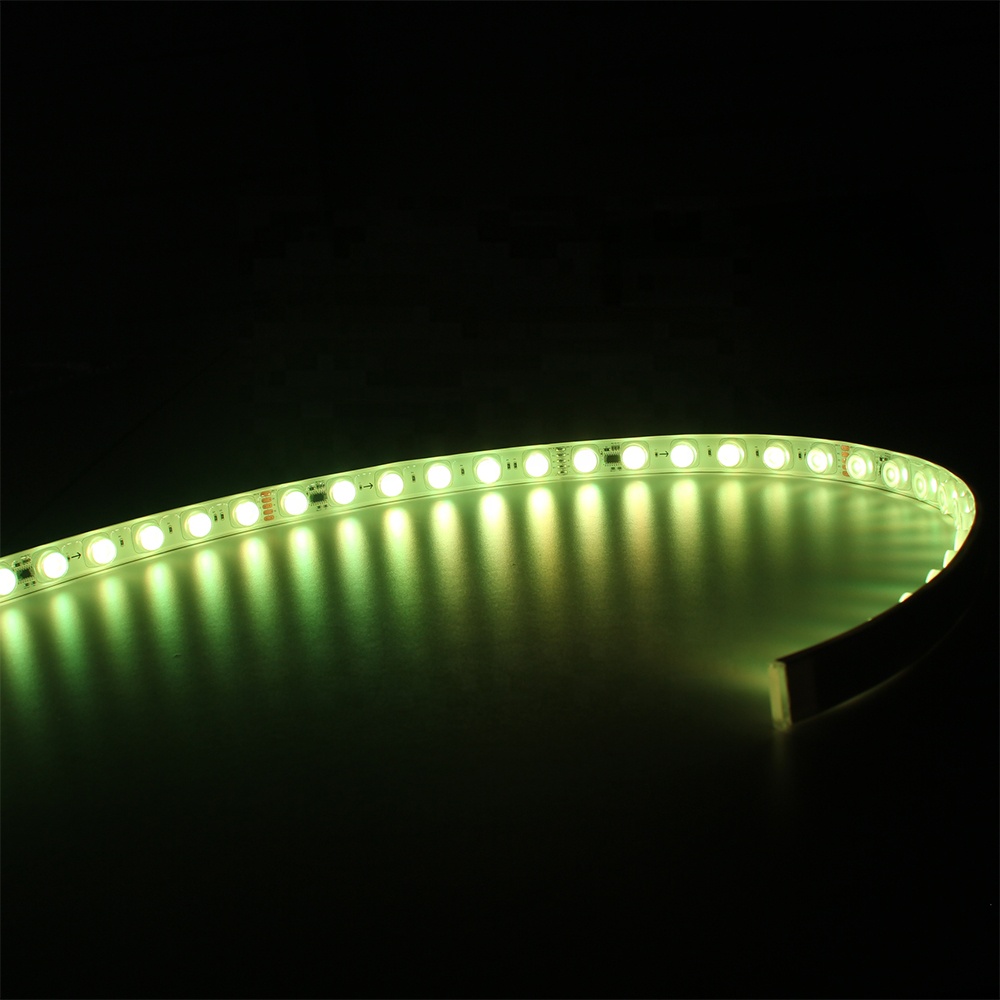

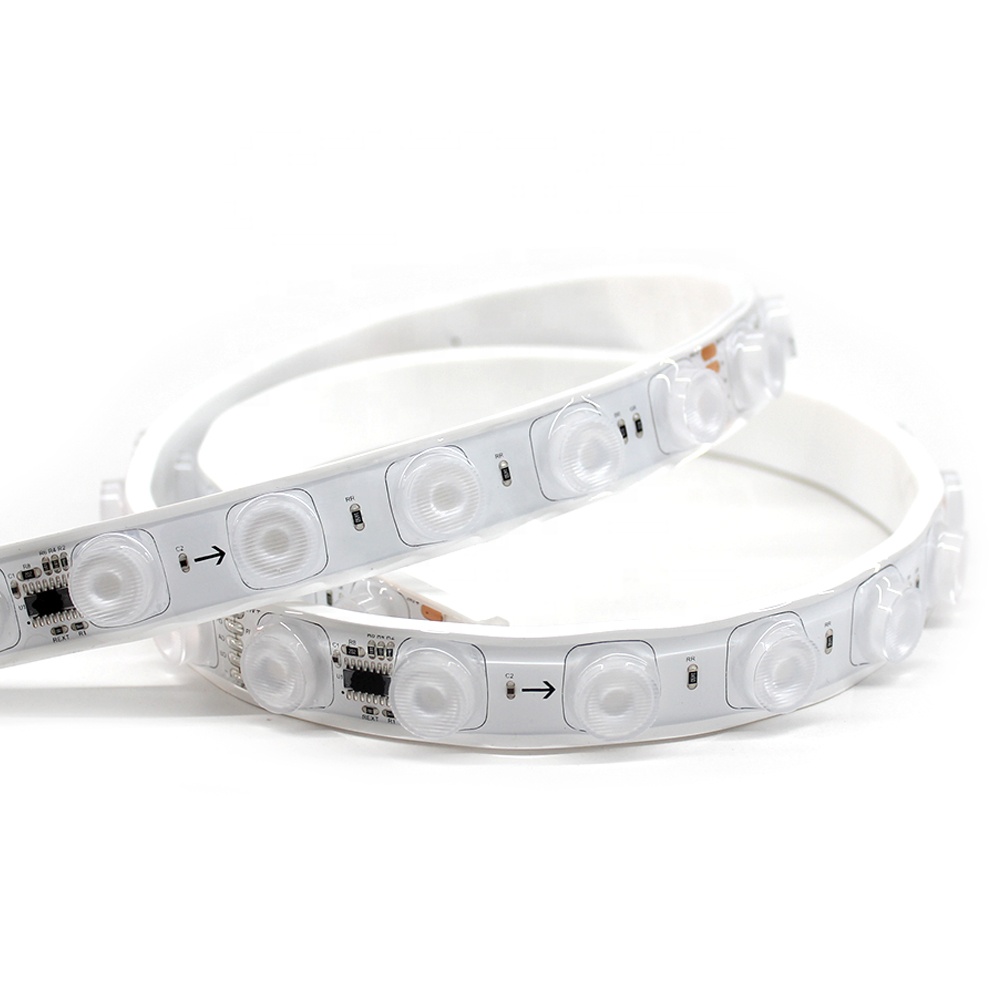

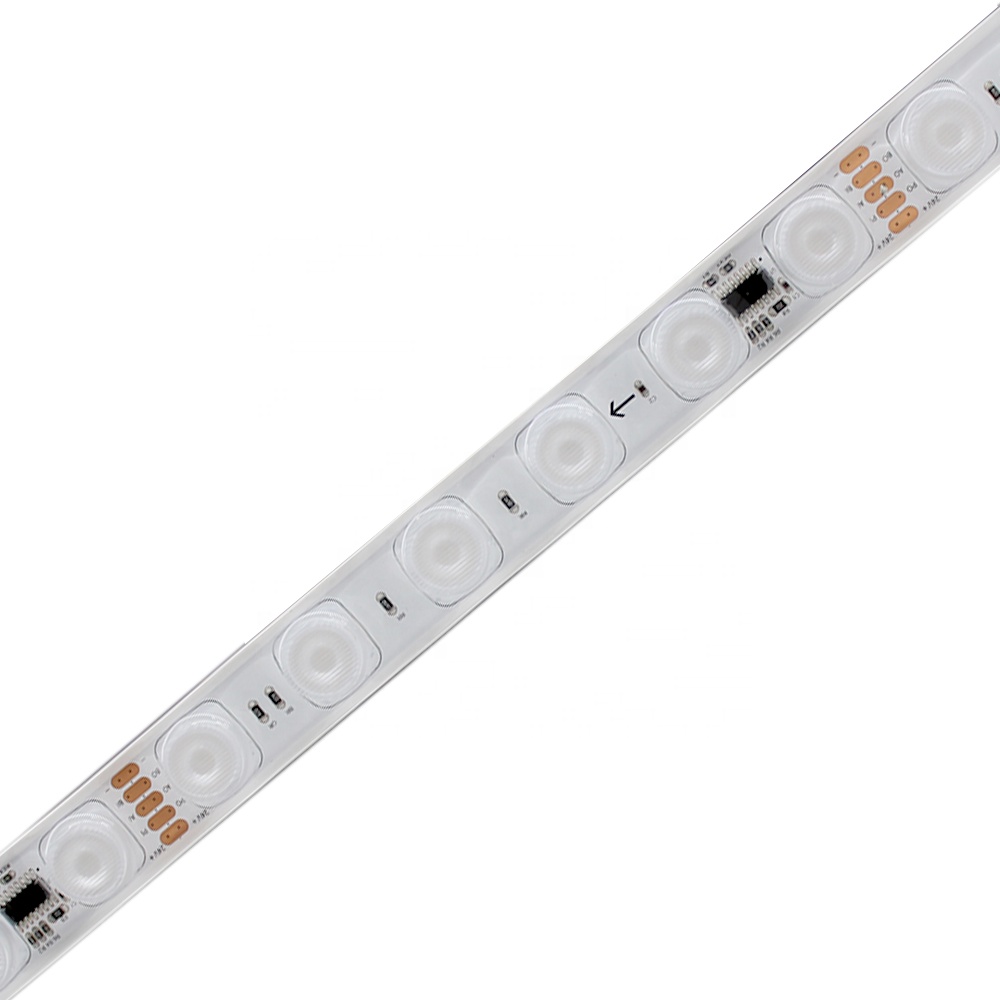

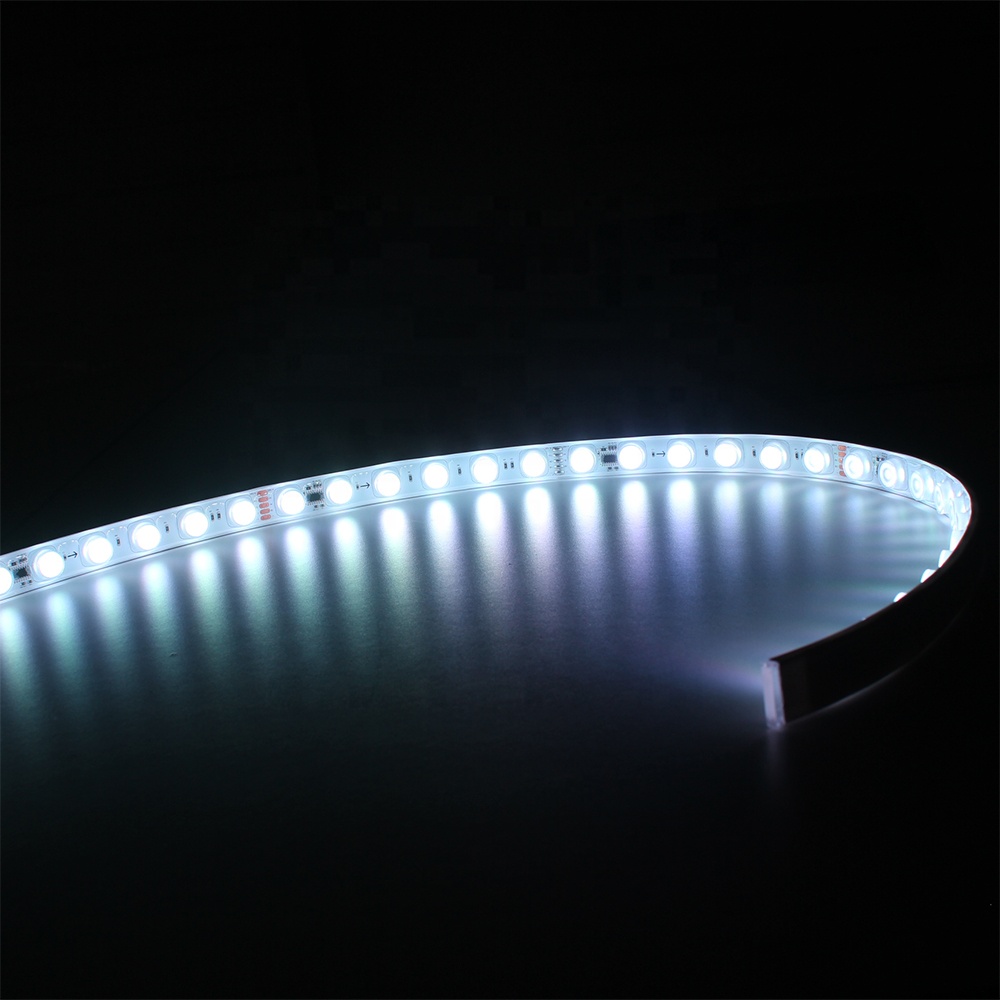

We applied TPU material for the flexible wall washer- anti-yellow, high temperature durable, corrosion resistance; weak acid and alkali resistance; good flexibility. PU glue potting, strong adhesion, good durability and high reliability. It can replace the traditional aluminum heavy wall washer or LED light bar due to its small size, light weight, flexible and easy to install. A variety of beam angles are available, suitable for different environments/locations. Low voltage (DC24V) for human safety, various colors available, including CCT, RGB, RGBW and digital running in the controlling of programmable DMX512.
Product Features
Digital running in the controlling of programmable DMX512.
High light effect, fast cooling and uniform light, longer life.

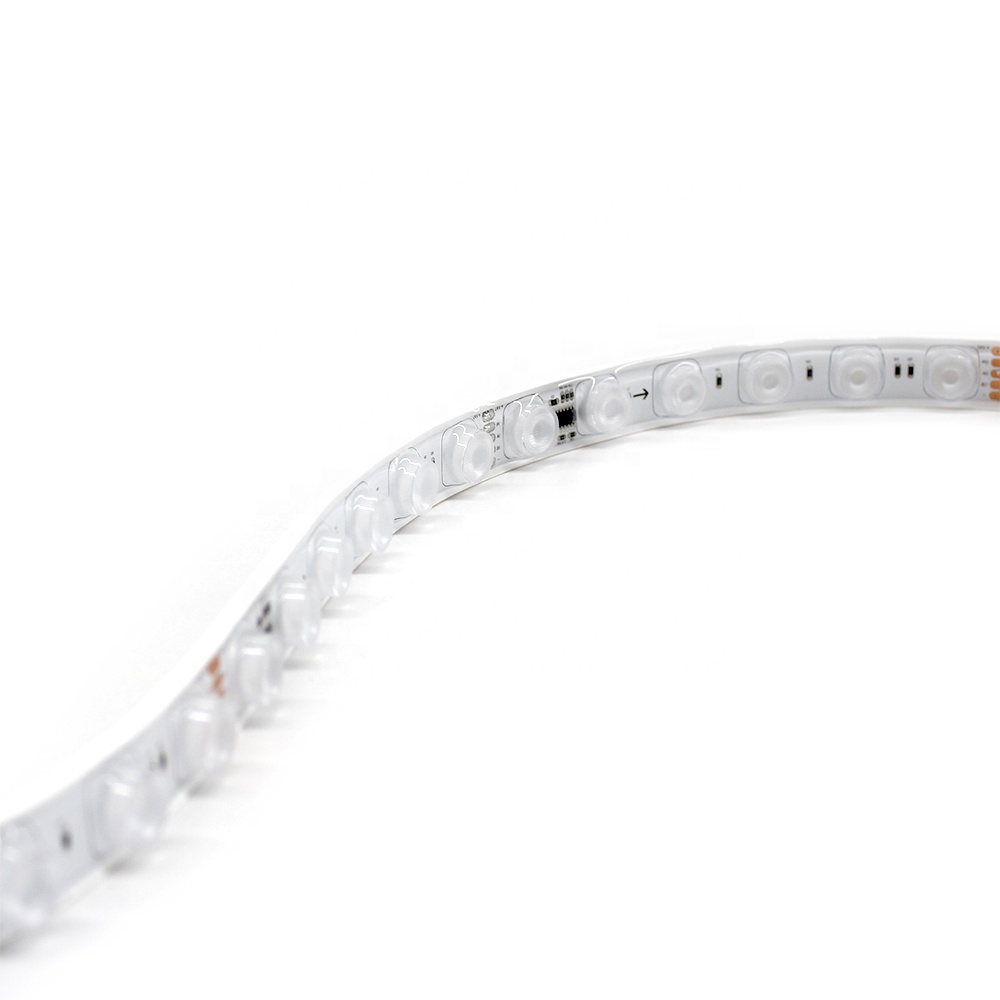

Flexible design is suitable for a variety of shapes of bend.
1. Clean the surface you intend to stick the flexible wall washer and peel off the backing strip off the adhesive tape.
2. Press and hold the light strip firmly against the surface.
3. Plug your wall washer into a compatible 24V DC power supply or dimmer.
4. Connect your power supply to a wall outlet, enjoy your beautiful LED flexible wall washer!
Product Parameters
Model No
RS-WW5050DMX-24V-36D-20-67
Series
Flexible Wall Washer
LED Type
SMD 5050
PCB Width
20MM
LED QTY
36 LEDs/m
Cut Length
166.66MM
Input Voltage
DC24V
Beam Angle
15°/15°-20°/20°/30°/60°/15°*45°
Wattage
12W/M
Waterproof Type
IP67
CRI(Ra)
/
Package
5M per Roll
Luminous Flux
520lm/M
Operating Temp
-20~+40
Luminous Efficiency
40lm/W
Certification
CE, RoHS
Color Temp
RGB
Warranty
3 Years
Product Showcase
Frequently Asked Questions
❓
What are the benefits of using TPU material for this flexible wall washer?
We use high-grade TPU material because it provides excellent anti-yellowing properties, durability under high temperatures, and high resistance to corrosion, weak acids, and alkalis, while maintaining superb flexibility.
❓
Can this flexible LED wall washer replace traditional aluminum models?
Yes, absolutely. Due to its lightweight design, compact dimensions, and flexible form, it is an efficient, space-saving, and easy-to-install alternative to heavy traditional aluminum wall washers.
❓
Is this flexible wall washer suitable for outdoor installations?

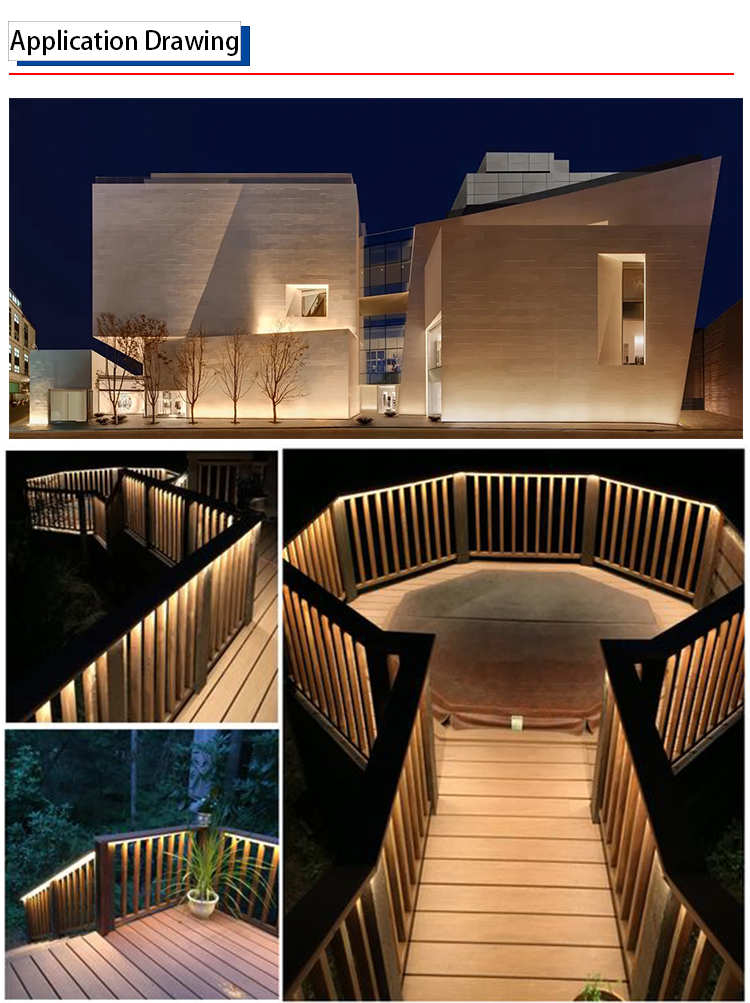

Yes, it features an IP67 dustproof and waterproof rating along with anti-UV protection, making it highly durable and ideal for outdoor structural lighting, advertising, and landscape decorations.
❓
What voltage does the light strip require and is it safe to use?
It operates on a low-voltage DC24V power supply, which ensures human safety during installation and everyday operation.
❓
Does it support programmable dynamic light shows?
Yes, it supports digital running control and effects when integrated with a programmable DMX512 controller. It supports CCT, RGB, and RGBW configuration options.
❓
What beam angles are available for this flexible wall washer?
We offer multiple optical configurations to accommodate various environments, including beam angles of 15°, 15°*45°, 20°, 30°, and 60°.
