180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear
180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear
180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear
180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear
180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear
1 / 5
180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear
180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear
180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear
180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear
180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear

180 LM/W IP40 CCT-Switchable DALI Dimmable LED Workshop Retail Store Linear Lighting OEM Retrofit Solution Flexible Linear

Send Inquiry

Product Description

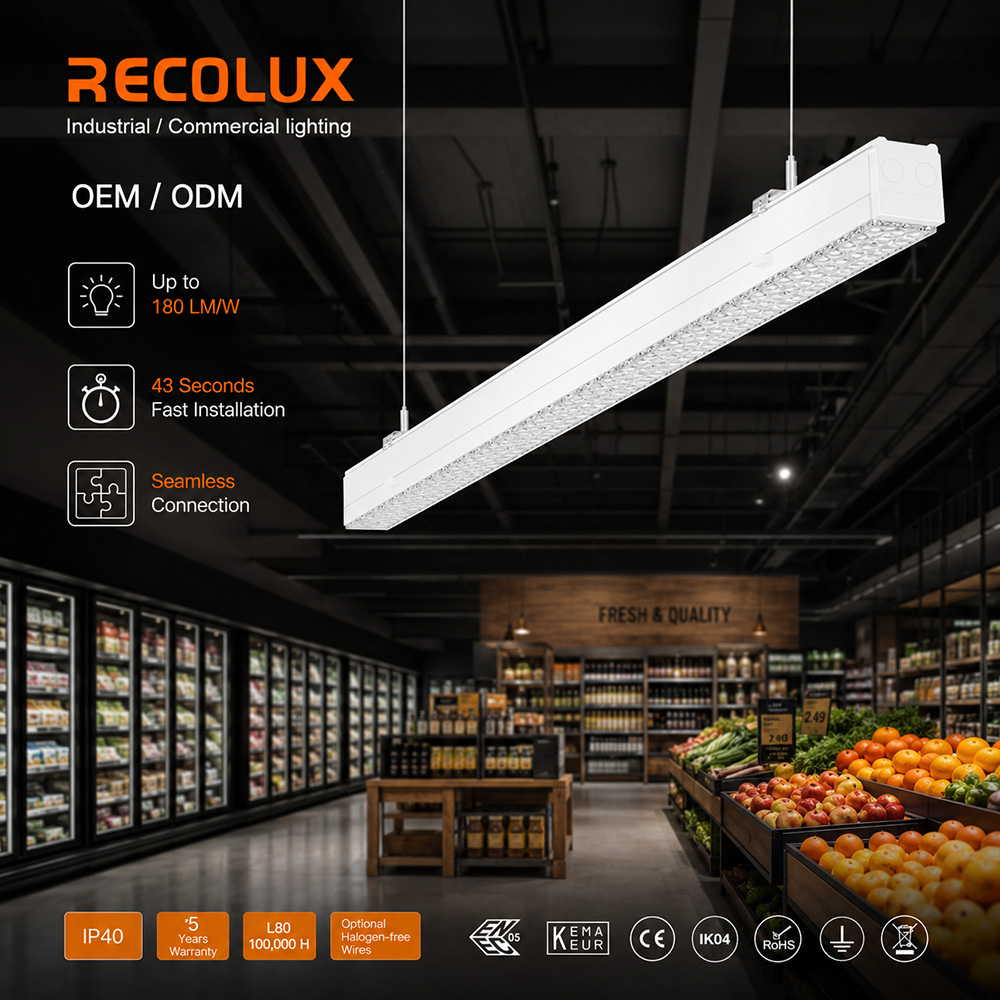

PRODUCT HIGHLIGHTS

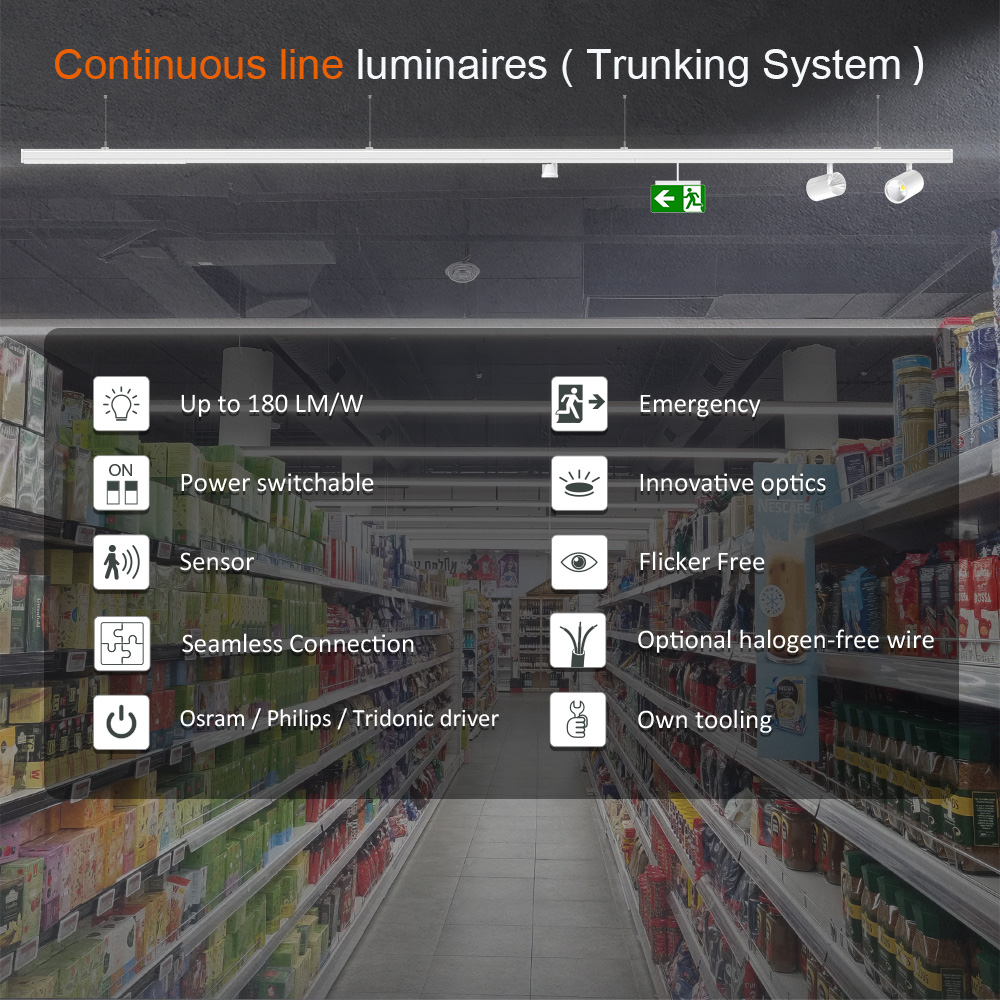

⚡ High Efficiency Up to 180LM/W high efficiency LED linear trunking system for energy-saving commercial and industrial lighting projects.
🛠️ Fast Installation Tool-free fast installation with modular click-in design, reducing labor cost and maintenance time.
🔗 Seamless Connection Seamless continuous lighting solution with flexible T/X/L connections for supermarkets, warehouses and retail applications.
⚙️ Flexible Options Multiple optics, beam angles, power switchable and optional CCT solutions to meet different project requirements.

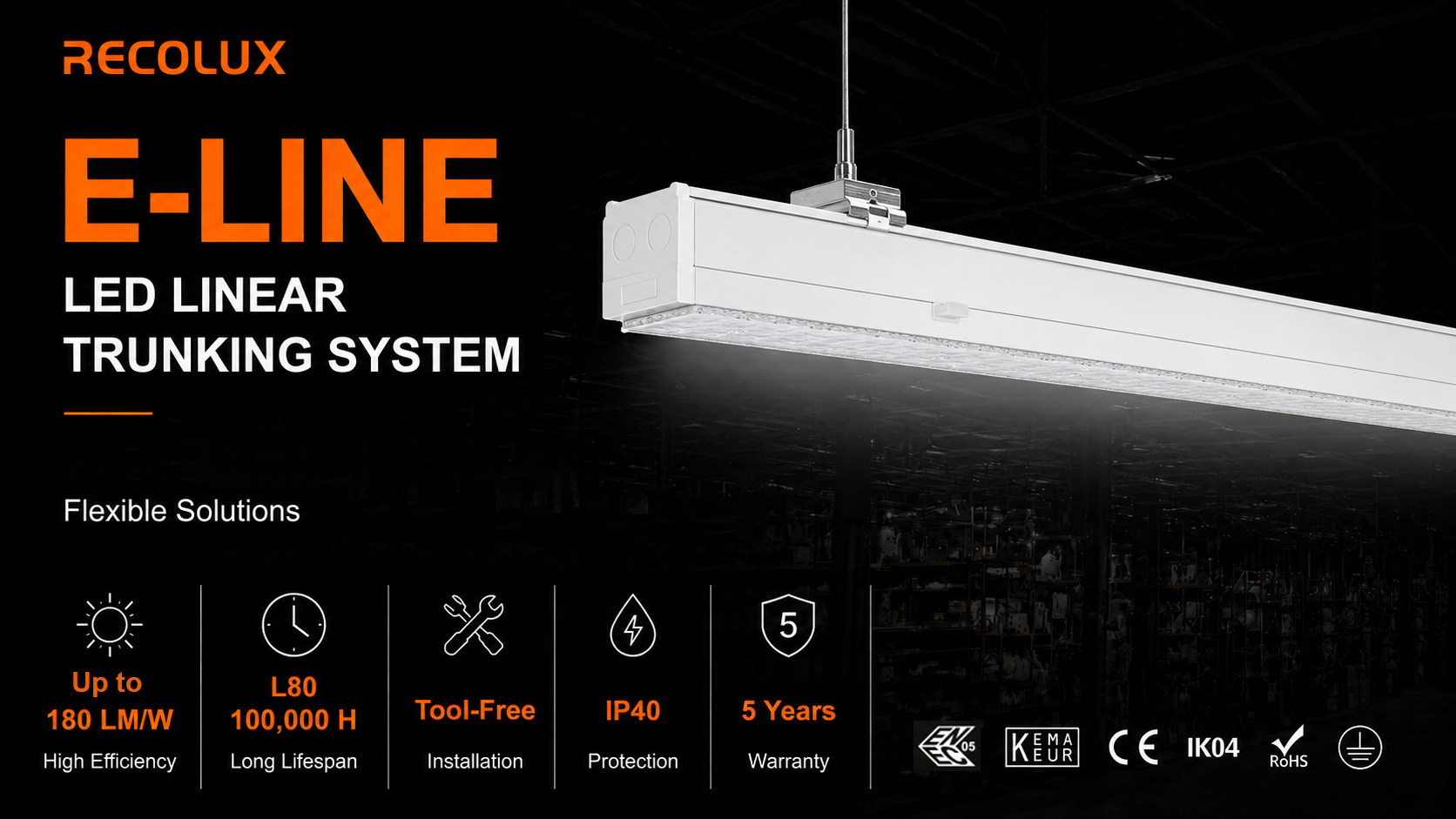

High Efficiency LED Linear Lighting Dimmable LED Workshop Lighting
TECHNICAL SPECIFICATIONS
Length Model No. Power LM/W Lumen (Max) CCT / CRI Driver Input Voltage Function
1438mm RSL5P-60-P2 58W-32W Switchable 185 10,500 3000K-6500K Ra>80 Philips AC220-240V ON/OFF
1438mm RSL5H-75-T1 75-26W Switchable 180 13,000 Tridonic AC220-240V ON/OFF
1438mm RSL5H-100-T1 100-78W Switchable 175 17,500 Tridonic AC220-240V ON/OFF
2012mm RSL7P-64-P2 64W-36W Switchable 180 11,500 3000K-6500K Ra>80 Philips AC220-240V ON/OFF
2012mm RSL7H-75-T1 73W-36W Switchable 180 13,200 Tridonic AC220-240V ON/OFF
2012mm RSL7H-100-T1 98-76W Switchable 180 17,500 Tridonic AC220-240V ON/OFF
2012mm RSL7P-138-T1 136-86W Switchable 175 24,000 Tridonic AC220-240V ON/OFF
PRODUCT DETAILS & APPLICATIONS

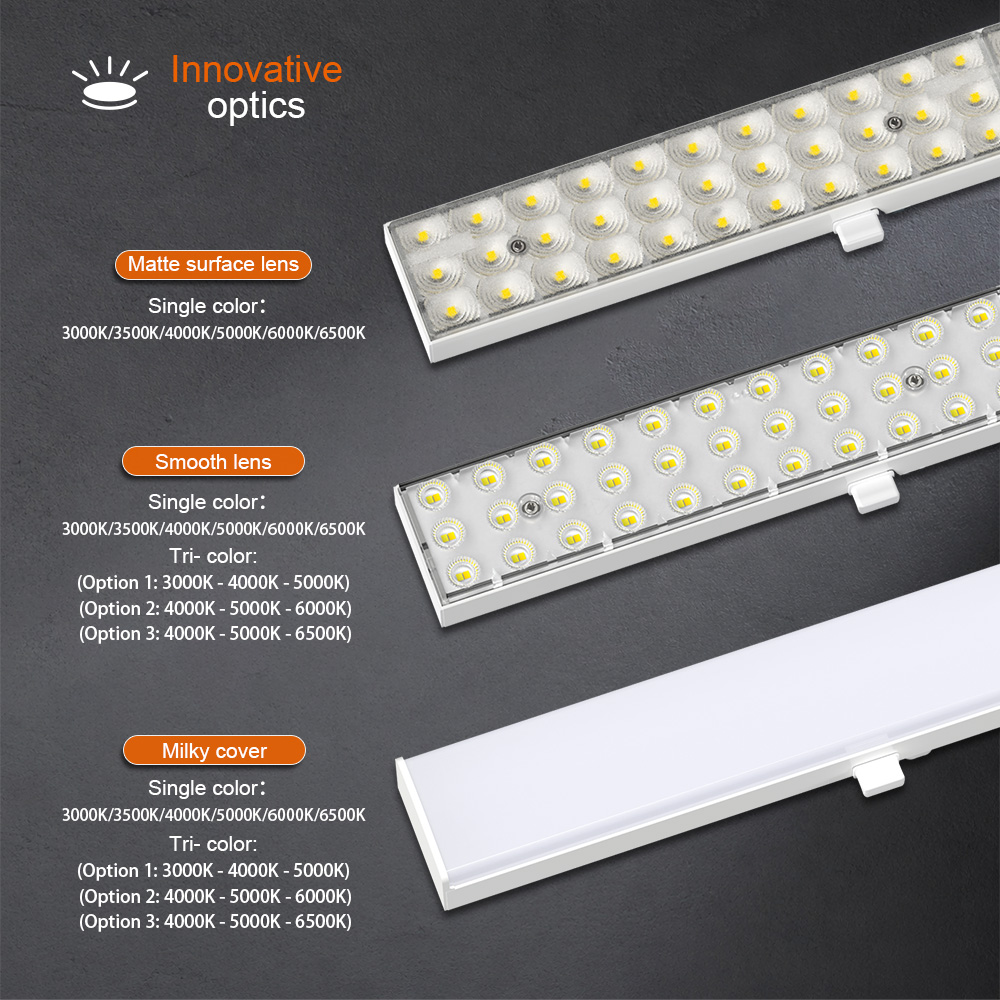

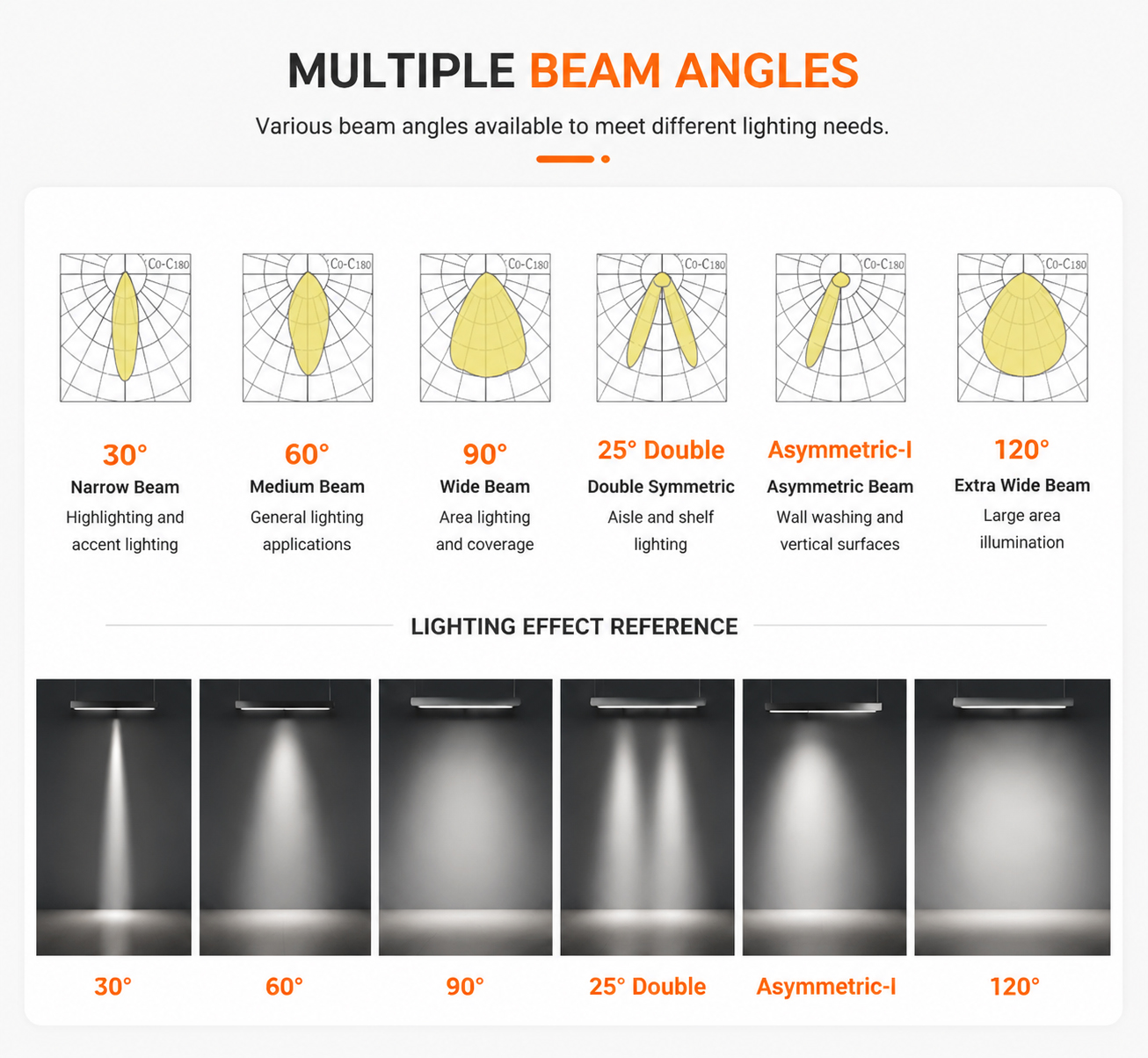

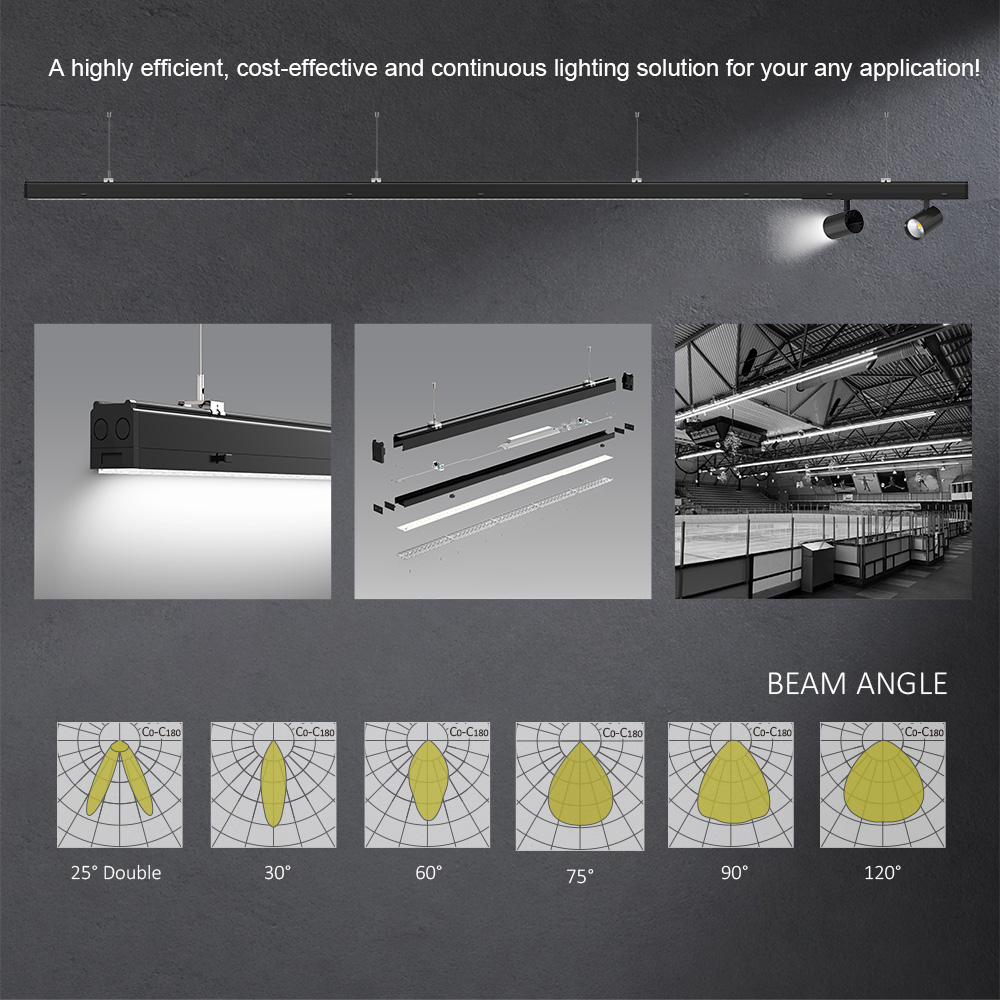

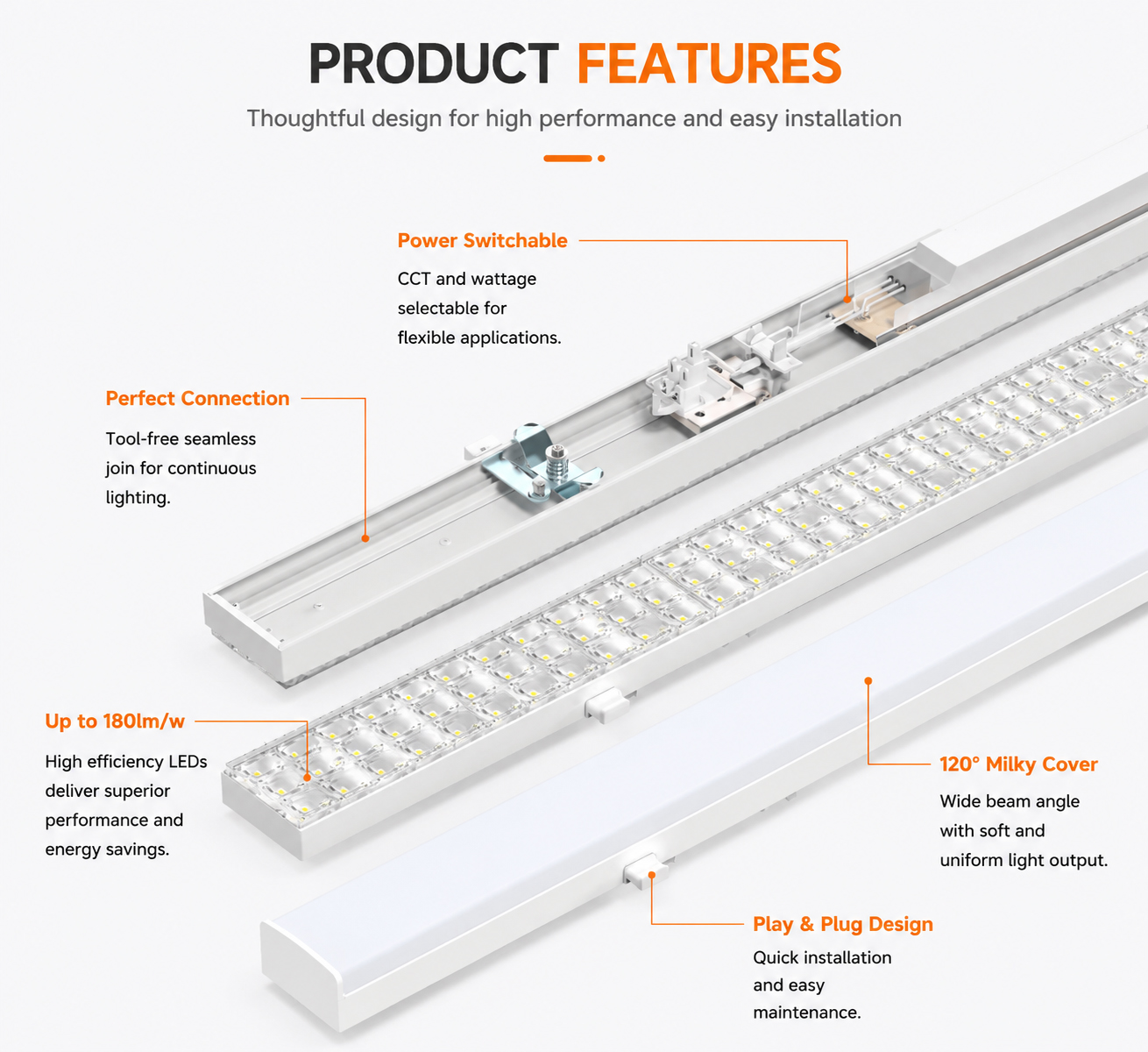

Linear Lighting Structure Optics and Beam Angles

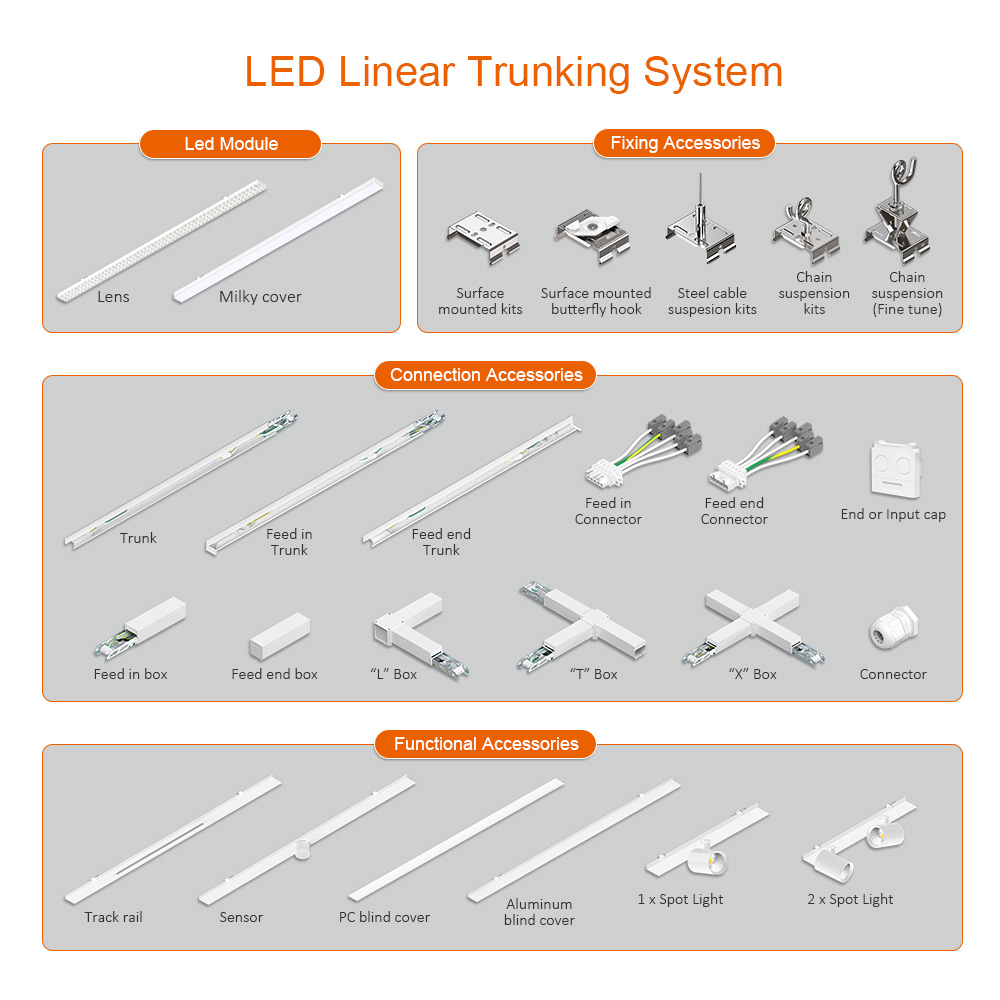

Installation Detail

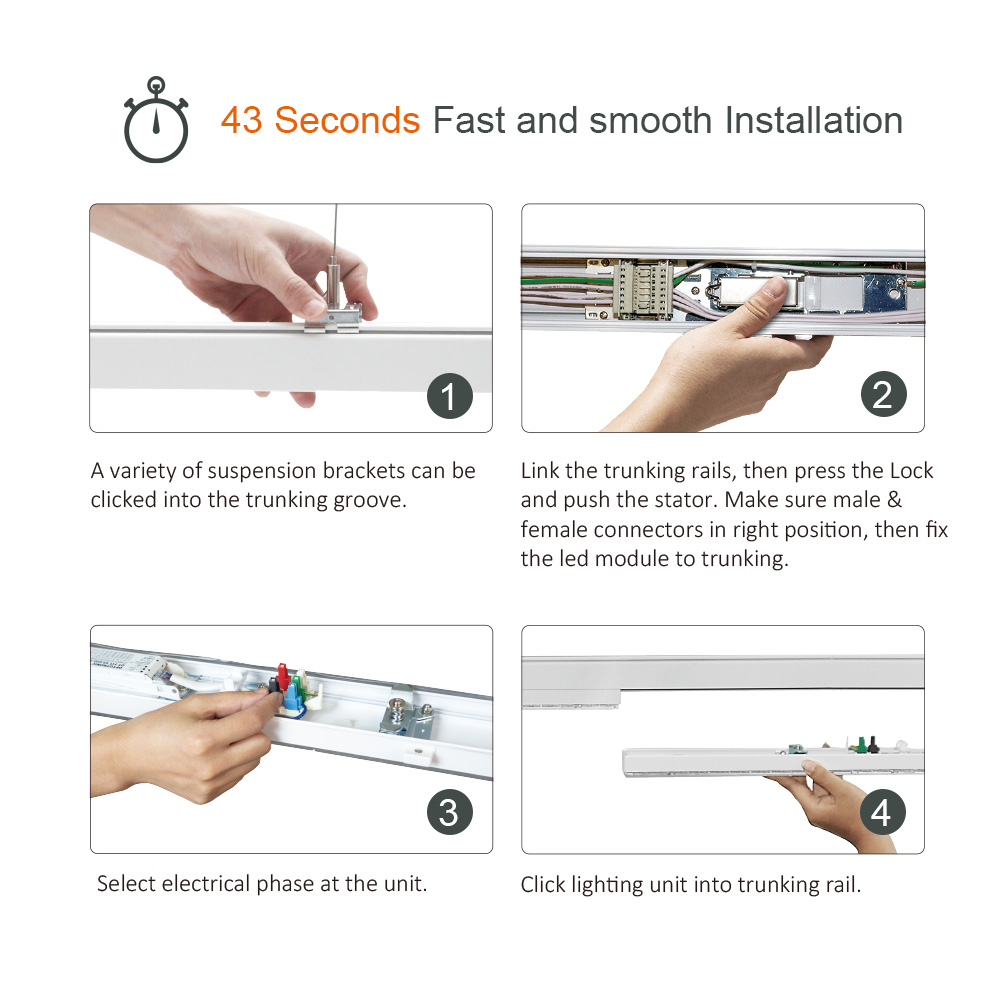

Connection Detail

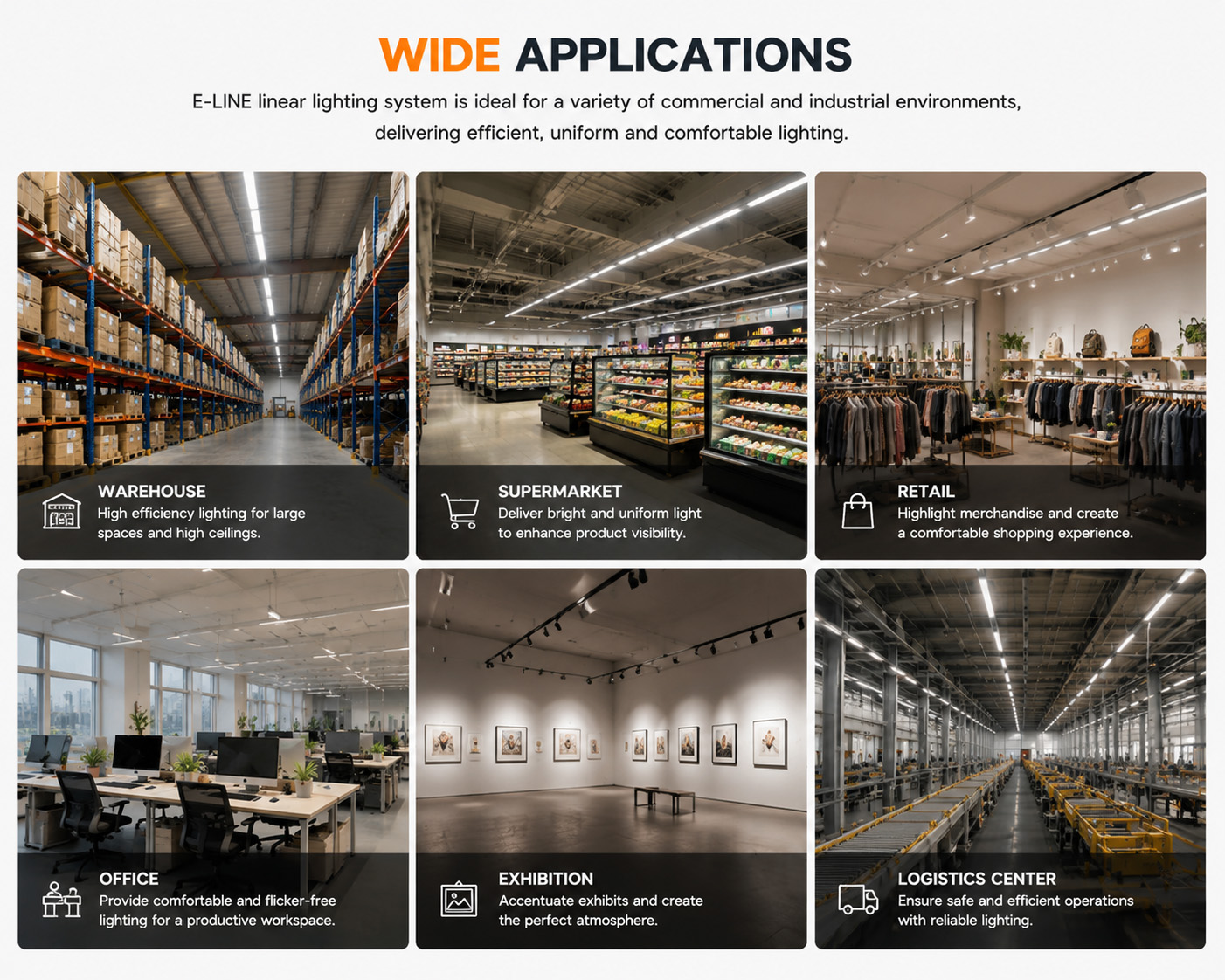

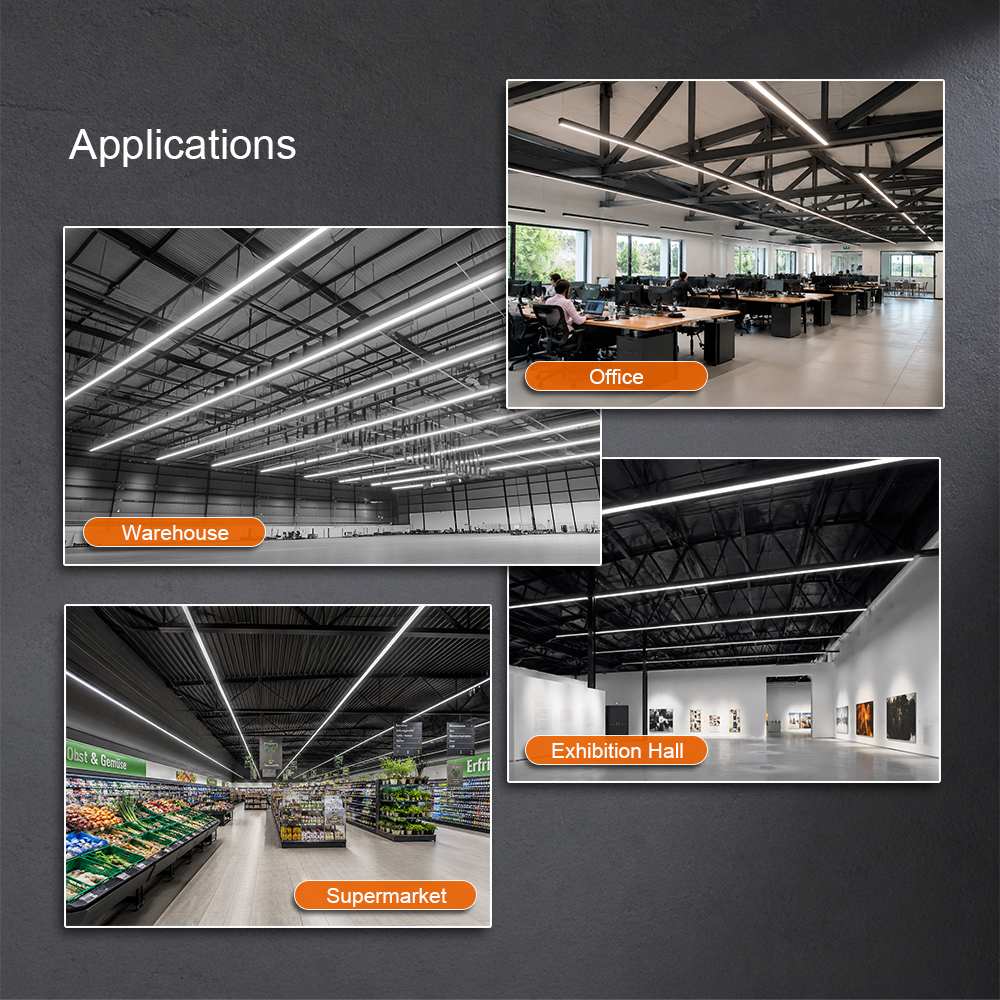

Application Scene
CUSTOMIZATION & QUALITY
Customization Capabilities

Why Choose Our Lighting Solutions?

  • Certified for Europe: 100% compliant with ENEC, CE, and RoHS standards, backed by a solid 5-year warranty.
  • Agile OEM/ODM Solutions: Experienced engineers transform your specific project requirements into tailored solutions rapidly.
  • Manufacturing Excellence: ISO-certified facility with advanced production lines ensures stability for orders.
  • Zero-Compromise Quality: A rigorous 3-stage QC process from raw material sourcing to pre-shipment inspection guarantees consistency.
FACTORY OVERVIEW
Company Overview
Competitive Advantages

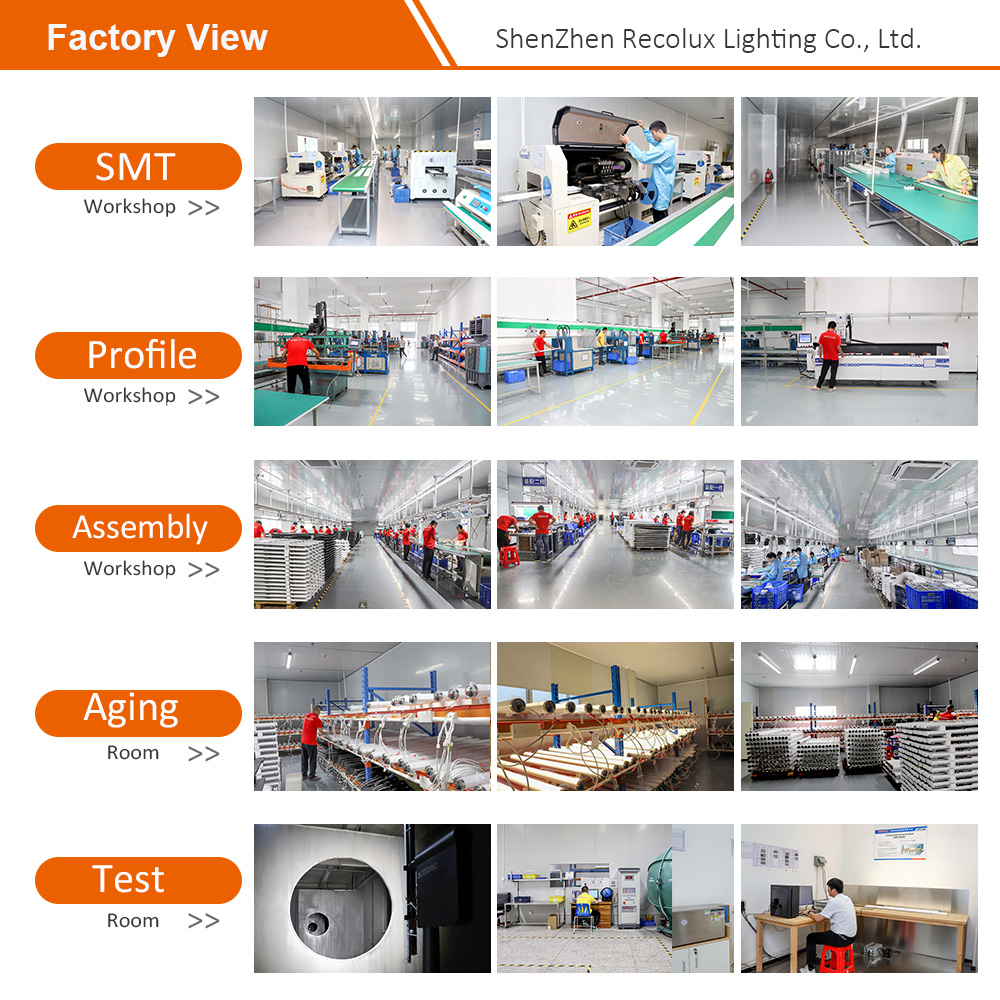

Factory Profile
Production Workflow
Certificates
FREQUENTLY ASKED QUESTIONS
Are you a manufacturer or a trading company?
We are a professional commercial lighting manufacturer integrating R&D, production, sales, and service. We have our own factory and production lines, and 100% of our products are exported overseas. By dealing directly with the factory, you get competitive pricing and direct technical support.
What international certifications do your LED lighting products have?
Our products carry major qualifications including: CE (LVD & EMC), RoHS, ENEC, HACCP, D-Mark, and more.
Do you offer OEM/ODM customization services?
Yes, we provide complete OEM/ODM services. We offer customized product solutions based on project requirements, from specific parameters to installation methods (surface mounted / suspended) and packaging.
What is the minimum order quantity (MOQ) and sample policy?
Sample orders are available (1-10 pcs) for quality evaluation. Bulk orders typically start from 10 pcs. For OEM custom orders, MOQ is determined by the complexity of customization.
What is your warranty period and process?
Our indoor LED linear luminaires typically come with a 5-year warranty. If a quality issue occurs, we provide a solution within 24 hours upon receiving photos or videos of the failure.
What is the lead time for orders?
Standard product orders up to 500 pcs usually take 15-35 days after payment. Larger orders and OEM customizations are negotiated based on complexity and material procurement.
